3-794623-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-794623-8

3-794623-8: Description08P MICRO MNL ASSY,R/A,SMT,LF; CategoryThe connector The connector; File Size207KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-794623-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-794623-8	-	-	View	Buy Now

3-794623-8 Overview

08P MICRO MNL ASSY,R/A,SMT,LF

3-794623-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZATION
Board mount options	PEG
body width	0.29 inch
subject depth	0.615 inch
body length	0.63 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	150 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	794617-8
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.6228 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	NYLON
Terminal pitch	2.9972 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	.6672 N
Base Number Matches	1

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-16-011506

27JUN2017

MATERIAL;

CONTACTS - BRASS.

HOUSING - UL 94V-0 RATED HIGH TEMP NYLON, COLOR; BLACK.

PLATING;

CONTACTS - 0.76µm MINIMUM GOLD OVER 2.54µm MINIMUM NICKEL

ON MATING AREA. 2.54µm TIN-LEAD MINIMUM OVER 2.54µm NICKEL

MINIMUM ON SOLDER TAILS.

DIMENSION APPLIES TO SOLDERTAIL SURFACES

AND STANDOFF SURFACES.

RECOMMENDED PC BOARD THICKNESS OF 1.57.

ALL SOLDERTAILS.

PLATING;

CONTACTS - 0.76µm MINIMUM GOLD OVER 2.54µm MINIMUM NICKEL

ON MATING AREA. 2.54µm MATTE TIN MINIMUM OVER 2.54µm NICKEL

MINIMUM ON SOLDER TAILS.

DIM X # 0.39

DIM W

1.30

HOUSING

CONTACT

7.37

10.88

-H-

STANDOFF SURFACES

CONTACT

11.16

15.63

3.00

DIM Z

EDGE OF BOARD

DIM Z

3.000

SCALE

6:1

2.92

SUPERSEDED BY 5-794623-4

SUPERSEDED BY 5-794623-2

SUPERSEDED BY 5-794623-0

10.10

5.48

SUPERSEDED BY 4-794623-8

10.10

SUPERSEDED BY 4-794623-6

SUPERSEDED BY 4-794623-4

SUPERSEDED BY 4-794623-2

SUPERSEDED BY 4-794623-0

4.60

MIN

4.60

MIN

SUPERSEDED BY 3-794623-8

SUPERSEDED BY 3-794623-6

3.5

MIN

5.0

MIN

1.5

3.00

6.5

MIN

5.65

MIN

DIM Y

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

MATERIAL

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM W

DWN

28.70

25.70

22.70

19.70

16.70

13.70

10.70

7.70

4.70

28.70

25.70

22.70

19.70

16.70

13.70

10.70

7.70

4.70

DIM Y

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM X

NO. OF

POSN.

5- 794623 -4

5- 794623 -2

5- 794623 -0

4- 794623 -8

4- 794623 -6

4- 794623 -4

4- 794623 -2

4- 794623 -0

3- 794623 -8

3- 794623 -6

3- 794623 -4

3- 794623 -2

2- 794623 -4

2- 794623 -2

2- 794623 -0

1- 794623 -8

1- 794623 -6

1- 794623 -4

1- 794623 -2

1- 794623 -0

794623 -8

794623 -6

794623 -4

794623 -2

PART NUMBER

TE Connectivity

FINISH

0.08

TYP

SUPERSEDED BY 3-794623-4

SUPERSEDED BY 3-794623-2

2.15

EDGE OF BOARD

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

28-JAN-2002

K. WHITAKER

CHK

28-JAN-2002

C. JONES

APVD

28-JAN-2002

C. JONES

PRODUCT SPEC

APPLICATION SPEC

NAME

4805 (3/13)

WEIGHT

SEE TABLE

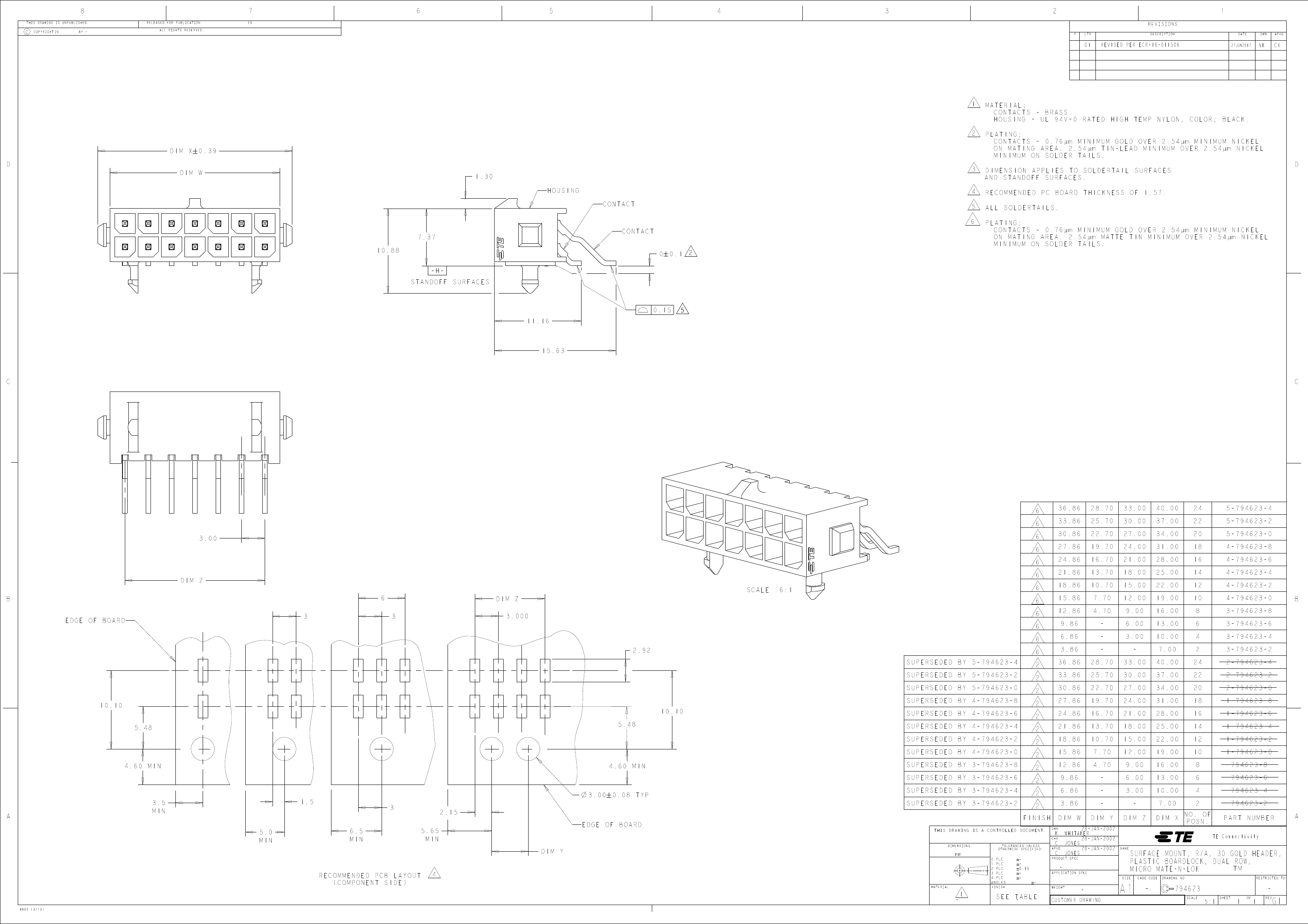

CUSTOMER DRAWING

SIZE

SURFACE MOUNT, R/A, 30 GOLD HEADER,

PLASTIC BOARDLOCK, DUAL ROW,

MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

RESTRICTED TO

794623

SCALE

5:1

SHEET

REV
