PIS761-2D39A1-V datasheet, PDF

Datasheet> All Categories > The connector> socket> PIS761-2D39A1-V

PIS761-2D39A1-V: DescriptionIC Socket, PGA761, 761 Contact(s); CategoryThe connector socket; File Size35KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

PIS761-2D39A1-V Overview

IC Socket, PGA761, 761 Contact(s)

PIS761-2D39A1-V Parametric

Parameter Name	Attribute value
Objectid	1480604646
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Device slot type	IC SOCKET
Type of equipment used	PGA761
Shell material	THERMOPLASTIC
Number of contacts	761

Preview

Download Datasheet

View All

PIM & PIS Series

IPGA Sockets

PIM320-7D37B5-V

PIS296-7A37A3-V

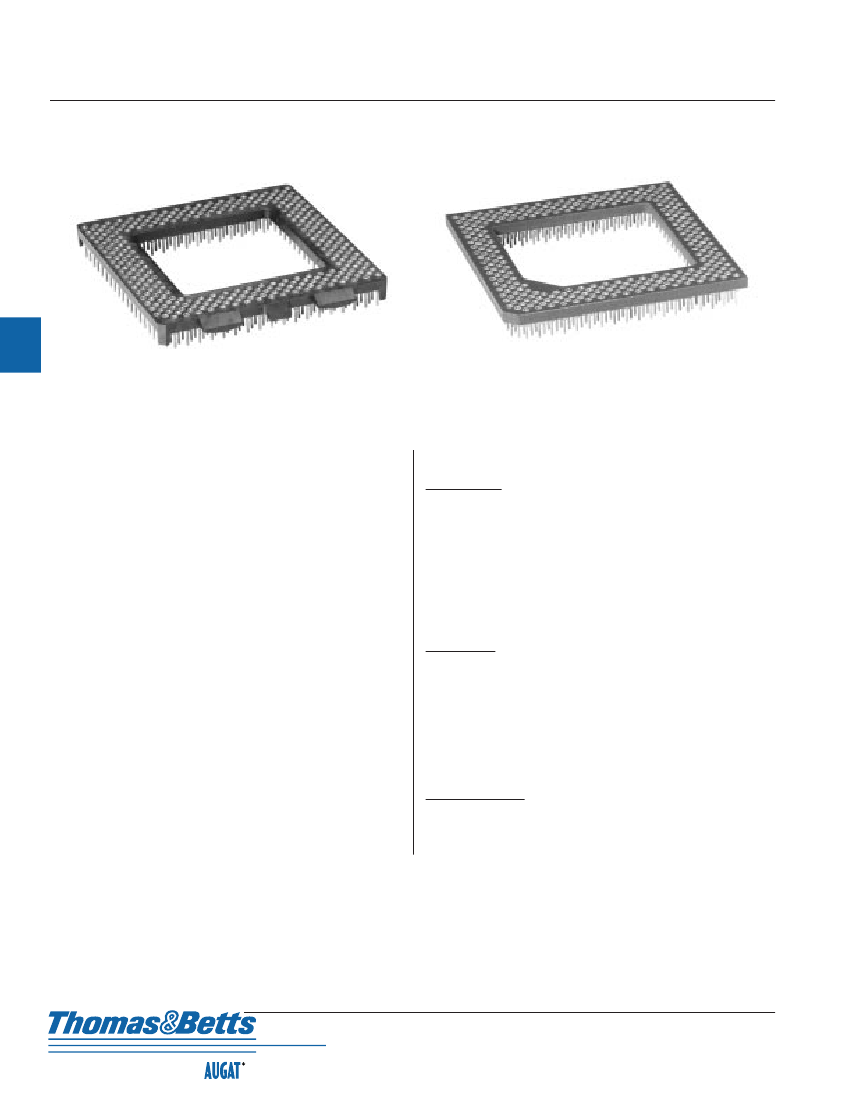

FEATURES:

• The socket includes the Augat SUPERLIF low insertion force

37 grams (1.3 oz.) contact

• Non-wicking closed bottom, precision sleeve protects 100% against flux

and solder contamination

• Many footprint options available

• Custom design capabilities

• Available in molded plastic (PIM) and glass epoxy (PIS) insulators

• Integrally molded (PIM) heatsink mounting tabs available on some

products

• High temperature insulators allow the sockets to be soldered with

vaporphase and infrared reflow soldering process

™

PERFORMANCE SPECIFICATIONS:

MECHANICAL

Vibration ........................ Passed MIL-STD-1344, Method 2005,

Condition V, D, 11.6 G’s (RMS)

Shock .............................. Passed MIL-STD-1344, Method 2004,

Condition C, 100 G’s

Durability ...................... Passed MIL-STD-1344, Method 2016, 50 cycles

Solderability .................. Passed MIL-STD-202F, Method 208

Insertion Force .............. 37 Grams (1.3 oz.) average with a .018" (0,46)

dia. polished steel pin

Withdrawal Force .......... 15 Grams (.52 oz.) average with a .018" (0,46)

dia. polished steel pin

ELECTRICAL

Contact Resistance ........ 10 Milliohms

Contact Rating .............. 3 Amps

Capacitance .................... 1.0 pF per MIL-STD-202, Method 305

(contact to contact)

Insulation Resistance .... 5,000 Megohms min. @ 500 VDC per

MIL-STD-1344, Method 3003.1

Dielectric Withstanding

Voltage ...................... 1,000 Volts RMS per MIL-STD-1344,

Method 3001.1

ENVIRONMENTAL

Humidity ........................ Passed MIL-STD-1344, Method 1002, Type II

Operation Temperature .. Gold inner contact -55°C to +125°C

Tin/lead inner contact -55°C to +105°C

Thermal Shock .............. Passed MIL-STD-1344, Method 1003.1, Cond. A

MATERIAL SPECIFICATIONS:

Insulator ........................ Thermoplastic polyester or glass epoxy,

UL rated 94V-0

Sleeve ............................ Machined brass/formed copper

Contact .......................... Beryllium copper

Sleeve Plating ................ See Table 1

Contact Plating .............. See Table 1

Quality & Innovation From The

Product Group

Thomas & Betts

1555 Lynnfield Road

Memphis, TN 38119

(901) 682-8221 FAX (901) 537-8805
