5-794681-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5-794681-2

Preview

5-794681-2: Description22P MICRO MNL ASSY,VRT,THRU,LF; CategoryThe connector The connector; File Size210KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-794681-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-794681-2	-	-	View	Buy Now

5-794681-2 Overview

22P MICRO MNL ASSY,VRT,THRU,LF

5-794681-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	22P MICRO MNL ASSY,VRT,THRU,LF
Board mount options	SPLIT BOARD LOCK
body width	0.27 inch
subject depth	0.364 inch
body length	1.457 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	75 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.125 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0
Evacuation force-minimum value	.695 N

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

-

3

2

REVISIONS

1

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT 20

6.86

3.00

HOUSING

F1

REVISED PER ECR-16-011494

27JUN2017

NK

CX

D

CONTACT

9.24

3.18

3.00

DIM Z

C

2

HOLDDOWN

SECTION

Z-Z

3 DIMENSIONAL MODEL

4

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM A

DWN

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

-

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

-

DIM Z

37.30

34.30

31.30

28.30

25.30

22.30

19.30

16.30

13.30

10.30

7.30

4.30

37.30

34.30

31.30

28.30

25.30

22.30

19.30

16.30

13.30

10.30

7.30

4.30

DIM Y

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM X

24

22

20

18

16

14

12

10

8

6

4

2

24

22

20

18

16

14

12

10

8

6

4

2

NO. OF

POSN.

5-794681-4

5-794681-2

5-794681-0

4-794681-8

4-794681-6

4-794681-4

4-794681-2

4-794681-0

3-794681-8

3-794681-6

3-794681-4

3-794681-2

2-794681-4

2-794681-2

2-794681-0

1-794681-8

1-794681-6

1-794681-4

1-794681-2

1-794681-0

794681-8

794681-6

794681-4

794681-2

PART NUMBER

TE Connectivity

C

CIRCUIT NO.1

DIM A

RETENTION FEATURE LOCATED

ON END CONTACTS ONLY

4 PLC REF

2

4

8.67

2.13 0.13

EDGE OF BOARD

1.50 0.13

3.00 0.13

TYP

3.00 0.13

SUPERSEDED BY 5-794681-4

SUPERSEDED BY 5-794681-2

SUPERSEDED BY 5-794681-0

SUPERSEDED BY 4-794681-8

2.41 0.08

2PLC

2.2 MIN

1

DIM X

REF

4

1

B

SUPERSEDED BY 4-794681-6

SUPERSEDED BY 4-794681-4

1.02

TYP

+0.20

0

EDGE OF BOARD

2.0 MIN

SUPERSEDED BY 4-794681-2

SUPERSEDED BY 4-794681-0

SUPERSEDED BY 3-794681-8

3

MATERIAL: HOUSING - NYLON, UL 94V-0, BLACK.

CONTACT - BRASS.

0.00038 MINIMUM GOLD OVER 0.00254

MINIMUM NICKEL ON MATING AREA. 0.00254

TIN-LEAD MINIMUM OVER 0.00254 NICKEL

MINIMUM ON SOLDER TAILS.

HOLDDOWNS: PHOSPHOE BRONZE, .00254 TIN-LEAD.

MAXIMUM INSERTION 30 LBS.

RECOMMENDED BOARD THICKNESS 1.57.

MATERIAL: HOUSING - NYLON, UL 94V-0, BLACK.

CONTACT - BRASS.

0.00038 MINIMUM GOLD OVER 0.00254

MINIMUM NICKEL ON MATING AREA. 0.00254

MATTE TIN MINIMUM OVER 0.00254 NICKEL

MINIMUM ON SOLDER TAILS.

HOLDDOWNS: PHOSPHOE BRONZE, .00254 MATTE TIN.

DIM Y

RECOMMENDED MOUNTING HOLE PATTERN

SCALE 5:1

SUPERSEDED BY 3-794681-6

SUPERSEDED BY 3-794681-4

SUPERSEDED BY 3-794681-2

2

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

3

4

mm[INCHES]

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.20 [.008]

-

17AUG99

B. HAYMAKER

CHK

17AUG99

K. COBLE

APVD

17AUG99

K. COBLE

PRODUCT SPEC

APPLICATION SPEC

NAME

-

1

SEE TABLE

WEIGHT

-

CUSTOMER DRAWING

A2

00779

SIZE

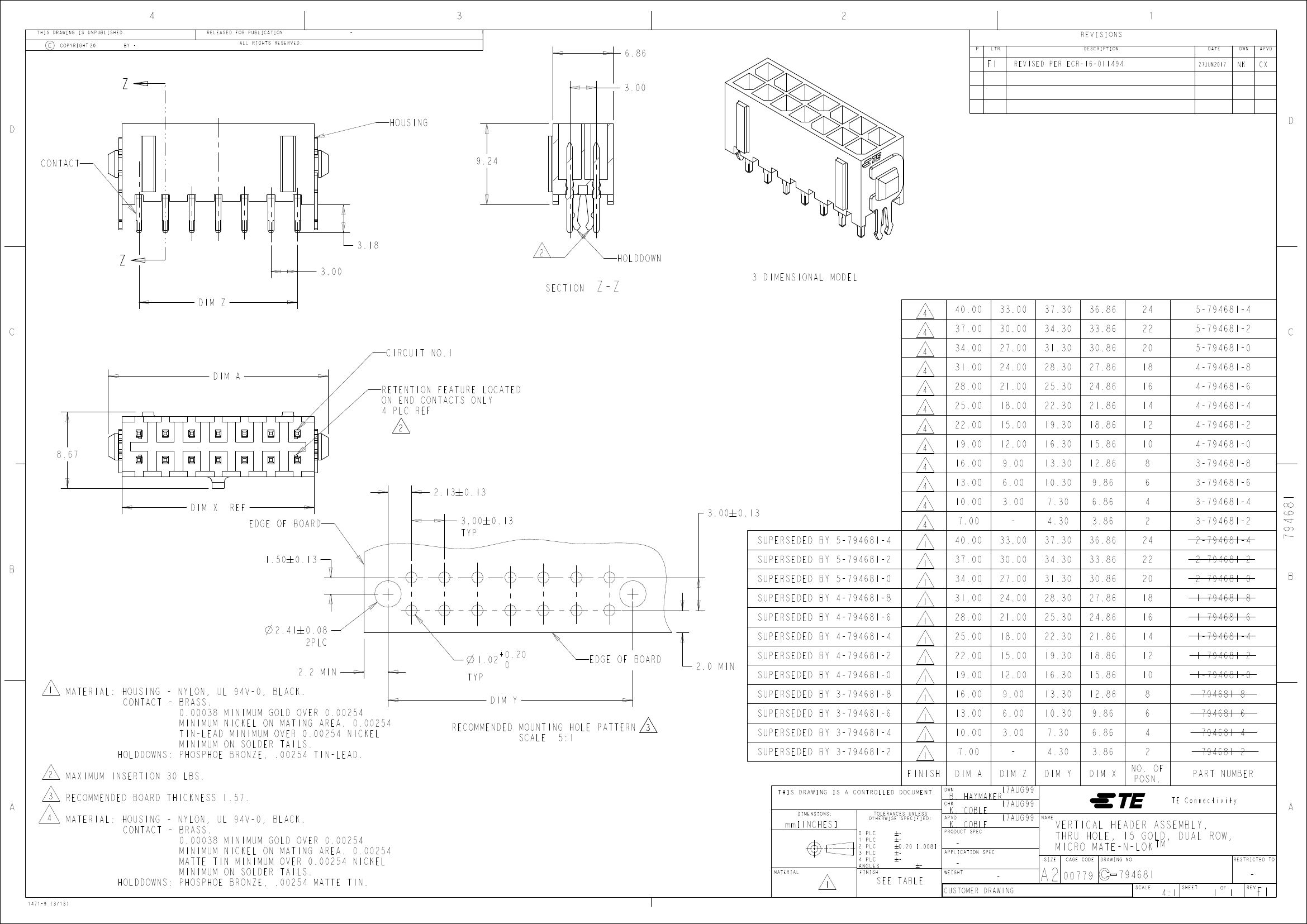

VERTICAL HEADER ASSEMBLY,

THRU HOLE, 15 GOLD, DUAL ROW,

MICRO MATE-N-LOK

TM

CAGE CODE

DRAWING NO

RESTRICTED TO

794681

SCALE

1471-9 (3/13)

4:1

SHEET

1

OF

1

REV

-

F1

794681

B

A

4
