1 mm Pitch Double Rows Low Profile Board-to-Cable Connectors
DF20 series
5.4
Socket
DF20A-
**DS-1C
DF20F(G)-
**DP-1V(56)
Pin
Header
5.8
Cable
PCB
DF20A-
**DS-1C
Socket
Cable
6.2
DF20F
**DP-1H(59)
Pin
Header
5.5
PCB
DF20A-**DS-1C
Socket
DF20F(G)-**DP-1V
Pin Header
1

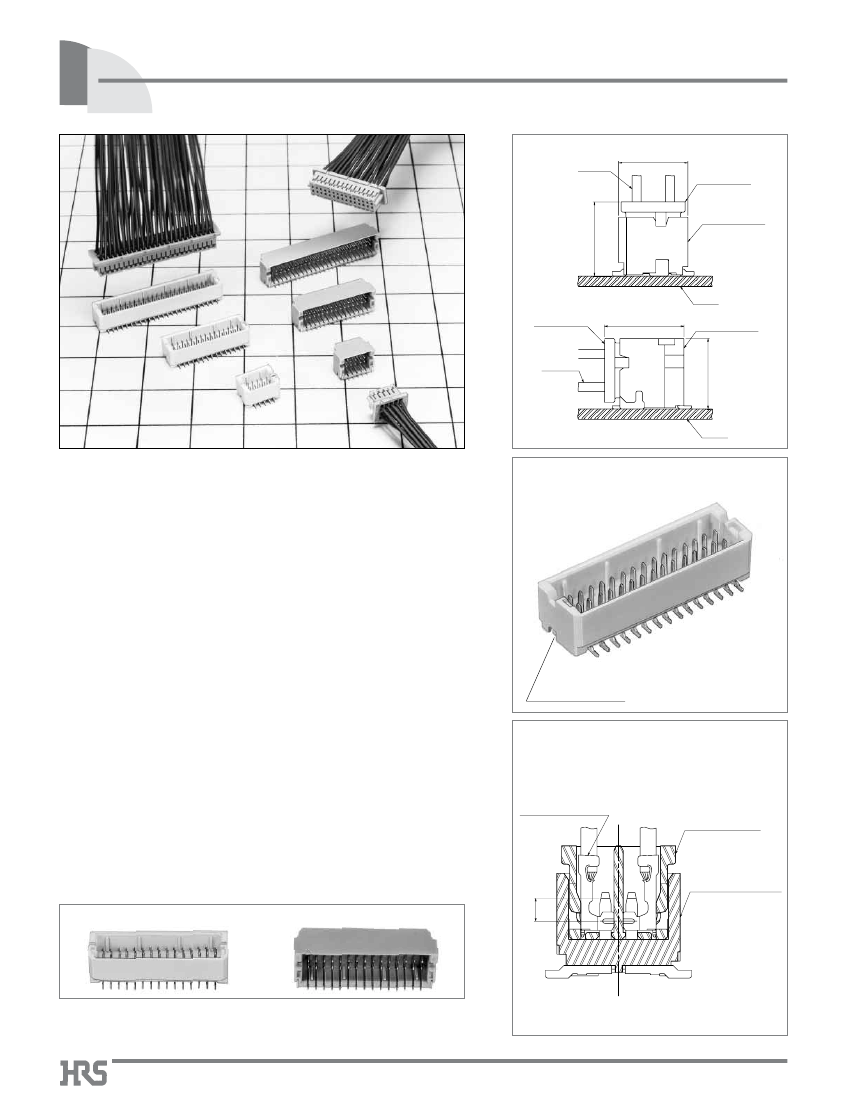

■Features
1. Contact Pitch
1 mm contact pitch allows reliable solder and cable
termination.
Narrower external width and length
2. Reliable electrical connection wipe
Effective electrical connection is assured with a 1mm wipe of
mating contacts.
3. Narrower external width and length
Redesigned metal fittings decreased the overall length of the
board- mount receptacle and permit end-to-end mounting of
several connectors.
4. Automatic equipment board placement
Straight type pin headers are supplied with a 5.4 mm X 4.6mm
flat platform to allow vacuum pick-up and placement on the
board.
Metal fitting
5. Product variations
(1) Available with 10, 20, 30, 40, and 50 contacts.
(2) Pin headers are available in two types: with or without
board positioning bosses.
(3) Depending on specific application pin headers can be
ordered in straight or right angle types.
DF20F-****SCFA
Contact
■Applications
Notebook PC, small office automation equipment, small
consumer devices, portable devices.
Any application requiring low profile reliable board-to-cable
connection with a AWG #28, AWG#30, AWG#32 conductors.
1mm Pitch, Double Rows
B266
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS
Double
www.hirose-connectors.com, or contact your Hirose sales representative.
DF20 Series●1 mm Pitch
search at
Rows Low Profile Board-to-Cable Connectors
■Product
Specifications
Rating
AWG#28 : 1A
Operating temperature range -35°C to 85°C (Note 1,2) Storage temperature range -10°C to 60°C (Note 2)
AWG#30 : 0.9A
AWG#32 : 0.7A
Storage humidity range
-40%
to 70%
Rated voltage
Operating humidity range
-40%
to 80%
100V AC
Rated current
Specifications
500Mø min.
30Mø max.
Measured at 100V DC
Conduction of 300V AC applied for 1 minute
Measure at 100mA.
Measured with a steel pin of 0.2 ±0.005 thickness
Frequency of 10 to 55 Hz, single amplitude of 0.75 mm, in 3 directions for 2hours
(-55ç:30min
/
5ç to 35ç: 2 to 3min
/
85ç:30min
/
5ç to 35ç:2 to 3min ) for 5 cycles
50 cycles
Reflow: At the recommended temperature profile, manual
solder: Soldering iron temperature of 300°C for 3 seconds
Conditions
Item
1.Insulation resistance
3.Contact resistance
2.Withstanding voltage No flashover or insulation breakdown
4.Insertion-Extraction force
0.2 N Min., 2 N Max.
4.(per
contact)
5.Vibration
6.Humidity
7.Temperature cycle
9.Resistance to
Soldering heat
No electrical discontinuity of 1μs min.
Contact resistance of 30mø max,insulation resistance of 500Mø min.
No deformation of the insulator parts that will
affect performance
Contact resistance of 30mø max., insulation resistance of 100Mø min.
Temperature of 40±2ç, humidity of 90% to 95%, left standing for 96 hours
8.Mechanical operation
Contact resistance of 30mø
max.
Note1: Includes temperature rise caused by current flow.
Note2: The term “storage” refers to products stored for long periods of time prior to mounting and use.
Note2:
Operating temperature range and Humidity range covers non-conducting conditions of installed connectors in storage,
Note2:
shipment or transportation.
Note3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
■Materials
Item
Socket
Socket contact
Part
Insulator
Contact
Insulator
Pin header
Contact
Metal Fitting
Material
Polyamide
Phosphor bronze
Polyamide
Phosphor bronze
Brass
Finish
Color : Beige
Gold plating
Color : Beige
Gold plating
Remarks
UL94V-0
----------
UL94V-0
----------
V type: Solder plating
H type: Tin-Copper plating (Pb free)
■Ordering
Information
●Connectors
DF20 # -
*
DS - 1 C
1
2
3
4
5
6
4
Connector type
DS: Double-row socket
DP: Double-row pin header
5
Contact pitch: 1 mm
6
Type of housing, header
7
C: Crimp housing
V: Straight SMT header
H: Right angle SMT header
1
Series name : DF20
2
Boss Type
■Pin
header
■F:
Without boss
■G:
With boss
■Crimp
socket: A
3
Number of contacts: 10, 20, 30, 40, 50
●Contacts
DF20 F - 2830 SCF A
1
2
3
4
3
Contact & packaging type
SCF: Socket contact reel
4
Plating type
A: Gold plating
(
* *
)
5
5
Packaging Specifications
Blank: 1 reel = 10,000 pieces
41: 1 reel = 20,000 pieces
1
F
2
Applicable wire size
2830: AWG #28 to 30
3032: AWG #30 to 32
B267
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued
Low
Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF20 Series●1 mm Pitch Double Rows
soon.
Profile Board-to-Cable Connectors

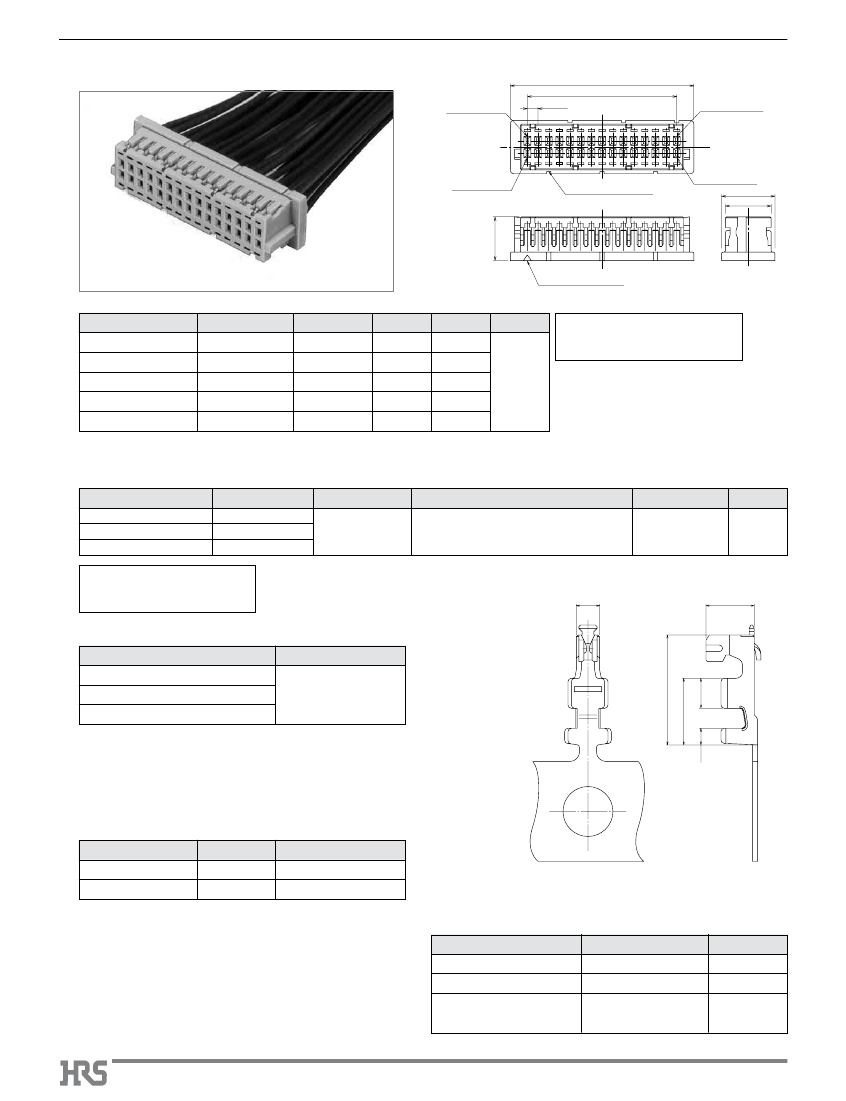

■Double
Row Socket
Contact No. 2
P=1
A
B
Contact No. *
Contact No. 1
5th contact marking
Contact No. *
5
4.28
Shown with terminated and installed contacts
4.1
Contact No. 1 mark
Part Number
DF20A-10DS-1C
DF20A-20DS-1C
DF20A-30DS-1C
DF20A-40DS-1C
DF20A-50DS-1C
CL No.
686-0020-3
686-0021-6
686-0022-9
686-0023-1
686-0024-4
Number of Contacts
10
20
30
40
50
A
17.2
12.2
17.2
22.2
27.2
B
14.0
19.0
14.0
19.0
24.0
Unit: mm
[Specifications number]-*, (**)
RoHS
(59): Gold plating, embossed tape
packaging
YES
Note: Sales quantities are by the package unit (containing 100 pieces). Please order by package unit.
■Socket
Crimp Contacts
Product No.
DF20F-2830SCFA(
**
)
DF20F-3032SCFA(
**
)
DF20F-36SCFA(
**
)
CL No.
686-0042-6-**
686-0043-9-**
686-0051-7-**
Type of contacts
Reel contacts
Quantity
See specifications number column
Plating type
Gold plating
RoHS
YES
[Specifications number] -*, (**)
(04): 10,000 pieces / reel
(44): 20,000 pieces / reel
0.7
1.45
●Applicable
Wire (Tin plated solid soft conductor)
Applicable Wire Size (Stranded wire conductor)
AWG #28 (7/0.127 mm)
AWG #30 (7/0.1 mm)
AWG #32 (7/0.08 mm)
0.5mm to 0.6 mm
Jacket diameter
3.3
0.9
2
0.5
●Recommended
wire
●UL1571
●Strip
length
●1.2
to 1.9 mm
Note: When using other than the recommended wire,
contact your nearest Hirose representative.
●Applicable
Crimping Tools
Type
Applicator
Press
CL No.
Product No.
901-4572-6 AP105-DF20-2830S
901-0005-4 CM-105
Note 1: Hirose Electric will not be responsible for any
problems caused by use of tools other than specified.
Note 2: The manual crimping tool can be also used for
cutting-off individual contacts from the reel.
Note 3: Customers that already have DF13 Series Hirose’s
press units and applicators will be able to use them
for DF20 Series crimp terminations by replacing of
only crimper and anvil.
Note4: The crimping tool for the DF20F-3032SCFA can
also be used with the DF20F-2830SCFA.
■Replacement
Parts List for Applicator
Type
Insulation crimper
Wire crimper
Product No.
AP105-DF20-2830S(61)
AP105-DF20-2830S(62)
CL No.
901-4572-6-61
901-4572-6-62
901-4572-6-63
Insulation anvil and wire anvil AP105-DF20-2830S(63)
B268
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS
Double
www.hirose-connectors.com, or contact your Hirose sales representative.
DF20 Series●1 mm Pitch
search at
Rows Low Profile Board-to-Cable Connectors
■

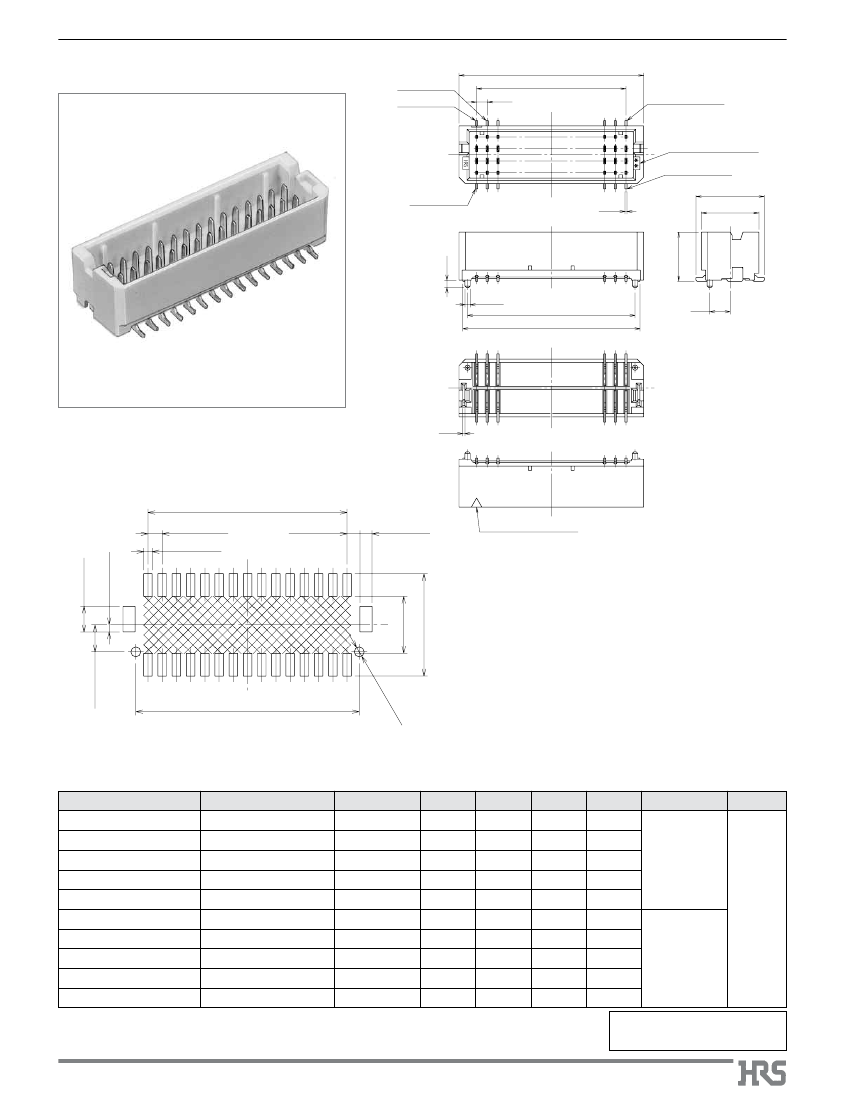

Double Row Straight Pin header
Contact No.3
Contact No.1
P=1
B
A
Contact No. **-1
Indication of number
of contacts
Contact No. **
Contact No.2
6.4
0.2
5.4
0.7
Ø0.5
D
C
4.6
1.9
A
0.2
BPCB
Footprints
A ±0.05
P=1±0.03
0.6±0.05
1.8 ±0.1
0.5±0.05
0.9±0.05
0.85±0.1
Contact No. 1 marking
1.9±0.05
D±0.05
Note 1:Shaded area must be free of any electrically conductive traces to avoid contact with soldered pin header terminations.
Note 2: Required only for pin headers supplied with the positioning boss.
Part Number
DF20F -10DP-1V(56)
DF20F -20DP-1V(56)
DF20F -30DP-1V(56)
DF20F -40DP-1V(56)
DF20F -50DP-1V(56)
DF20G-10DP-1V(56)
DF20G-20DP-1V(56)
DF20G-30DP-1V(56)
DF20G-40DP-1V(56)
DF20G-50DP-1V(56)
CL No.
CL686-0032-2-56
CL686-0033-5-56
CL686-0034-8-56
CL686-0035-0-56
CL686-0036-3-56
CL686-0037-6-56
CL686-0038-9-56
CL686-0039-1-56
CL686-0040-0-56
CL686-0041-3-56
7.2 ±0.1
4±0.1
No. of contacts
10
20
30
40
50
10
20
30
40
50
Note1: Order embossed tape packaging items by the reel. (1 reel contains 1,000 pieces)
Note2: Vacuum pick-up cap are included with embossed tape packaged connectors.
.1
+0 0
.7
Ø0
Unit: mm
A
14.0
19.0
14.0
19.0
24.0
14.0
19.0
14.0
19.0
24.0
B
17.3
12.3
17.3
22.3
27.3
17.3
12.3
17.3
22.3
27.3
C
16.6
11.6
16.6
21.6
26.6
16.6
11.6
16.6
21.6
26.6
D
----
----
----
----
----
15.7
10.7
15.7
20.7
25.7
Remarks
RoHS
Without boss
YES
With boss
[Specifications number]-*, (**)
(56): Gold plating, embossed tape
packaging
B269
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued
Low
Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF20 Series●1 mm Pitch Double Rows
soon.
Profile Board-to-Cable Connectors
■Double

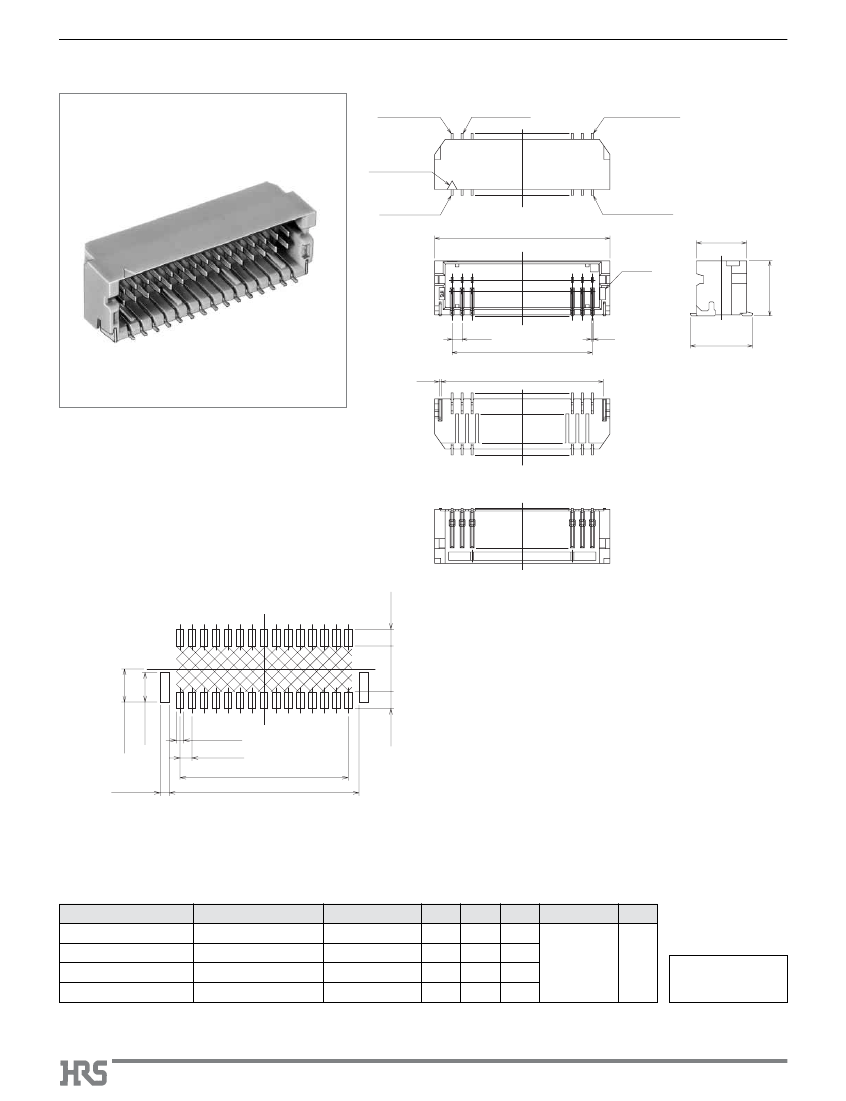

Row Right angle Pin header
Contact No.1
Contact No.3
Contact No.**-1
Contact No.1
marking
Contact No.2
B
Contact No.**
5
A
Indication of
number of
contacts
**
P= 1
A
0.2
6.2
0.2
C
BPCB
Footprints
1.4
+0.1
0
2.75 ±0.05
+0.1
0
2.45
0.6 ±0.05
P= 1 ±0.03
A ±0.05
0.75 ±0.1
C ±0.1
Note : Shaded area must be free of any electrically conductive traces to avoid contact with soldered pin header terminations.
Unit: mm
Part Number
DF20F -10DP-1H(59)
DF20F -20DP-1H(59)
DF20F -30DP-1H(59)
DF20F -40DP-1H(59)
CL No.
686-0027-2(59)
686-0028-5(59)
686-0029-8(59)
686-0030-7(59)
No. of contacts
10
20
30
40
1.4
+0.1
0
3.8 ±0.05
A
24.0
29.0
14.0
19.0
B
27.5
12.5
17.5
22.5
C
26.2
11.2
16.2
21.2
Remarks
RoHS
Without boss
YES
[Specifications number]-*, (**)
(59): Gold plating,
embossed tape packaging
Note:Order embossed tape packaging items by the reel. (1 reel contains 1,000 pieces)
_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
