REVISIONS
REV.
A
ECO. NO
1994
DESCRIPTION
INITIAL RELEASE
DATE
7/17/2009
BY
JH
F
F
A±0.10[.004]
2.00±0.05 .079±.002
E
E
CIRCUIT 2
2.00±0.05 .079±.002
2.00±0.10 .079±.004
2.00±0.10 .079±.004
CIRCUIT 1
D
+0.10
+.004
0.70
.028
0.00
- .000
RECOMMENDED PCB LAYOUT
D
A±0.20[.008]
5.00±0.25 .197±.010
B±0.25[0.010]
C
6.50±0.25 .256±.010
C
3.00±0.20 .118±.008
0.50 .020
B
B
A
NOTES:
1. INSULATOR MATERIAL: NYLON66, UL94V-0, COLOR:GREY (PANTONE 7528C).
2. CONTACT MATERIAL: BRASS.
3. CONTACT PLATING: TIN OVERALL.
4. CURRENT RATING: 3 AMPS.
5. VOLTAGE RATING: 250V AC/DC.
6. INSULATOR RESISTANCE: 1000 MEGOHMS MIN.
7. CONTACT RESISTANCE: 10 MILLIOHMS MAX.
8. DIELECTRIC WITHSTANDING VOLTAGE: 800V AC.
9. OPERATING TEMPERATURE: -25° C TO +85° C.
10. MATES WITH SWH204 SERIES DUAL ROW HOUSING.
8
7
6
5
Pb
R
oHS COMPLIANT
4
DIMENSIONS ARE IN MM[INCHES]
TOLERANCES:
ANGULAR: 5
.X= .3 [.01]
.XX= .15 [.006]
.XXX= .050 [.0020]
SURFACE FINISH: 63 Ra
UNLESS OTHERWISE SPECIFIED:
DRAWN
DATE
NAME
7/17/2009
JH
REMOVE ALL BURRS AND SHARP EDGES .010 MAX
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
DESCRIPTION
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
PART NUMBER
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.

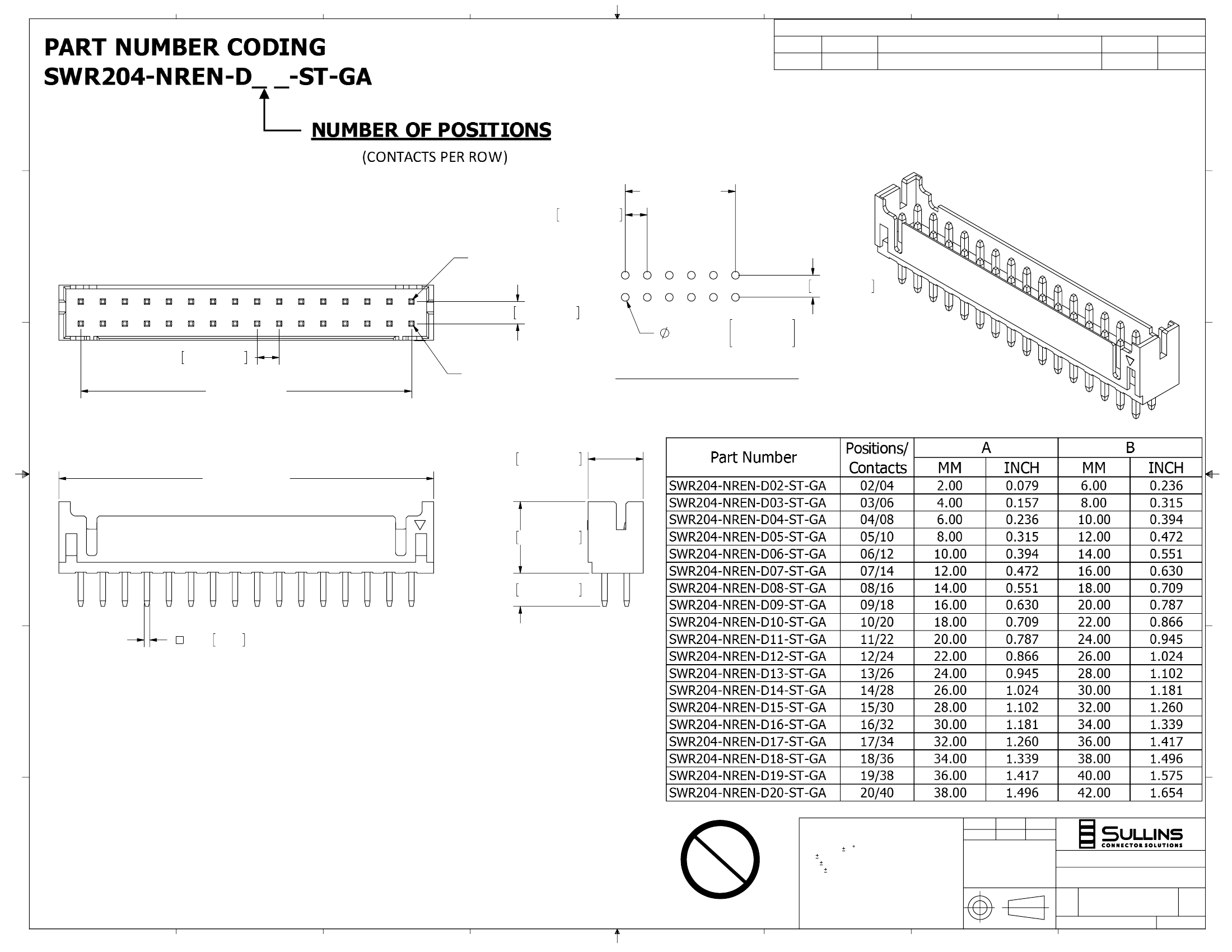

WAFER, 2mm CC, DUAL ROW, ST
A
SWR204-NREN-D_ _-ST-GA
SIZE DWG. NO.
INTERPRET DIMENSIONS AND GEOMETRIC
TOLERANCING
PER: ANSI Y14.5M-1994
3
2
SCALE: 5:1
1
C
REV
11285
A
SHEET 1 OF 1
FILE NAME: Z:\ECO PENDING\1994, wafer 204 series\11285, SWR204-NREN-D_ _-ST-GA PRINT: 9/15/2009
