Pb in glass exemption 7 (c)-I per RoHS II 2011/65/EU Annex
12.5 x 4.85 x 5.1mm
Moisture Sensitivity Level – MSL – N/A
(The ABSM3A Series is a Hermetically Sealed device and not moisture sensitive)
APPLICATIONS:
• Home electronics
• Computers, modems, and communications
• Clock applications
• Microprocessors
Minimum
Typical
Maximum
Units
MHz
Standard
Standard
Standard
Option “FB”
See options
See options
See options
3.579545MHz ~
3.999MHz
4.000 MHZ ~
4.999MHz
5.000MHz ~
6.999MHz
7.000MHz ~
14.999MHz
15.000MHz ~
48.000MHZ (Fund.)
40.000MHz ~
60.000MHz (3
rd
OT)
STANDARD SPECIFICATIONS:
Parameters
Frequency Range
Operation Mode
Operating Temperature
Storage Te mperature
Frequency Tolerance
Frequency Stability over the Operating
Temperature ( ref. to +25°C ± 3
o
C)
Notes
3.579545
60
3.579545MHz ~ 30.00MHz: Fundamental, AT
30.01MHz ~ 39.99MHz: Fundamental, BT
40.00MHz ~ 60.00MHz: 3
rd
OT
40.00MHz ~ 48.00MHz: Fundamental, BT
-10
+60
-40
+85
-50
+50
-100
+100
150
120
Equivalent series resistance (R1)
90
50
40
80
Shunt capacitance (C0)
Load capacita nce (CL)
Drive Level
Aging (per year) @25°C ± 3
o
C
Insulation Resistance
7 .0
18
100
-5
500
1000
+5
pF
pF
µW
ppm
M
Ω
Ω
ºC
ºC
ppm
ppm
See options
@100Vdc±15V
ABRACON IS
ISO 9001:2008
ISO 9001 / QS 9000
CERTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 04.30.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
Surface Mount Microprocessor Crystal
ABSM3B
RoHS / RoHS II Compliant
Pb in glass exemption 7 (c)-I per RoHS II 2011/65/EU Annex
12.5 x 4.85 x 5.1mm
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ABSM3 B -
Height max.
(mm)
Blank: 5.1
2: 4.5
3: 3.8
Frequency in MHz
e.g. 14.31818MHz
26.000MHz
Load Capacitance (pF)
Please specify CL in pF or
S for series (10pF min) if
not standard
Custom ESR if other than
standard
R□
□: Specify
a value in
Ω
if
not standard (e.g.: R40)
MHz -
-
-
-
-
-
-
Packaging
Blank: Bulk
T: 1kpcs/reel
Mode
Blank: Standard
FB: Fund BT for
40MHz≤F≤48MHz
Operating Temp.
Blank: -10°C to +60°C
E: 0°C to +70°C
B: -20°C to +70°C
C: -30°C to +70°C
N: -30°C to +85°C
D: -40°C to +85°C
Freq. Tolerance
Blank: ± 50 ppm
1: ± 10 ppm
7: ± 15 ppm
2: ± 20 ppm
3: ± 25 ppm
4: ± 30 ppm
Freq. Stability
Blank:± 100 ppm
U: ± 10 ppm(*)
G: ± 15 ppm(**)
X: ± 20 ppm
W: ± 25 ppm
Y: ± 30 ppm
H: ± 35 ppm
Z: ± 50 ppm
(*) -10°C to 60°C only.
(**) Temp. option E, B, C, N and -10 to +60°C only
Note: Fundamental BT frequency stability ± 100
ppm max. at -10°C to 60°C only
ABRACON IS
ISO 9001:2008
ISO 9001 / QS 9000
CERTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 04.30.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
Surface Mount Microprocessor Crystal
ABSM3B

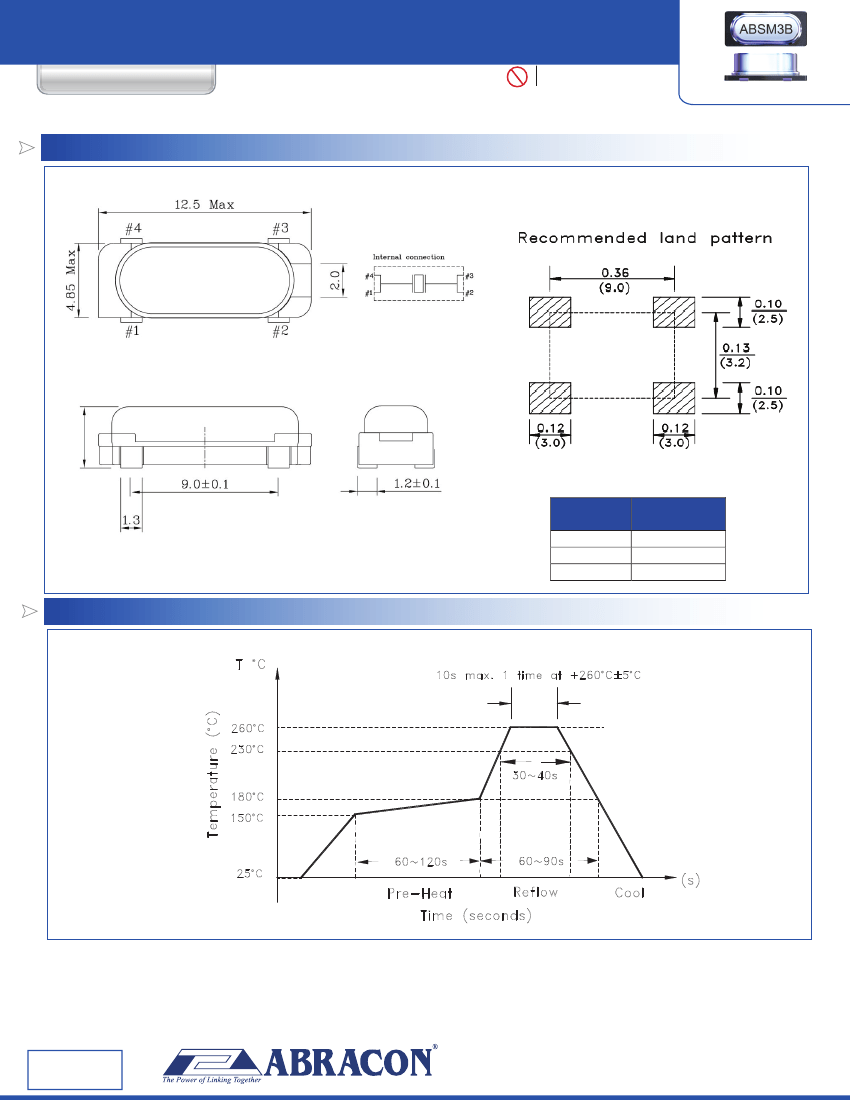

OUTLINE DIMENSION:
Pb
RoHS / RoHS II Compliant
Pb in glass exemption 7 (c)-I per RoHS II 2011/65/EU Annex
12.5 x 4.85 x 5.1mm
H (see table)
P/N
ABSM3B
ABSM32B
ABSM33B
Dimensions: mm
Height max.
(mm)
5.1
4.5
3.8
REFLOW PROFILE:
ABRACON IS
ISO 9001:2008
ISO 9001 / QS 9000
CERTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 04.30.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
Surface Mount Microprocessor Crystal
ABSM3B

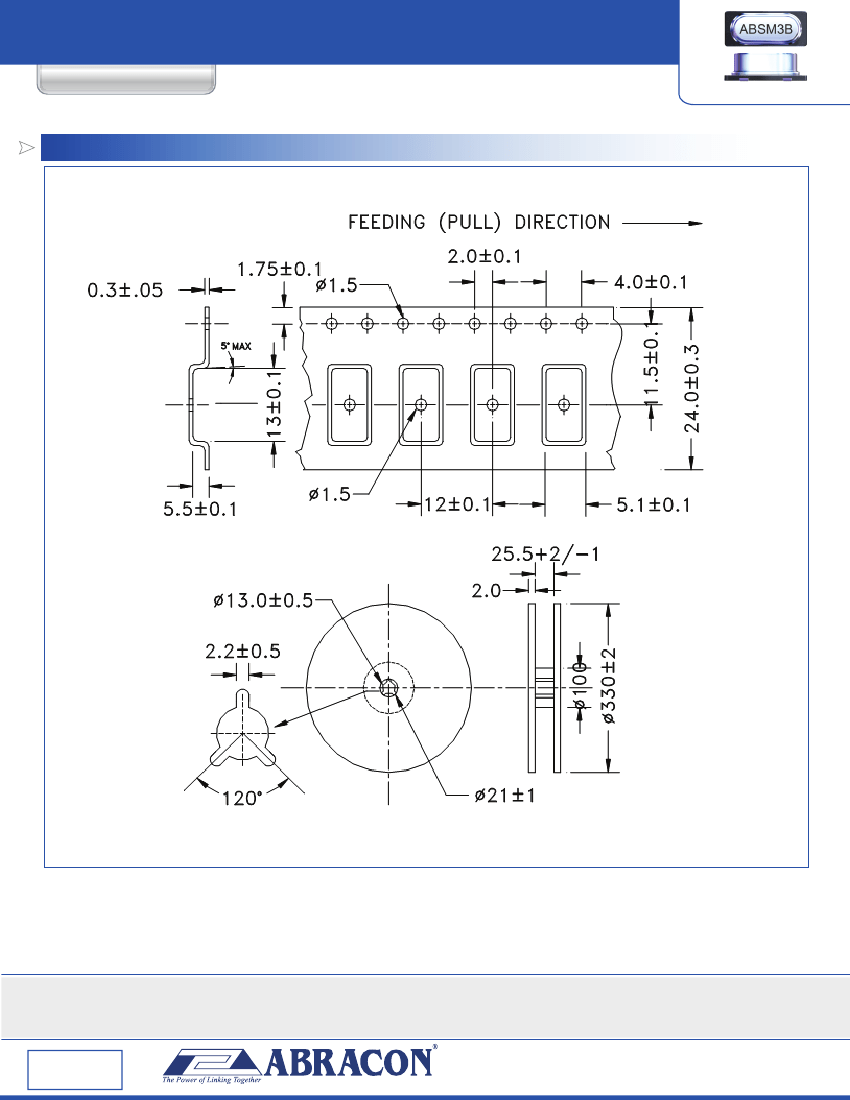

TAPE & REEL:
T=Tape and Reel (1000pcs/reel)
RoHS / RoHS II Compliant
Pb in glass exemption 7 (c)-I per RoHS II 2011/65/EU Annex
12.5 x 4.85 x 5.1mm
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
