ASR12205%A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> ASR12205%A

Preview

ASR12205%A: DescriptionRESISTOR, 1W, 5%, 220ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size107KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

ASR12205%A Overview

RESISTOR, 1W, 5%, 220ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

ASR12205%A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1949403832
package instruction	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
JESD-609 code	e2
Manufacturer's serial number	ASR
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	220 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	1000 V

Preview

Download Datasheet

View All

ASR/ASRM Series

Anti-Surge Resistors

Features:

•

Stackpole Electronics, Inc.

Resistive Product Solutions

Excellent anti-surge characteristics

Stable characteristics through the resistance range

Good alternative to carbon composition resistors

Applications include power supplies, CRT’s, and anti-surge

circuits

Cut and formed product is available on select sizes; contact

factory for details

RoHS compliant / lead-free

Electrical Specifications

Type / Code

ASRM 1/4

ASR 1/4

Power Rating

(Watts) @ 70ºC

0.25W

Maximum Working

Voltage (1)

500V

Maximum Overload

Voltage

1,000V

Surge

Withstanding

2KV

1KV

3KV

5KV

ASRM 1/2

0.50W

700V

1,000V

10KV

5KV

ASR 1

1.00W

1,000V

1,500V

10KV

Ohmic Range (Ω) and Tolerance

5%

100K - 10M

100 - 510K

510K - 18M

100 - 510K

560K - 910K

13M - 20M

100 - 510K

560K - 910K

13M - 20M

10%

-

20M - 33M

-

22M - 33M

-

22M - 33M

(1) Lesser of

√PR

or maximum working voltage.

Performance Characteristics

Test

Moisture Resistance

Temperature Cycling

Load Life

Resistance to Soldering Heat

Overload (short time)

Discharge

Test Results

± 5%

± 1%

± 5%

± 1%

± (2%+0.05Ω)

± (10%+0.05Ω)

Operating Temperature Range: -55°C to +155°C

How to Order

SEI Type

Code

Nominal

Resistance

Tolerance

Packaging

ASR

Code

ASR

ASRM

Description

Standard

Mini

1/2

Code Wattage

1/4

0.25W

1/2

0.5W

1

1W

100K

5%

Tolerance

5%

10%

SEI Types

ASRM 1/4

ASR 1/4, ASRM 1/2, ASR 1

ASRM 1/4

ASR 1/4, ASRM 1/2

ASR 1

R

Pkg Qty

2,000

1,000

5,000

2,000

500

Description

Bulk

Ammo

Code

A

T

Rev Date: 03/08/2010

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

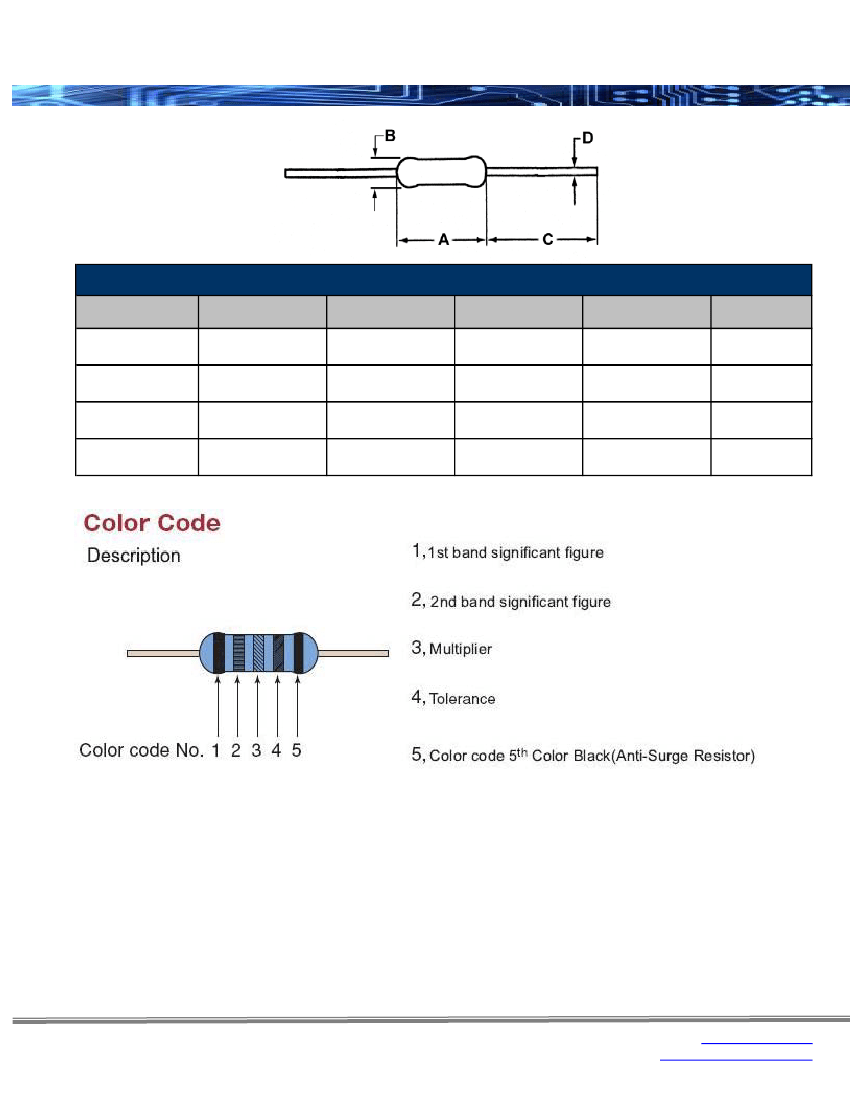

57

www.seielect.com

marketing@seielect.com
