CG240128A-LW-SF-N2-P datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CG240128A-LW-SF-N2-P

CG240128A-LW-SF-N2-P: DescriptionDisplay; CategoryLED optoelectronic/LED photoelectric; File Size7MB，22 Pages; ManufacturerClover Display Limited

Download Datasheet Parametric View All

CG240128A-LW-SF-N2-P Overview

Display

CG240128A-LW-SF-N2-P Parametric

Parameter Name	Attribute value
Objectid	109498926
Reach Compliance Code	unknown

CG240128A-LW-SF-N2-P Preview

CLOVER DISPLAY LTD.

LCD MODULE SPECIFICATION

Model : CG240128A - _ _ - _ _ - _ _ - _

Revision

Engineering

Date

Our Reference

TIMMY

18 AUGUST 2008

X9035

ADDRESS : ROOM 1006, 10/F WESTIN CENTRE, 26 HUNG TO ROAD, KWUN TONG,

KOWLOON, HONG KONG.

TEL

: (852) 2341 3238 (SALES OFFICE)

(852) 2342 8228 (GENERAL OFFICE)

FAX

: (852) 2357 4237 (SALES OFFICE)

(852) 2341 8785 (GENERAL OFFICE)

E-MAIL

URL

cdl@cloverdisplay.com

http://www.cloverdisplay.com

CLOVER DISPLAY LTD.

CG240128A

MODE OF DISPLAY

Display mode

STN :

□

Yellow green

□

Grey

□

Blue (negative)

□

FSTN positive

□

FSTN negative

Display condition

□

Reflective type

□

Transflective type

□

Transmissive type

□

Others

Viewing direction

□

6 O’ clock

□

12 O’ clock

□

3 O’ clock

□

9 O’ clock

LCD MODULE NUMBER NOTATION:

CG240128A- N N - S R - N 6 – T

(1)

| |

(2) (3) (4) (5) (6) (7) (8)

*(1)---Model number of standard LCD Modules

*(2)---Backlight type

N – No backlight

E – EL backlight

L – Side-lited LED backlight

M– Array LED backlight

C – CCFL

*(3)---Backlight color

N – No backlight

A – Amber

B – Blue

O– Orange

W–White

Y – Yellow green

*(4)---Display mode

T – TN

V – TN (Negative)

S – STN Yellow green

G – STN Grey

B – STN Blue (Negative)

F – FSTN

N – FSTN (Negative)

*(5)---Rear polarizer type

R – Reflective

F – Transflective

T – Transmissive

*(6)---Temperature range

N – Normal

W– Extended

*(7)---Viewing direction

6 – 6 O’clock

2 – 12 O’clock

3 – 3 O’clock

9 – 9 O’clock

*(8)---Special code for other requirements

(Can be omitted if not used)

SPEC. REV.01

PAGE

1 OF 21

CLOVER DISPLAY LTD.

GENERAL DESCRIPTION

Display mode

Interface

Driving method

Controller IC

240 X 128 dots, graphic COG LCD module

4/8 bit parallel(8080/6800) / 3 line or 4 line SPI

1/128 duty, 1/12 bias

Ultra Chip UC1608 or equivalent

For the detailed information, please refer to the IC specifications.

CG240128A

MECHANICAL DIMENSIONS

Item

Outline Dimension

Non Backlight (N)

68.5(L) x 45.8(W) x 2.9MAX(H)

Dimension

Unit Item

Viewing Area

mm Dot Pitch

mm Dot Size

Dimension

61.5 (L)x34.5(W)

0.24(L)x0.24(W)

0.22(L)x0.22(W)

Unit

LED Sided Backlight(L) 73.0(L) x 45.8(W) x 7.0MAX(H)

CONNECTOR PIN ASSIGNMENT

Pin No.

Note (*)

Symbol

VB1-

VB1+

VB0-

VB0+

VLCD

VBIAS

Function

No connection

Pin No.

*28

*29

Symbol

WR1

WR0

RST

BM0

BM1

Function

Data bus

Data bus(SCK)

Controls Read/Write operation

External reset Input

Chip enable (Active High)

Select the interface bus mode

No connection

Supply voltage for backlight (+VE)

Supply voltage for backlight (-VE)

Voltage converter

Power supply for LCD

Reference voltage for

SEG driving voltage

Ground

Supply voltage for logic

VSS

VDD

Data bus

Data bus(SDA)

: Pin 28,29 are used for backlight version

SPEC. REV.01

PAGE

2 OF 21

CLOVER DISPLAY LTD.

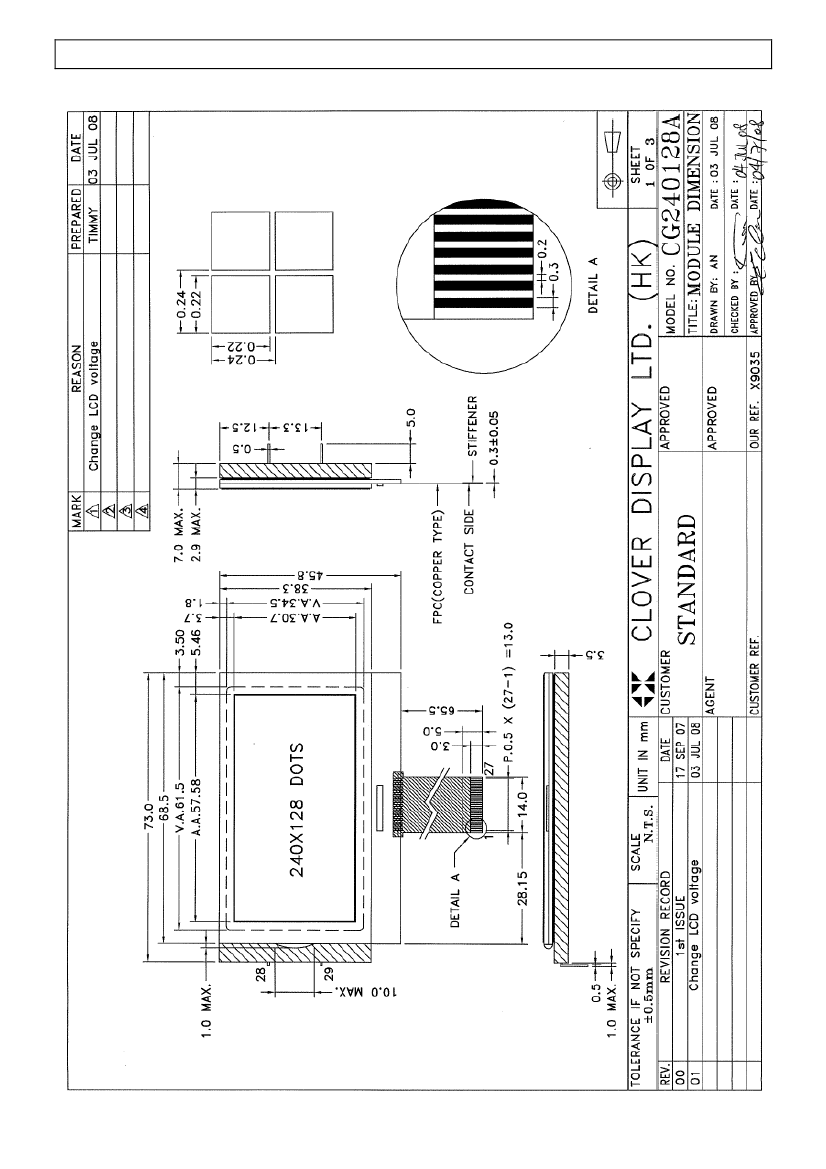

COUNTER DRAWING OF MODULE DIMENSION

CG240128A

SPEC. REV.01

PAGE

3 OF 21

CLOVER DISPLAY LTD.

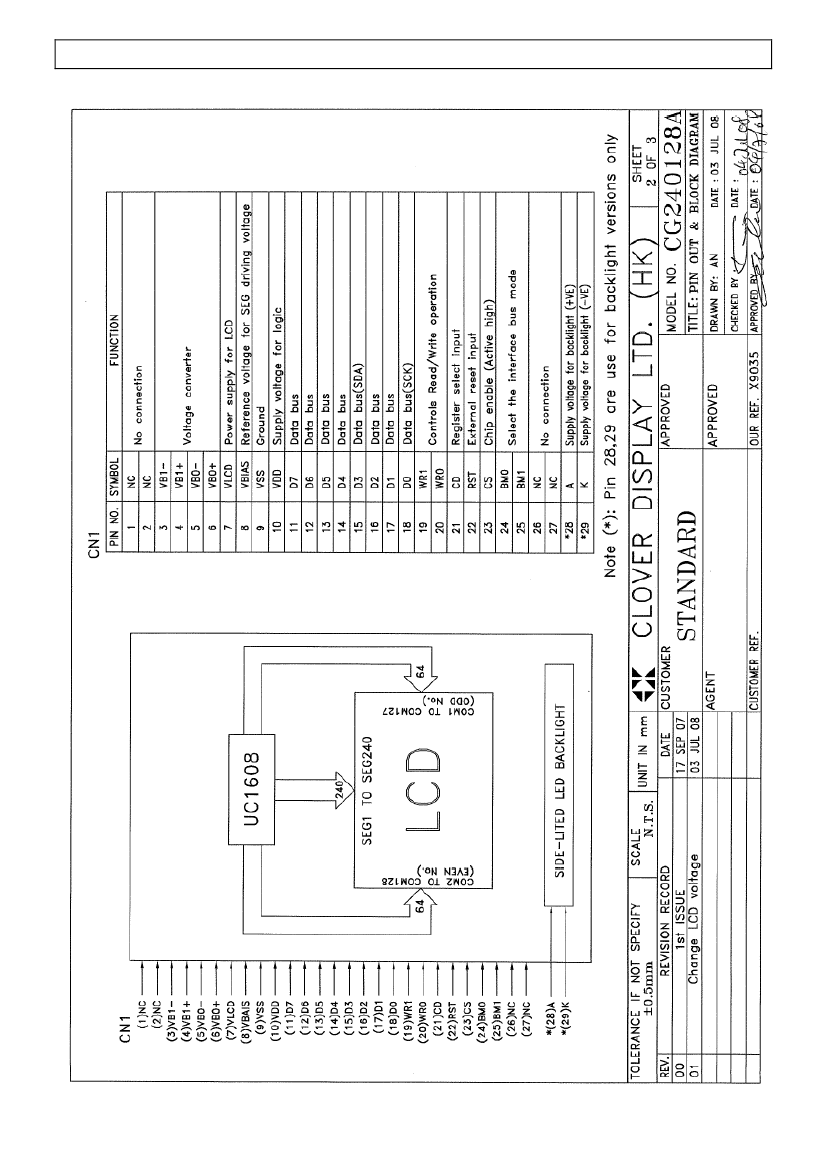

COUNTER DRAWING OF PIN OUT & BLOCK DIAGRAM

CG240128A

SPEC. REV.01

PAGE

4 OF 21

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
