DSUB-B-USAGG-C-15L datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DSUB-B-USAGG-C-15L

Preview

DSUB-B-USAGG-C-15L: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size344KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

DSUB-B-USAGG-C-15L Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

DSUB-B-USAGG-C-15L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1166433568
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.492 inch
body length	1.552 inch
Body/casing type	PLUG
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulator color	WHITE
insulator material	POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET & JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15

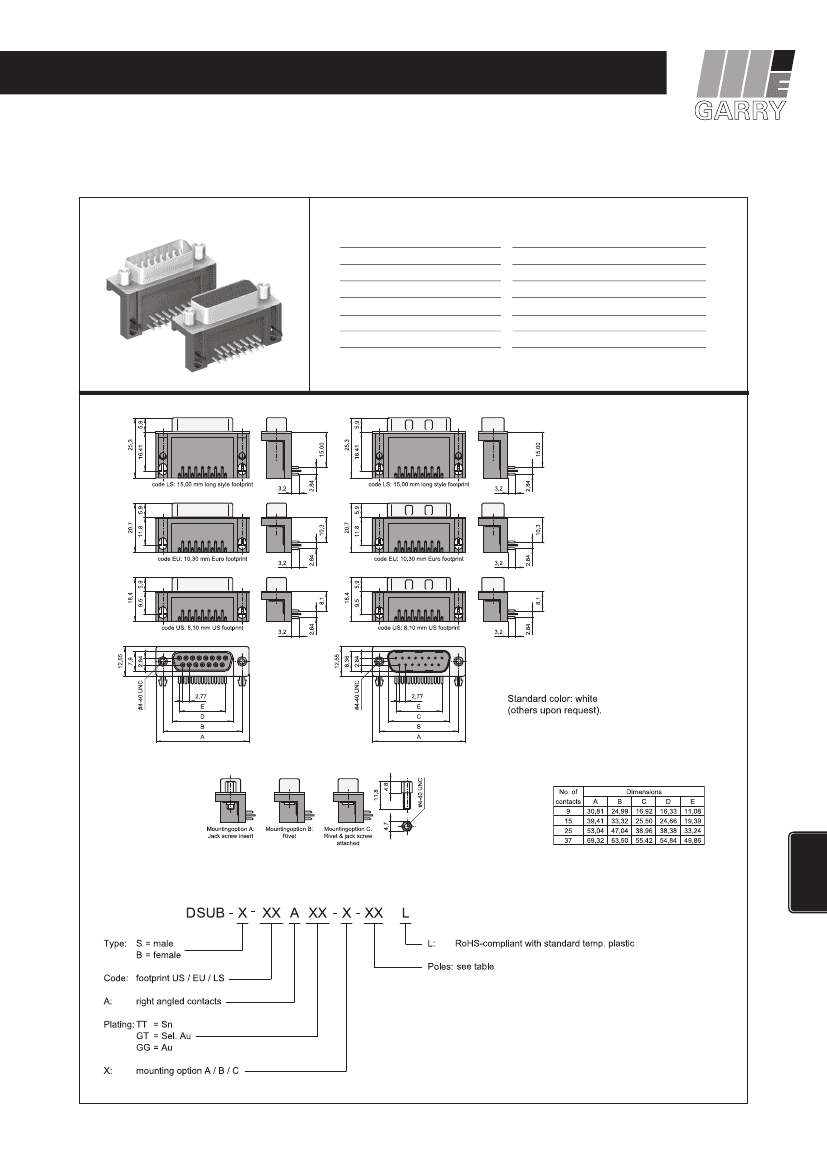

DSUB-B-USAGG-C-15L Preview

PRODUCT GROUP 12 -

1 / O CONNECTOR

DSUB

ID: 417

Series 730

DSUB Through hole / right angled

TECHNICAL DATA

Insulating Material

Contact Material

Rated Current

Rated Voltage

Withstanding Voltage

Operating Temperature

Maximum Soldering Temperature

Thermoplast UL94V-0

copper alloy/phosphor bronze

3 Amp.

150 V

1000 V

AC

for one minute

-55°C to +105°C

230°C for 5 seconds

All dimensions in mm.

Other versions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de

289

12

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
