4N33SR2V

Description
Darlington Output Optocoupler, 1-Element, 5300V Isolation, SURFACE MOUNT, DIP-6
CategoryLED optoelectronic/LED    photoelectric
File Size583KB,13 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

4N33SR2V Overview

Darlington Output Optocoupler, 1-Element, 5300V Isolation, SURFACE MOUNT, DIP-6

4N33SR2V Parametric

Parameter NameAttribute value
package instructionSURFACE MOUNT, DIP-6
Reach Compliance Codeunknown
Other featuresVDE APPROVED
Coll-Emtr Bkdn Voltage-Min30 V
ConfigurationSINGLE
Nominal current transfer ratio500%
Maximum dark power100 nA
Maximum forward current0.08 A
Maximum insulation voltage5300 V
Number of components1
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Optoelectronic device typesDARLINGTON OUTPUT OPTOCOUPLER
Base Number Matches1

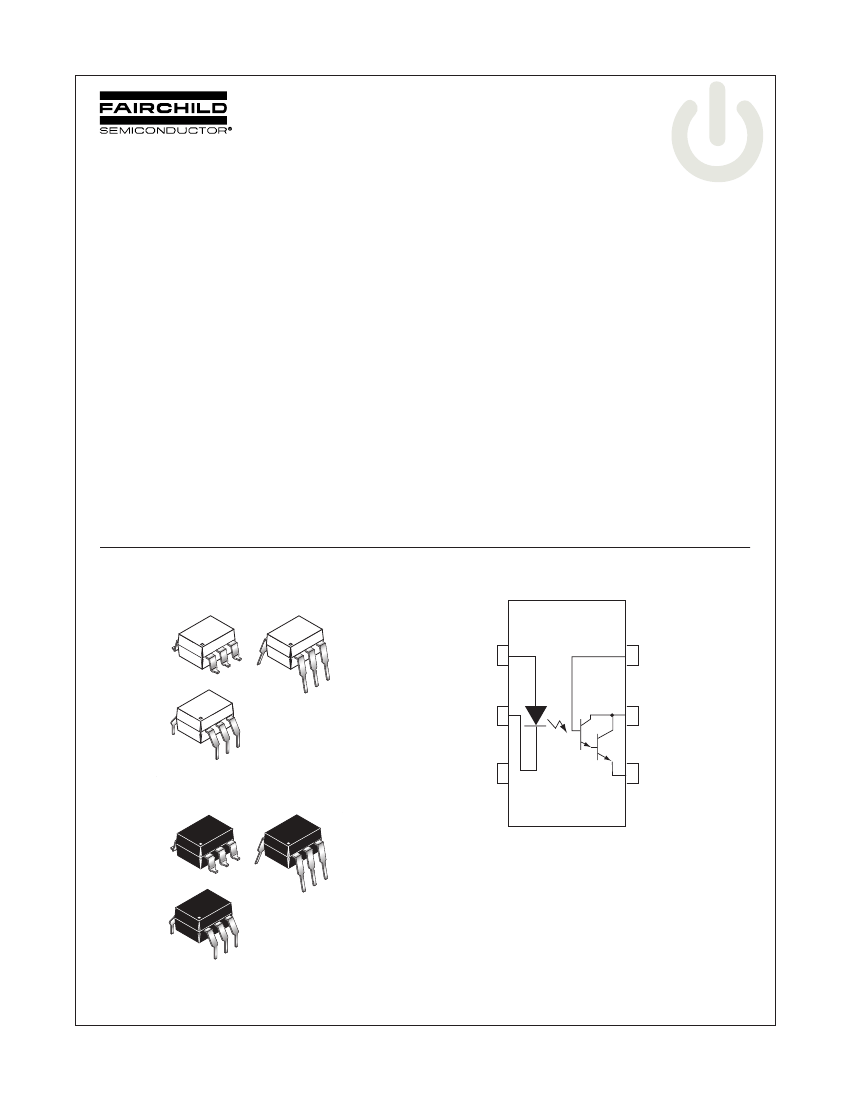

4N29, 4N30, 4N31, 4N32, 4N33 General Purpose 6-Pin Photodarlington Optocoupler
May 2006
4N29, 4N30, 4N31, 4N32, 4N33
General Purpose 6-Pin Photodarlington Optocoupler
Features
High sensitivity to low input drive current
Meets or exceeds all JEDEC Registered
tm
Description
The 4N29, 4N30, 4N31, 4N32, 4N33 have a gallium
arsenide infrared emitter optically coupled to a silicon
planar photodarlington.
Specifications
VDE 0884 approval available as a test option
– add option .300. (e.g., 4N29.300)
Applications
Low power logic circuits
Telecommunications equipment
Portable electronics
Solid state relays
Interfacing coupling systems of different potentials
and impedances
Packages
White Package (-M Suffix)
Schematic
6
1
6
1
ANODE 1
6 BASE
CATHODE 2
6
1
5 COLLECTOR
N/C 3
4 EMITTER
Black Package (No -M Suffix)
6
1
6
1
6
1
©2006 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
4N29, 4N30, 4N31, 4N32, 4N33 Rev. 1.0.0
