MINITEK
®
2.00MM RECEPTACLE
Single and double row
MODULAR AND
COMPACT SOLUTION

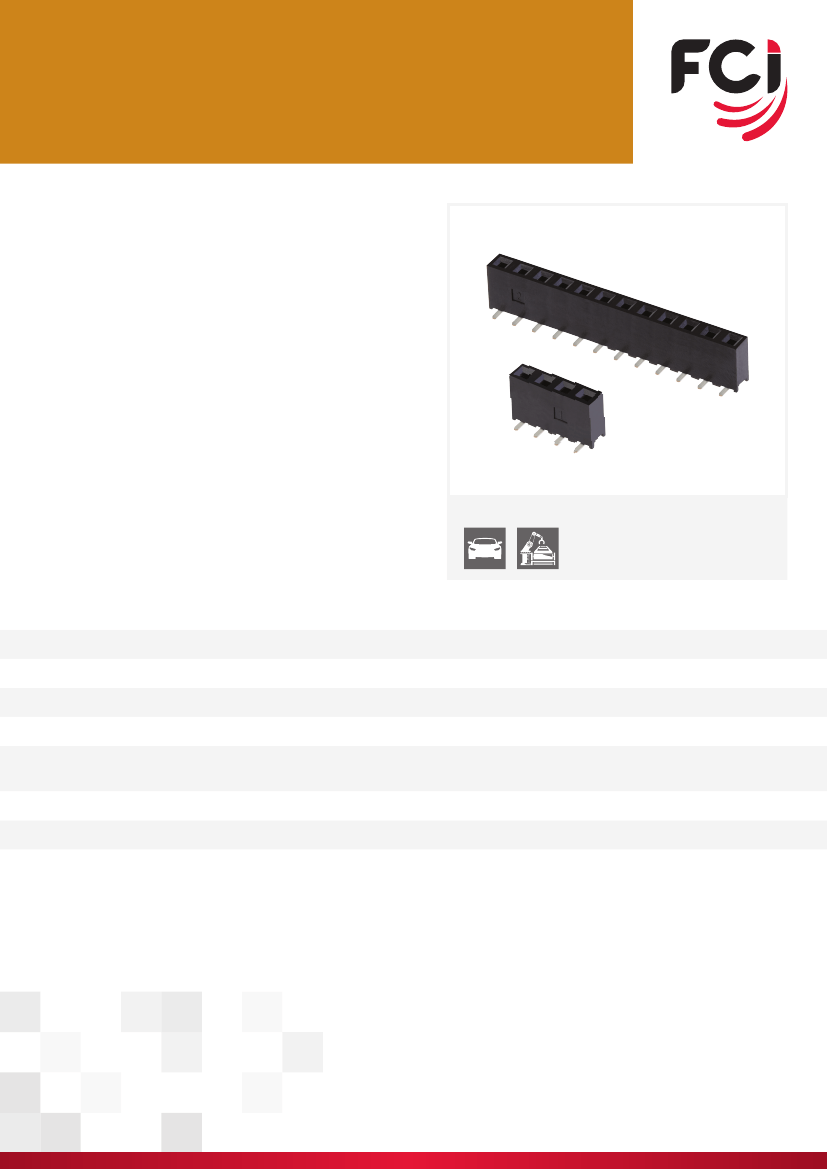

The Minitek
®
product family includes single and double
row receptacles for Board-to-Board and Wire-to-
Board applications, in 2 to 25 positions per row and in
vertical and horizontal configurations.
§
Horizontal configuration is ideal for coplanar
applications
§
Modular system ensures interchangeable solution for
flexible design
§
Dual beam contact design ensures reliable connection
§
High temperature thermoplastic material prevents
component damage during reflow soldering process
§
2.00mm pitch allows smaller footprint on PCB
compared to 2.54mm connectors
TARGET MARKETS
FEATURES
§
Horizontal configuration
§
Modular system is fully intermateable
§
Dual beam contact design
§
High temperature thermoplastic material
§
Smaller pitch of 2.00mm
§
Meets UL94V-0 standards
§
RoHS compliant and Lead-Free
BENEFITS
§
Ideal for coplanar applications
§
Interchangeable solution offers design flexibility
§
Connection reliability
§
Prevents component damage during reflow soldering process
§
Allows smaller footprint on PCB compared to 2.54mm
connectors
§
High flammability rating
§
Meet environmental, health and safety requirements
MINITEK
®
2.00MM RECEPTACLE
TECHNICAL INFORMATION
MATERIAL
§§
Housing: High Temperature Thermoplastic,
ELECTRICAL PERFORMANCE
§§
Dielectric Withstanding Voltage: 650V
§§
Insulation Resistance: 1000MΩ min.
§§
Current Rating: 1A (all contacts powered);
Black, UL94V-0
§§
Phosphor Bronze
Pin:
§§
Plating:
§§
0.76μm Gold/GXT™ on contact area and
1=
2A (one single contact powered)
2μm min. matte Tin on tail
§§
0.38μm Gold/GXT™ on contact area and
2=
2μm min. matte Tin on tail
§§
0.20μm Gold/GXT™ on contact area and
3=
2μm min. matte Tin on tail
§§
1.27μm Nickel min. under layer and 2μm
9=
matte Tin on tail
ENVIRONMENTAL
§§
Operating Temperature: -55°C to +125°C
SPECIFICATIONS
§§
Product Specification: GS-12-1326
TARGET MARKETS/APPLICATIONS
MECHANICAL PERFORMANCE
§§
Durability: 100 mating cycles
APPROVALS AND CERTIFICATIONS
§§
pending
UL
Input/Output Module
Server Drive
Programmable Logic Controller (PLC)
PACKAGING
§§
Tube
§§
Tape
For more information,
please contact: Communications@fci.com
or visit us at
www.fci.com
Disclaimer
Please note that the above information is subject to change without notice.
MINITEK
®
2.00MM RECEPTACLE
PART NUMBER SELECTOR - SINGLE ROW
XXXXXXXX
BASE PART
NUMBER
Single Row
Vertical, SMT 10131935
Vertical, THT
Horizontal,
SMT
Horizontal,
THT
10131934
10131930
10131931
2 positions
3 positions
4 positions
5 positions
6 positions
1
2
3
9
X
-
PLATING
CODE
XX
TOTAL
POSITIONS
X
PACKAGING
OPTION
XX
LEAD-FREE
LF
Tape and reel
A
02
03
05
06
07
08
09
10
11
12
13
14 positions
15 positions
17 positions
18 positions
19 positions
20 positions
21 positions
22 positions
23 positions
24 positions
25 positions
14
15
16
17
18
19
20
21
22
23
24
25
04 16 positions
0.76μm Gold/GXT™ on contact area; 2μm min. matte
Tin on tail
0.38μm Gold/GXT™ on contact area; 2μm min. matte
Tin on tail
0.20μm Gold/GXT™ on contact area; 2μm min. matte
Tin on tail
1.27μm Nickel min. under layer; 2μm matte Tin on tail
7 positions
8 positions
9 positions
10 positions
11 positions
12 positions
13 positions
PART NUMBER SELECTOR - DOUBLE ROW
XXXXXXXX
BASE PART
NUMBER
Double Row
Vertical, SMT 10131937
Vertical, THT
Horizontal,
SMT
Horizontal,
THT
10131936
10131933
10131932
2 positions
Up to 50 positions
02
50
-
X
PLATING
CODE
XX
TOTAL
POSITIONS
X
PACKAGING
OPTION
XX
LEAD-FREE
LF
Tape and reel
Tube
A
B
0.76μm Gold/GXT™ on contact area; 2μm min. matte Tin on tail
0.38μm Gold/GXT™ on contact area; 2μm min. matte Tin on tail
0.20μm Gold/GXT™ on contact area; 2μm min. matte Tin on tail
1.27μm Nickel min. under layer; 2μm matte Tin on tail
1
2
3
9
BWBMNT2MMREC1015EA4
For more information,
please contact: Communications@fci.com
or visit us at
www.fci.com
Disclaimer
Please note that the above information is subject to change without notice.
