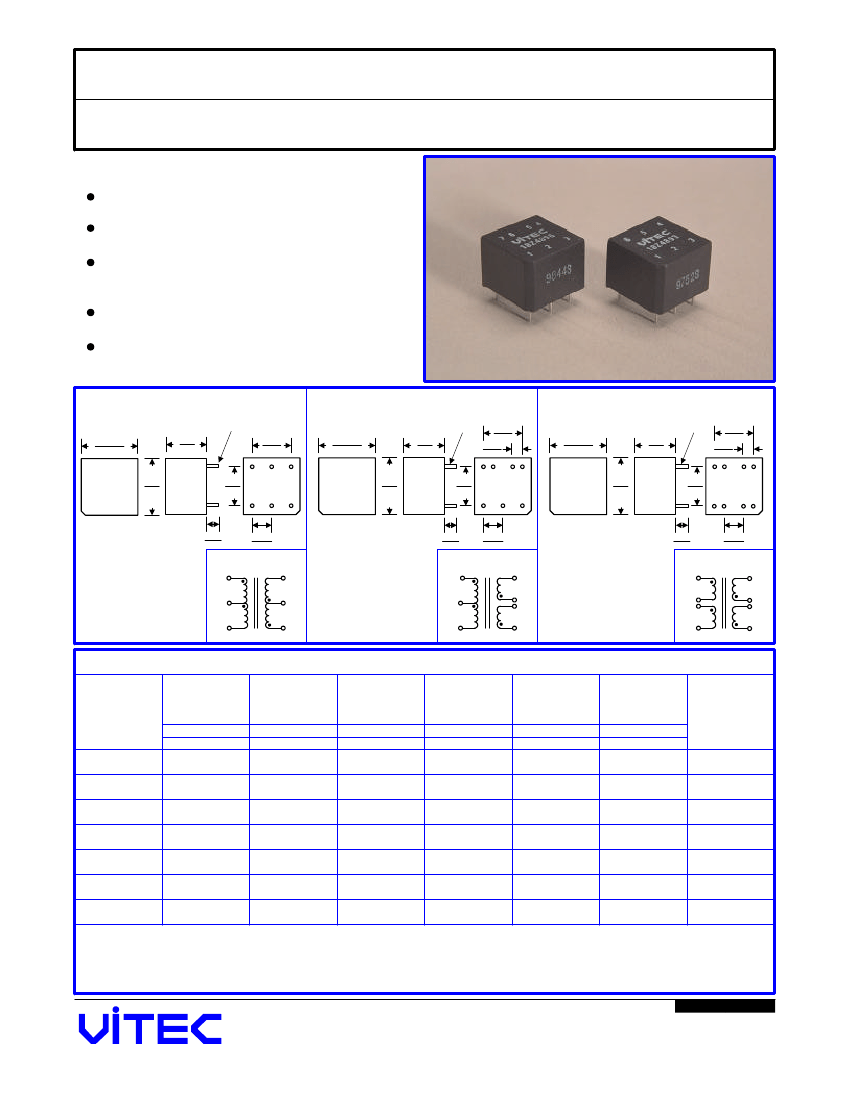

TYPE 18Z - SINGLE THROUGH-HOLE TRANSFORMERS

ISDN-S Interface

FEATURES

Designed for ISDN S/T telecom applications.

Meets CCITT I.430 pulse template.

1500 Vrms, basic insulation per IEC 950:1991, Mod.

EN60950:1992 +A1 +A2:1993, EN41003:1990

TÜV Bauart certificate # B 95 04 18725 002

BABT BS EN60950 approval # 1810.

PACKAGE 1

#22

AWG

0.558 MAX

14.20 MAX

6

5

4

0.558

14.20

0.400

10.20

0.445

11.30

0.400

10.20

PACKAGE 2

#22

AWG

0.558 MAX

14.20 MAX

7 6

5 4

0.558

14.20

0.400

10.20

0.445

11.30

0.400

10.20

0.100

2.54

PACKAGE 3

#22

AWG

0.558 MAX

14.20 MAX

8 7

6 5

0.558

14.20

0.400

10.20

0.445

11.30

0.400

10.20

0.100

2.54

VITEC

18Z489X

1

2

3

VITEC

18Z489X

1

2

3

VITEC

18Z489X

1 2

3 4

0.130

3.30

0.200

5.10

0.130

3.30

0.200

5.10

0.130

3.30

0.200

5.10

SCHEMATIC

1

2

6

5

4

SCHEMATIC

1

2

7

6

5

4

SCHEMATIC

1

2

3

8

7

6

5

Dimensions Inches/mm

+/- 0.01" Unless noted

3

Dimensions Inches/mm

+/- 0.01" Unless noted

3

Dimensions Inches/mm

+/- 0.01" Unless noted

4

ELECTRICAL CHARACTERISTICS @ 25

o

C

Part

Number

18Z4893

18Z4894

18Z4895

18Z4896

18Z4897

18Z4898

18Z4899

Turns

Ratio

+/- 5%

OCL

mH

MIN

Pri/Sec

L

uH

MAX

Pri/Sec

C

pF

MAX

Primary

DCR

Ohms

+/- 25%

Secondary

DCR

Ohms

+/- 25%

Package

1

2

1

2

1

3

1

1CT:1CT

1CT:1.8SCT

1CT:2CT

1CT:2.5SCT

1CT:2CT

1SCT:2.5SCT

1CT:2CT

22

5

10

15

12

35

40

11

130

120

125

120

100

2.4

2.5

2.4

4.2

4.6

5.5

4.8

5.8

4.4

T-650.1

06/02

--

Vitec Electronics Corporation

www.VitecCorp.com
