M83513/31-E02PN datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> M83513/31-E02PN

Preview

M83513/31-E02PN: DescriptionD Microminiature Connector, 31 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size347KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M83513/31-E02PN Overview

D Microminiature Connector, 31 Contact(s), Female, Solder Terminal, Receptacle,

M83513/31-E02PN Parametric

Parameter Name	Attribute value
Objectid	7422472346
Reach Compliance Code	unknown
YTEOL	8.57
Other features	STANDARD: MIL-DTL-83513
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYPHENYLENE SULFIDE
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	E
Termination type	SOLDER
Total number of contacts	31

Preview

Download Datasheet

View All

Amphenol

Aerospace

Contacts

& Tools

D

E

PCB Connectors

Series

PLUG

A

B

100, 102 & 104

RECEPTACLE

* INTERFACIAL SEAL NOT INCL. FOR PLASTIC SHELL

A

B

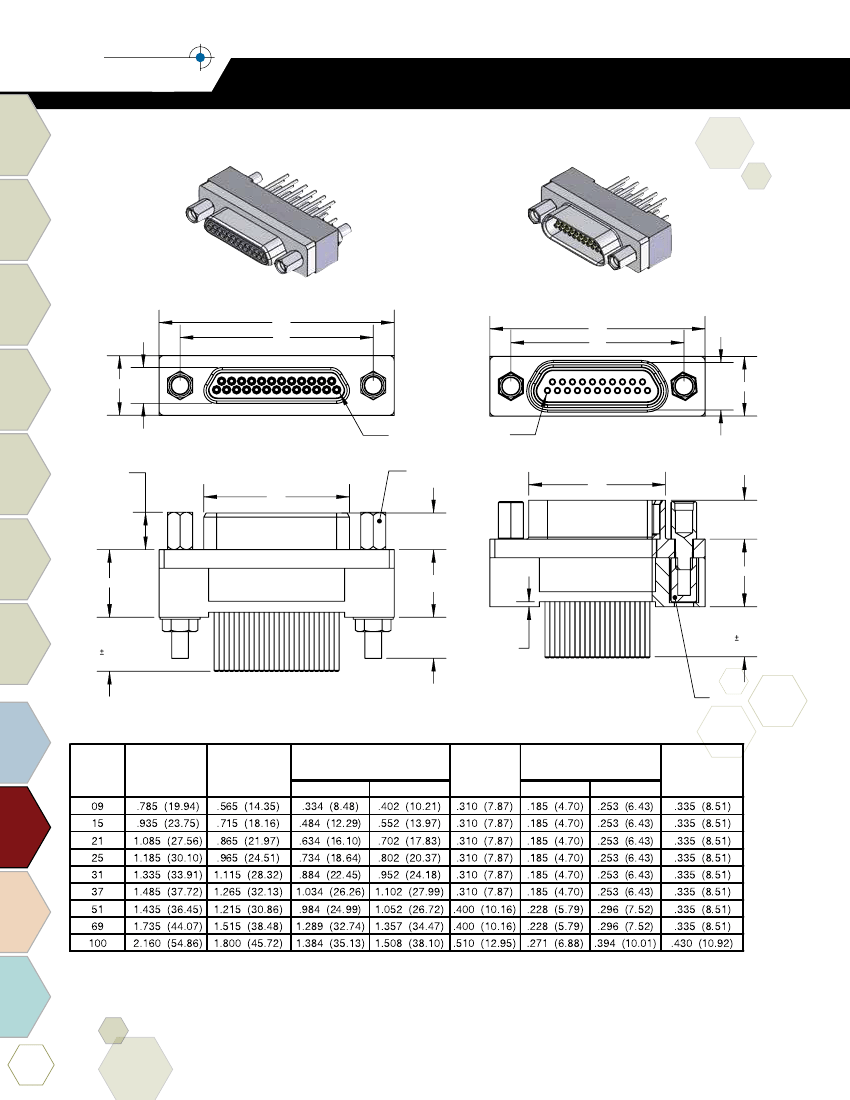

Qualified to M83513 (slash sheets 28 thru 33)

C6 STrAiGHT PCb TerMiNATioN TYPe CoNfiGurATioNS

E

D

2M Specs

PIN 1

FOR

.190

FOR

.185

SIZE 9-69

(4.82) MAX

SIZE 100

(4.69) MAX

SKT 1

JACKPOST (2 PLCS)

#2-56 UNC-2B (SIZE 9-69)

#4-40 UNC-2B (SIZE 100)

C

2M801

PLUG

A

B

.186 (4.72) MAX

RECEPTACLE

* INTERFACIAL SEAL NOT INCL. FOR PLASTIC SHELL

.198 (5.03) MAX

A

B

F

C

2M803

F

D

E

D

2M804

LEAD LENGTH

.015

FOR SIZE 9-69

.190 (4.82) MAX

FOR SIZE 100

.185 (4.69) MAX

.225 (5.72) MAX

PIN 1

JACKPOST ONLY

C

(P) SHOWN

.015 MIN SKT 1

WASHOUT

AREA

JACKPOST (2 PLCS)

#2-56 UNC-2B (SIZE 9-69)

#4-40 UNC-2B (SIZE

JACKPOST

100)

LEAD LENGTH

.015

AND THREADED

C

INSERT (PT) OPTION SHOWN

THREADED INSERT

.198 (5.03) MAX

.186 (4.72) MAX

2M805

F

2M

Accessories

LEAD LENGTH

.015

.225 (5.72) MAX

.015 MIN

WASHOUT

AREA

LEAD LENGTH

.015

JACKPOST ONLY (P) SHOWN

JACKPOST AND THREADED

INSERT (PT) OPTION SHOWN

THREADED INSERT

HD38999

SIZE

A

MAX

B

±.005 (0.13)

C

MAX

P LUG

R CP T

D

MAX

E

MAX

P LUG

R CP T

F

MAX

Terrapin

Micro-D

Nexus

SIZE

A

MAX

B

±.005 (0.13)

C

MAX

P LUG

R CP T

D

MAX

E

MAX

P LUG

R CP T

F

MAX

Inches (mm)

All dimensions for reference only

156

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
