76155-9683 datasheet, PDF - EEWORLD Datasheet

76155-9683: DescriptionBoard Connector, 12 Row(s), Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin; CategoryThe connector The connector; File Size290KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

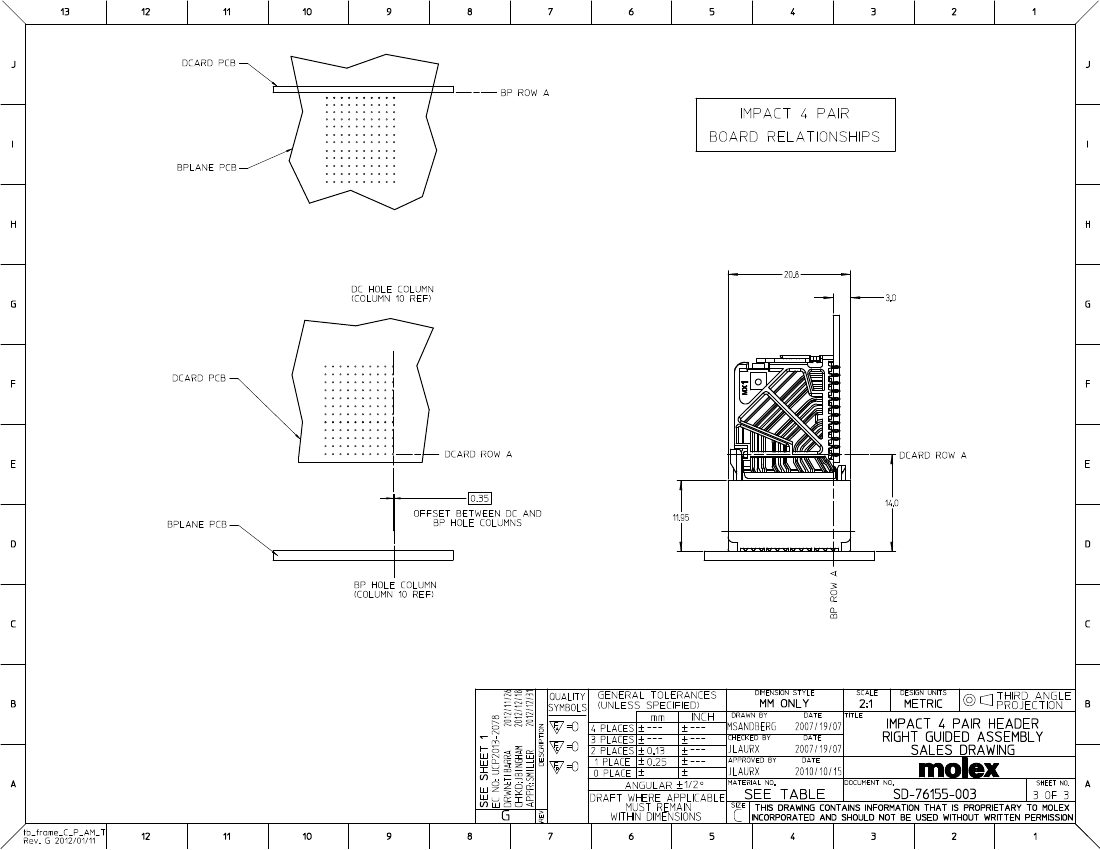

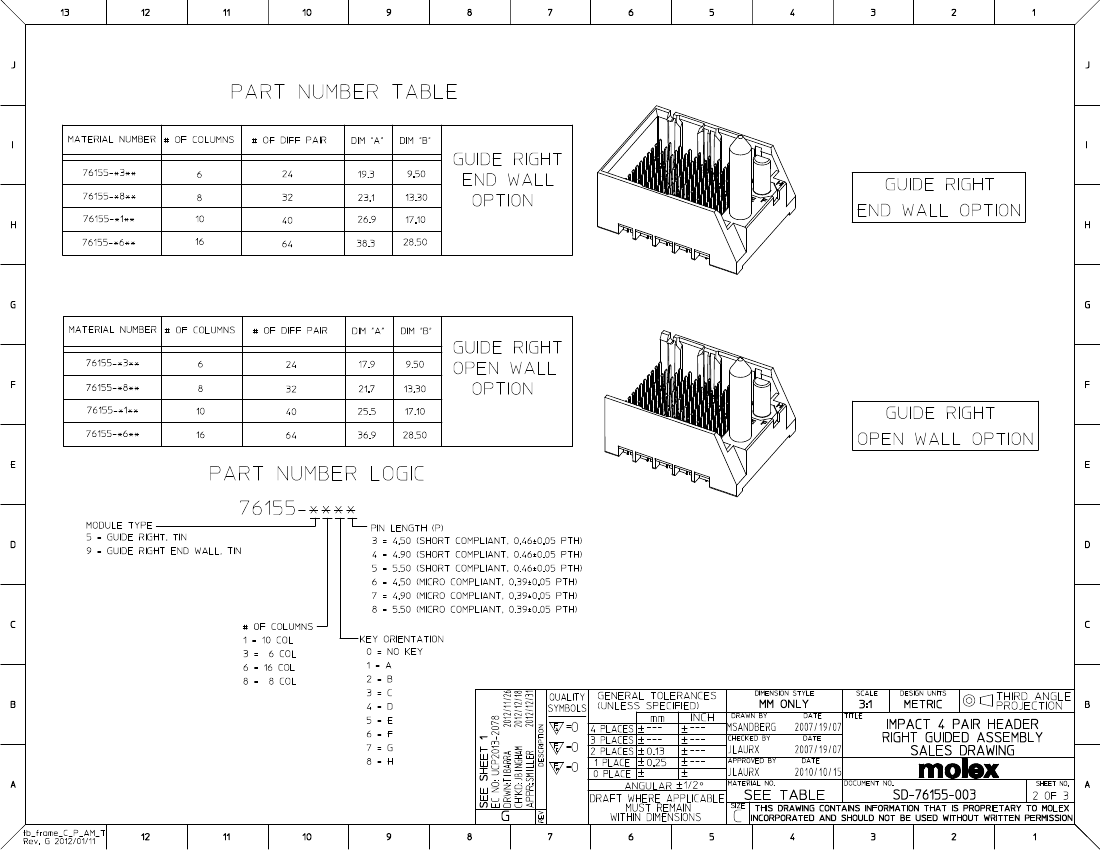

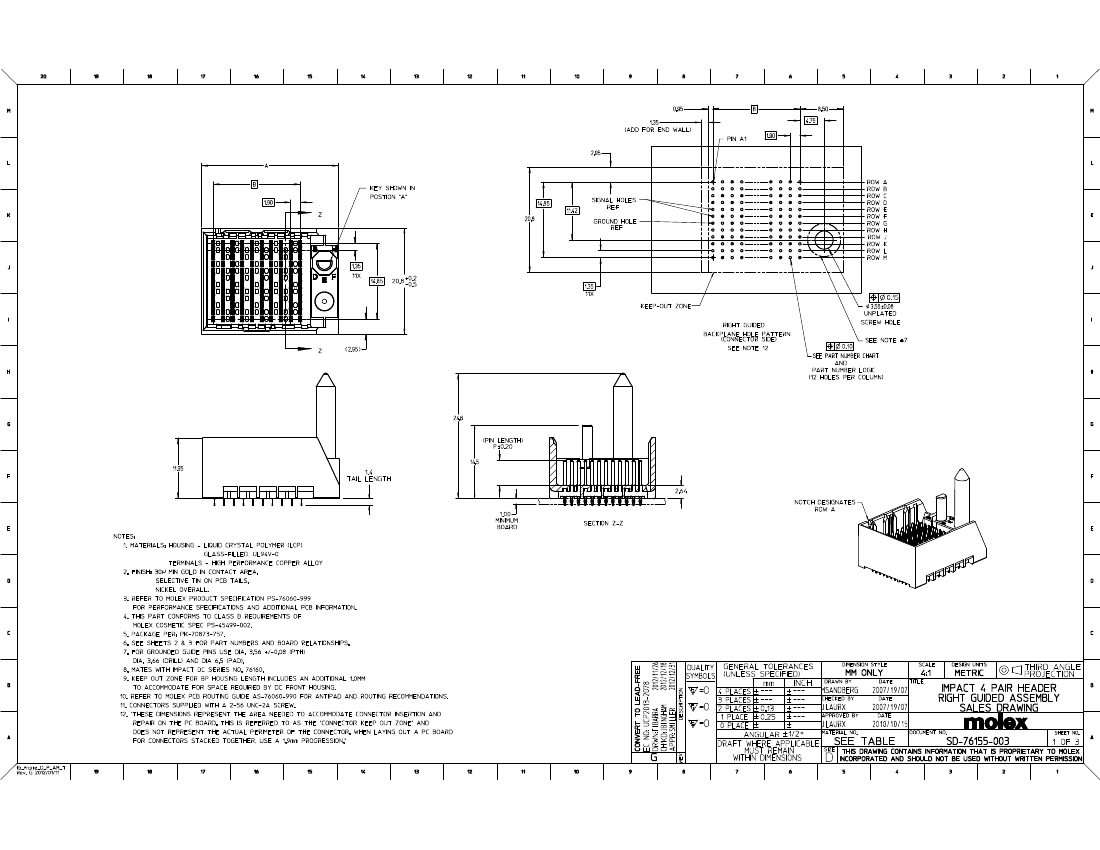

76155-9683 Overview

Board Connector, 12 Row(s), Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin

Parameter Name	Attribute value
Objectid	316155805
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.9
body width	0.819 inch
subject depth	0.47 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.075 inch
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	12
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
Guideline	UL
Terminal length	0.055 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
