85109-1677 datasheet, PDF - EEWORLD Datasheet

85109-1677: DescriptionBoard Connector, 475 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle,; CategoryThe connector The connector; File Size261KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

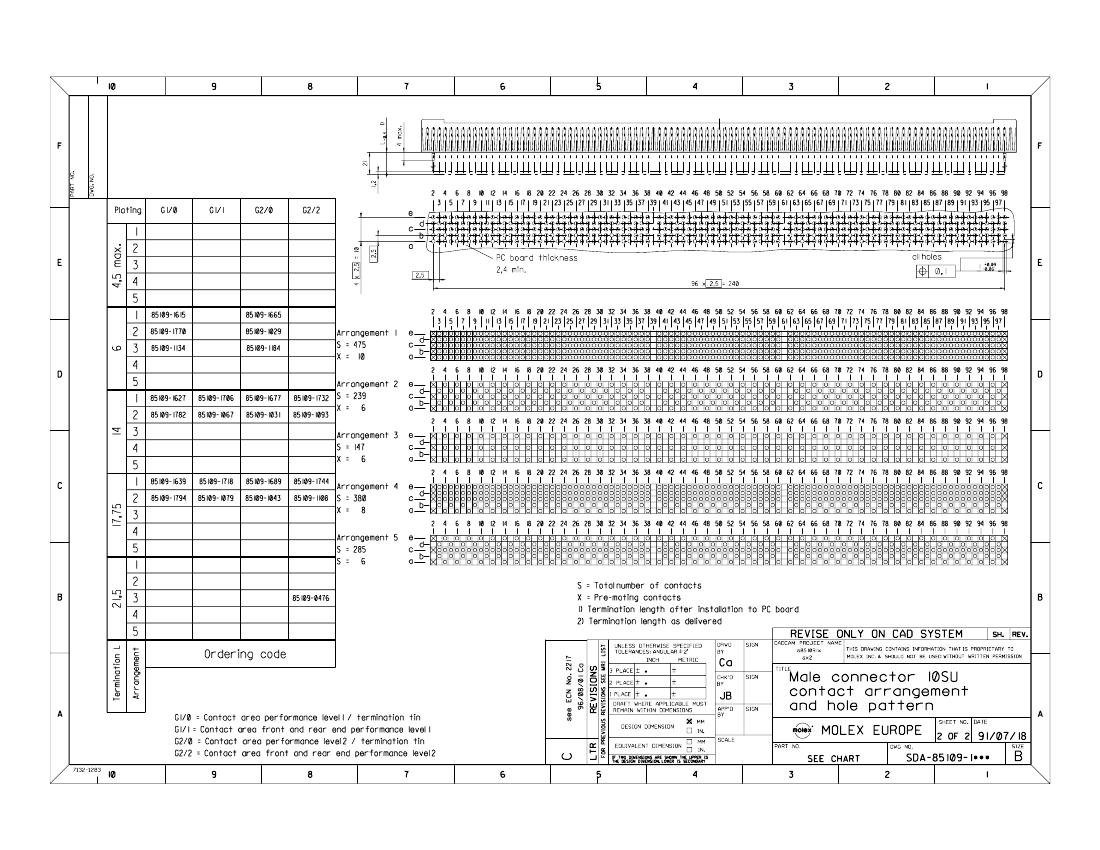

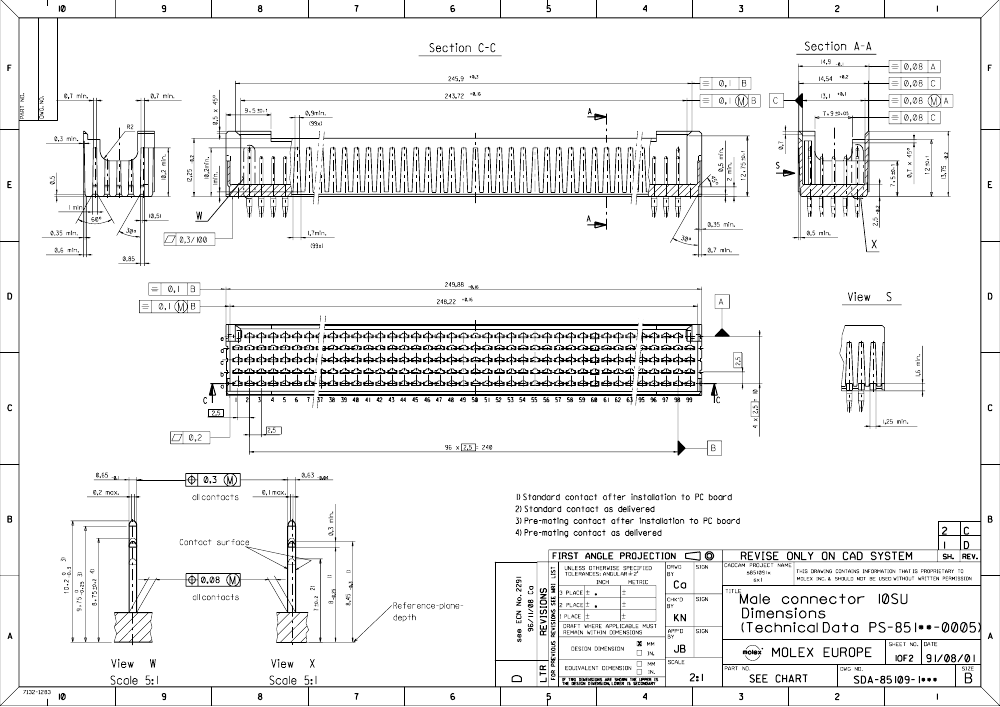

85109-1677 Overview

Board Connector, 475 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	303455573
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Other features	WITH TRAY PACKAGING
body width	0.587 inch
subject depth	0.541 inch
body length	9.838 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
maximum insertion force	.973 N
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	POLYCARBONATE
Plug contact pitch	0.098 inch
Match contact row spacing	0.098 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.4892 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.551 inch
Terminal pitch	2.4892 mm
Termination type	WIRE WRAP
Total number of contacts	475
Evacuation force-minimum value	.5838 N
