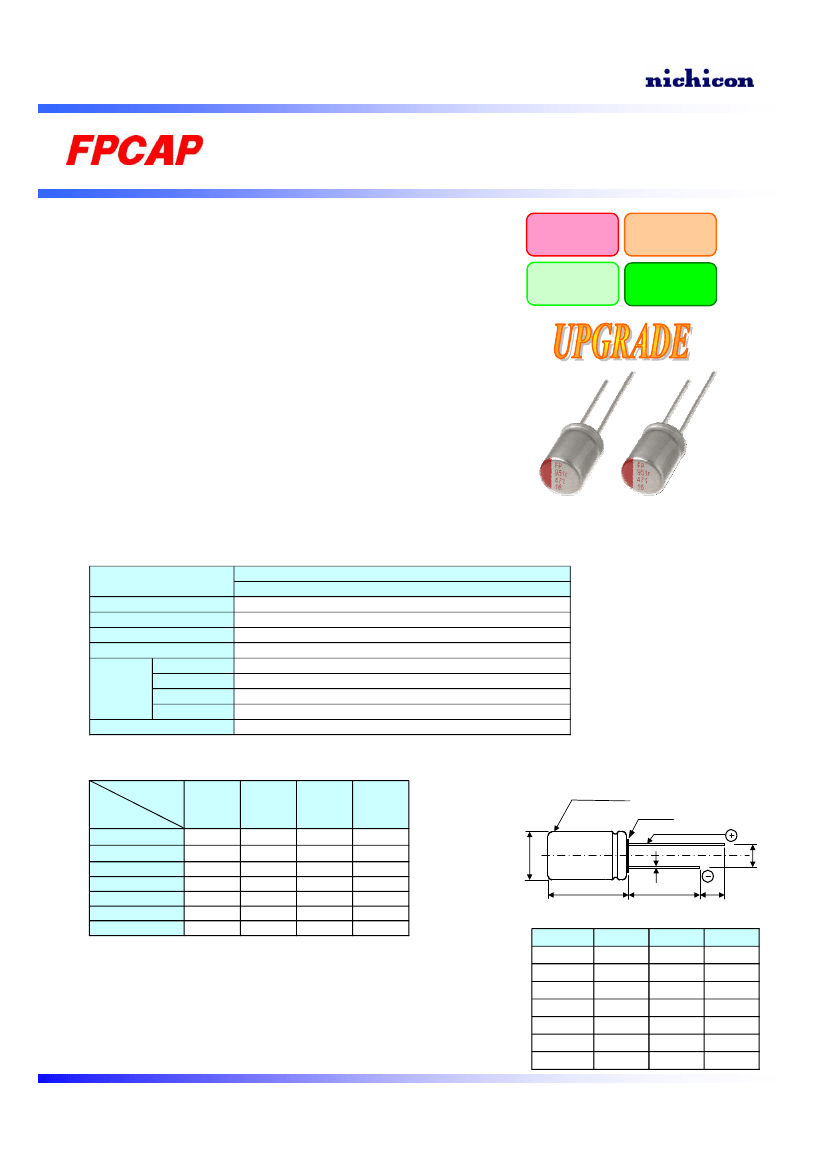

FP-016RE101M-NEPH datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> FP-016RE101M-NEPH

FP-016RE101M-NEPH: DescriptionAluminum Electrolytic Capacitor, Aluminum (dry/solid); CategoryPassive components capacitor; File Size194KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

FP-016RE101M-NEPH Overview

Aluminum Electrolytic Capacitor, Aluminum (dry/solid)

FP-016RE101M-NEPH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1244229626
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (DRY/SOLID)
JESD-609 code	e3
Manufacturer's serial number	NE
Number of terminals	2
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

Ultra

Low ESR

Lead free

Ultra Large

Capacitance

RoHS

Compliance

Features

By using Functional Polymer cathode, Frequency & Temp.

characteristics are greatly improved.

· Low ESR at a high frequency range.

· High ripple current capability.

· Long life and high reliability.

Applications

· Switching Power Supply and DC/DC Converter.

· Back up Power Supplies of CPU(VRM etc.)

· Miniature high Power Supply.

Environmental Correspondence

Any environmental hazardous substances are not used.

The lead free of terminal plating (Sn 100%)

Specifications

Items

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Condition

Capacitance

Endurance

Leakage Current

tan

Failure Rate

Characteristics

-55 to +105°C

2.5 to 16V·

100 to 1200μF

± 20% (M)

105°C 2000Hrs at rated voltage

Within ± 20% of the value before test

Not to exceed the value specified

Not to exceed 150% of the value specified

0.1% / 1000Hrs. Max (60%CL)

Size List

R.V (S.V.)

[V]

[φD×L]

Dimensions

Aluminum Case

Stand off

Wire (Lead free)

P± 0.5

φd

L+α Max

15Min

4Min

[Unit : mm]

φD+0.5Max

Cap. [μF]

100

220

270

470

680

820

1200

2.5

(2.8)

6.3

(7.2)

(11.5)

6.3×10

(18.4)

5×10

5×8

8×11.5

8×6

10×12.5

8×9

D×L

5×8

5×10

6.3×10

8×6

8×9

8×11.5

10×12.5

0.5

0.6

2.0

2.5

3.5

5.0

1.0

1.5

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.
