805-43-090-10-012000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 805-43-090-10-012000

805-43-090-10-012000: Descriptionconn socket 90pos .100" 3row T/H; CategoryThe connector The connector; File Size357KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

805-43-090-10-012000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	805-43-090-10-012000	-	-	View	Buy Now

805-43-090-10-012000 Overview

conn socket 90pos .100" 3row T/H

805-43-090-10-012000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	805
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	90
Base Number Matches	1

Preview

Download Datasheet

View All

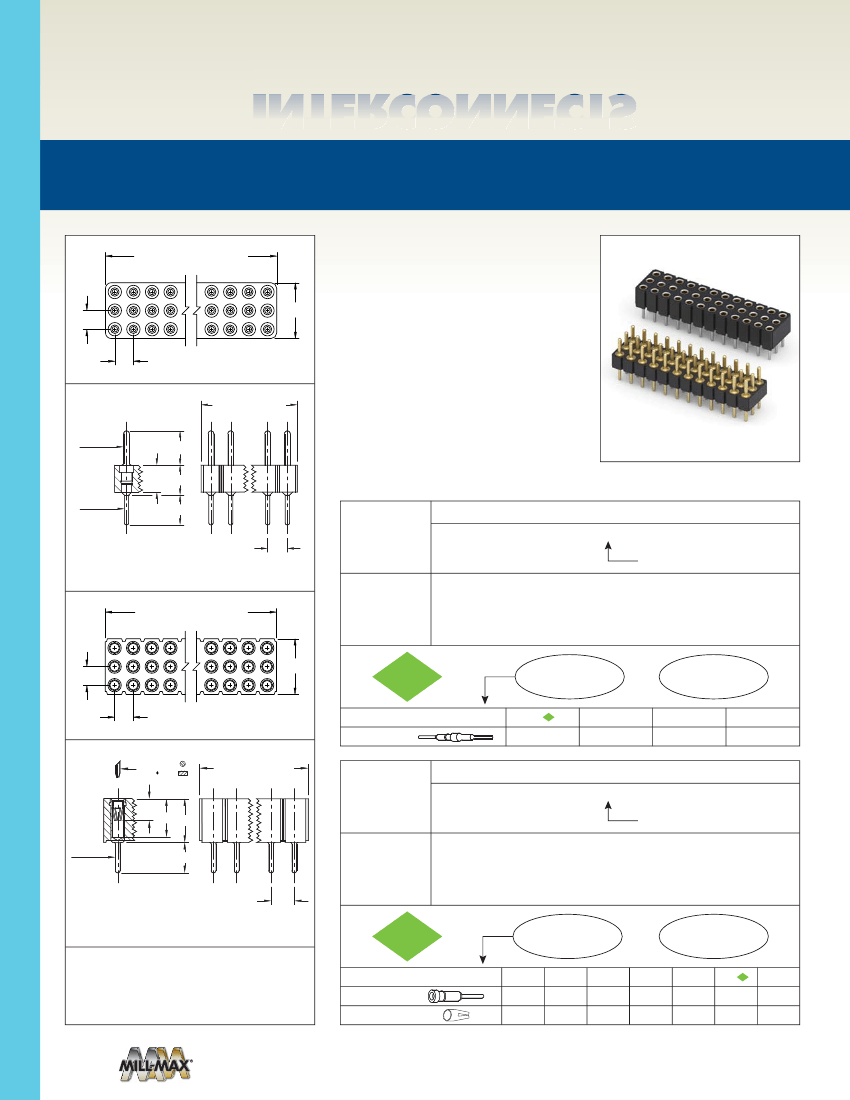

INTERCONNECTS

SERIES 804 & 805 • .100” GRID (.030” DIA. PINS),

HEADERS AND SOCKETS • TRIPLE ROW

•

Series 804 triple row .100” grid headers uses

[Number of

Pins/3] x

.100"

MM #5016 pins. See page 215 for details

•

Series 805 triple row .100” grid sockets uses

.100

(TYP)

.300

MM #1303 pins. See page 180 for details

•

Series 805 triple row .100” grid sockets uses

.100

(TYP)

Hi-Rel, 6-finger BeCu #47 contact rated at

4.5 amps. See page 256 for details

[Number

of Pins/3]

.100

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

.030 DIA.

.142

.110

.125

ORDERING INFORMATION

Series 804...002

.100

.024 DIA.

.133

Straight Pin Header

804-10-0_ _-10-002000

FIG. 1

[Number of

Pins/3] x .100"

Specify number of pins

09-96

.100

(TYP)

.300

RoHS - 2

2011/65/EU

XX=Plating Code

See Below

”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.100

(TYP)

SPECIFY PLATING CODE XX=

Pin Plating

.025-.037

.025 .025

[Number of Pins/3]

X .100

Series 805...012

Straight Pin Socket

805-43-0_ _-10-012000

FIG. 2

.088

.146 .165

.022 DIA.

Specify number of pins

09-96

.125

PAGE 60 | INTERCONNECTS

.100

FIG. 2

RoHS - 2

2011/65/EU

XX=Plating Code

See Below

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
