PWB20500FMGNKWS datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PWB20500FMGNKWS

PWB20500FMGNKWS: DescriptionFixed Resistor, Thin Film, 1W, 2050ohm, 100V, 1% +/-Tol, -250,250ppm/Cel, 0707,; CategoryPassive components The resistor; File Size87KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

PWB20500FMGNKWS Overview

Fixed Resistor, Thin Film, 1W, 2050ohm, 100V, 1% +/-Tol, -250,250ppm/Cel, 0707,

PWB20500FMGNKWS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	992034238
Reach Compliance Code	unknown
Country Of Origin	USA
ECCN code	EAR99
YTEOL	7.4
structure	Chip
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.254 mm
Package length	1.781 mm
Package form	SMT
Package width	1.781 mm
method of packing	Waffle Pack
Rated power dissipation(P)	1 W
resistance	2050 Ω
Resistor type	FIXED RESISTOR
series	PWB
size code	0707
technology	THIN FILM
Temperature Coefficient	250 ppm/°C
Tolerance	1%
Operating Voltage	100 V

Preview

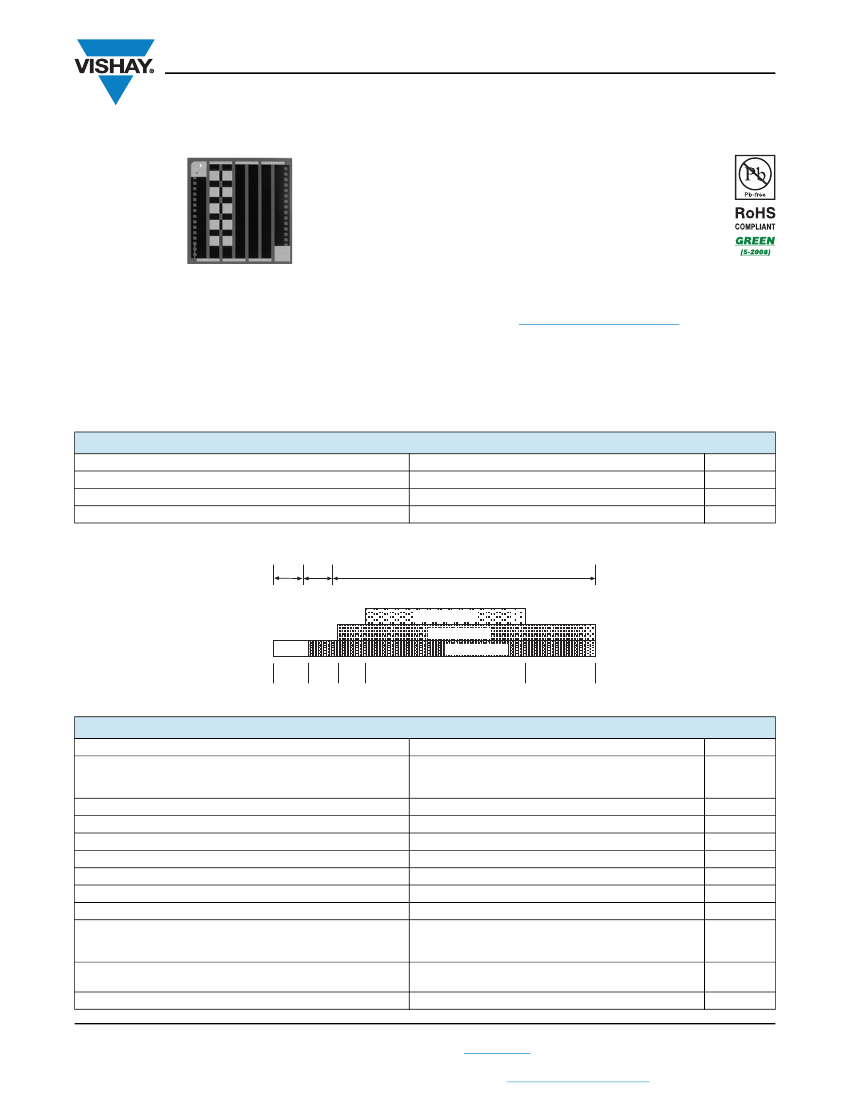

Download Datasheet

View All

PWB

www.vishay.com

Vishay Electro-Films

Thin Film Power Resistors

FEATURES

•

Wire bondable

Power: 1 W

Chip size: 0.070 inches square

Case: 0707

Resistance range: 0.3



to 20 k

Oxidized silicon substrate for good power dissipation

Resistor material: Tantalum nitride, self-passivating

Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

Product may not be to scale

The PWB series resistor chips offer a 1 W power rating in a

relatively small size. They offer one of the best combinations

of size and power available.

The PWBs are manufactured using Vishay Electro-Films

(EFI) sophisticated thin film equipment and manufacturing

technology. The PWBs are 100 % electrically tested and

visually inspected to MIL-STD-883, method 2032, class H or

class K.

APPLICATIONS

The PWB resistor chips are used mainly in higher power

circuits of amplifiers where increased power loads require a

more specialized resistor.

TEMPERATURE COEFFICIENT OF RESISTANCE, VALUES, AND TOLERANCES

PARAMETER

Total Resistance Range

Standard Tolerances

TCR

VALUE

0.3 to 20K

± 0.5, ± 1, ± 5

± 50, ± 100, ± 250

UNIT



ppm/°C

Tightest Standard Tolerance Available

0.5 %

± 50 ppm/°C

± 100 ppm/°C

± 250 ppm/°C

0.3

10 kΩ

20 kΩ

* ± 600 ppm/C R < 2

STANDARD ELECTRICAL SPECIFICATIONS

PARAMETER

Noise, MIL-STD-202, Method 308

100



to 250 k

< 100



or > 251 k

Moisture Resistance, MIL-STD-202, Method 106

Stability, 1000 h, + 125 °C, 500 mW

Operating Temperature Range

Thermal Shock, MIL-STD-202, Method 107, Test Condition F

High Temperature Exposure, + 150 °C, 100 h

Dielectric Voltage Breakdown

Insulation Resistance

Operating Voltage

Steady State

5 x Rated Power

DC Power Rating at + 70 °C (Derated to zero at + 175 °C)

(Conductive epoxy die attach to alumina substrate)

5 x Rated Power Short-Time Overload, + 25 °C, 5 s

Revision: 04-Mar-13

For technical questions, contact:

efi@vishay.com

VALUE

- 35 typ.

- 20 typ.

± 0.5 max.

R/R

± 0.5 max.

R/R

- 55 to + 125

± 0.1 max.

R/R

± 0.2 max.

R/R

200

min.

UNIT

°C



Document Number: 61021

100 max.

200 max.

± 0.25 max.

R/R

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice
