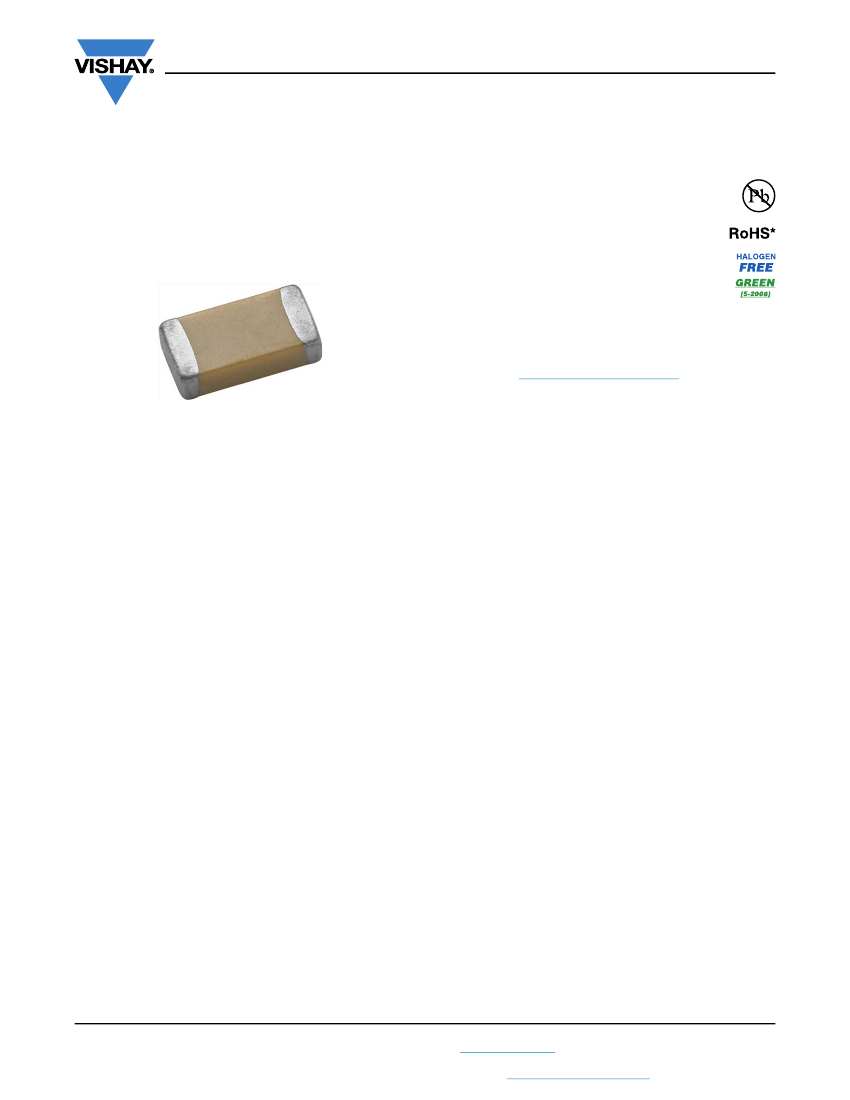

VJ HIFREQ Series
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer
Ceramic Chip Capacitors for High Frequency
FEATURES
Case size 0402, 0603, 0805
Available
High frequency
Ultra-stable dielectric material
Available
Lead (Pb)-free terminations code “X”
Tin/lead termination code “L”
Surface mount, wet build process
Available
Reliable Noble Metal Electrode (NME) system
Made with a combination of design, materials and tight
process control to achieve very high field reliability
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and/or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information/tables in this datasheet for details.
•
•
•
•
•
•
•
•
APPLICATIONS
•
•
•
•
•
•
•
RF and microwave
Broadband communication
Satellite communication
Base stations
Medical instrumentation and test
Military devices (radar, communication, etc.)
Wireless devices
ELECTRICAL SPECIFICATIONS
Note
• Electrical characteristics at 25 °C unless otherwise specified
Operating Temperature:
- 55 °C to + 125 °C
Capacitance Range:
0402: 1.0 pF to 82 pF
0603: 1.0 pF to 470 pF
0805: 1.0 pF to 1.5 nF
Voltage Rating:
25 V
DC
to 250 V
DC
Temperature Coefficient of Capacitance (TCC):
C0G (D): 0 ppm/°C ± 30 ppm/°C from - 55 °C to + 125 °C
with zero (0) V
DC
applied
Dissipation Factor (DF):
C0G (D): 0.05 % max. at 1.0 V
RMS
and 1 MHz
for values
1000 pF
C0G (D): 0.05 % max. at 1.0 V
RMS
and 1 kHz
for values > 1000 pF
Aging Rate:
0 % maximum per decade
Insulation Resistance (IR):
At + 25 °C and rated voltage 100 000 M minimum or
1000
F,
whichever is less
At + 125 °C and rated voltage 10 000 M minimum or
100
F,
whichever is less
Dielectric Strength Test:
Performed per method 103 of EIA-198-2-E.
Applied test voltages:
200 V
DC
-rated: Min. 250 % of rated voltage
> 200 V
DC
-rated: Min. 200 % of rated voltage
Revision: 04-Nov-13
Document Number: 45071
1
For technical questions, contact:
mlccrf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ HIFREQ Series
www.vishay.com
Vishay Vitramon
CAPACITANCE
MINIMUM
1.0 pF
1.0 pF
1.0 pF
MAXIMUM
82 pF
470 pF
1.5 nF
QUICK REFERENCE DATA
DIELECTRIC
CASE
0402
0603
0805
MAXIMUM VOLTAGE
(V)
200
250
250
D = HIFREQ
Note
• For values below 1.0 pF, contact
mlcc@vishay.com
ORDERING INFORMATION
VJ0603
CASE
CODE
0402
0603
0805
D
DIELECTRIC
D = HIFREQ
1R0
CAPACITANCE
NOMINAL CODE
Expressed in
picofarads (pF).
The first two digits
are significant, the
third is a multiplier.
An “R” indicates a
decimal point.
Examples:
1R0 = 1.0 pF
B
CAPACITANCE
TOLERANCE
B = ± 0.10 pF
C = ± 0.25 pF
D = ± 0.50 pF
F=±1%
G=±2%
J=±5%
K = ± 10 %
M = ± 20 %
Note
Details see
“Selection
Chart”
X
TERMINATION
E = AgPd
(2)
X = Ni barrier
100 % tin plate
matte finish
N = Non-magnetic
L = Ni barrier
with tin lead
plated finish
min. 4 % lead
B
DC VOLTAGE
RATING
(1)
X = 25 V
A = 50 V
B = 100 V
C = 200 V
P = 250 V
A
MARKING
A = No
marking
T = 7" reel/plastic tape
C = 7" reel/paper tape
O = 7" reel/flamed paper tape
J = 7" reel (low quantity)
R = 11 1/4"/13" reel/
plastic tape
P = 11 1/4"/13" reel/
paper tape
I = 11 1/4"/13" reel/
flamed paper tape
B = Bulk
Note
“I” and “O” is used for “E”/”N”
termination code
Notes
(1)
DC voltage rating should not be exceeded in application
(2)
Termination code “E” is for conductive epoxy assembly
C
PACKAGING
ENVIRONMENTAL STATUS
TERMINATION CODE
X
E
N
L
TERMINATION DESCRIPTION
Ni barrier 100 % tin plated matte finish
AgPd
Non-magnetic
Ni barrier 100 % tin plated matte finish min. 4 % lead
RoHS COMPLIANT
Yes
Yes
Yes
No
VISHAY GREEN
Yes
Yes
No
No
DIMENSIONS
in inches (millimeters)
L
W
T
MAX.
P
CASE
CODE
0402
0603
0805
STYLE
VJ0402
VJ0603
VJ0805
LENGTH
(L)
0.040 ± 0.004
(1.02 ± 0.10)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
WIDTH
(W)
0.020 ± 0.004
(0.51 ± 0.10)
0.031 ± 0.005
(0.80 ± 0.12)
0.049 ± 0.008
(1.25 ± 0.20)
MAXIMUM
THICKNESS (T)
0.021
(0.61)
0.037
(0.94)
0.057
(1.45)
TERMINATIONS PAD (P)
MINIMUM
MAXIMUM
0.004
0.016
(0.10)
(0.41)
0.012
0.018
(0.30)
(0.46)
0.010
0.028
(0.25)
(0.71)
Revision: 04-Nov-13
Document Number: 45071
2
For technical questions, contact:
mlccrf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ HIFREQ Series
www.vishay.com
Vishay Vitramon
SELECTION CHART
DIELECTRIC (VISHAY CODE)
C0G (D)
STYLE
VJ0402
CASE CODE
0402
VOLTAGE (V
DC
)
25
50
100
VOLTAGE CODE
X
A
B
CAP. CODE
CAP.
••
••
••
1R0
1.0 pF
1R1
1.1 pF
••
••
••
1R2
1.2 pF
••
••
••
1R3
1.3 pF
••
••
••
••
••
••
1R4
1.4 pF
1R5
1.5 pF
••
••
••
1R6
1.6 pF
••
••
••
••
••
••
1R7
1.7 pF
1R8
1.8 pF
••
••
••
1R9
1.9 pF
••
••
••
2R0
2.0 pF
••
••
••
2R1
2.1 pF
••
••
••
2R2
2.2 pF
••
••
••
2R4
2.4 pF
••
••
••
2R7
2.7 pF
••
••
••
3R0
3.0 pF
••
••
••
3R3
3.3 pF
••
••
••
3R6
3.6 pF
••
••
••
3R9
3.9 pF
••
••
••
4R3
4.3 pF
••
••
••
4R7
4.7 pF
••
••
••
5R1
5.1 pF
••
••
••
5R6
5.6 pF
••
••
••
6R2
6.2 pF
••
••
••
6R8
6.8 pF
••
••
••
7R5
7.5 pF
••
••
••
8R2
8.2 pF
••
••
••
9R1
9.1 pF
••
••
••
100
10 pF
••
••
••
110
11 pF
••
••
••
120
12 pF
••
••
••
130
13 pF
••
••
••
150
15 pF
••
••
••
180
18 pF
••
••
••
200
20 pF
••
••
••
220
22 pF
••
••
••
240
24 pF
••
••
••
270
27 pF
••
••
••
300
30 pF
••
••
330
33 pF
••
••
360
36 pF
••
••
390
39 pF
••
••
430
43 pF
••
••
470
47 pF
••
••
510
51 pF
••
••
560
56 pF
••
••
620
62 pF
••
680
68 pF
••
750
75 pF
••
820
82 pF
••
910
91 pF
101
100 pF
111
110 pF
121
120 pF
Notes
RoHS-compliant except when supplied with lead (Pb)-containing termination, code “L”
•• Paper carrier • Plastic carrier tape
200
C
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
TOLERANCE
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
Revision: 04-Nov-13
Document Number: 45071
3
For technical questions, contact:
mlccrf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ HIFREQ Series
www.vishay.com
Vishay Vitramon
SELECTION CHART
DIELECTRIC (VISHAY CODE)
C0G (D)
STYLE
VJ0603
CASE CODE
0603
25
50
100
VOLTAGE (V
DC
)
VOLTAGE CODE
X
A
B
CAP. CODE
CAP.
••
••
••
1R0
1.0 pF
1R1
1.1 pF
••
••
••
1R2
1.2 pF
••
••
••
1R3
1.3 pF
••
••
••
1R4
1.4 pF
••
••
••
1R5
1.5 pF
••
••
••
1R6
1.6 pF
••
••
••
1R7
1.7 pF
••
••
••
1R8
1.8 pF
••
••
••
1R9
1.9 pF
••
••
••
2R0
2.0 pF
••
••
••
2R1
2.1 pF
••
••
••
2R2
2.2 pF
••
••
••
2R4
2.4 pF
••
••
••
2R7
2.7 pF
••
••
••
3R0
3.0 pF
••
••
••
3R3
3.3 pF
••
••
••
3R6
3.6 pF
••
••
••
3R9
3.9 pF
••
••
••
4R3
4.3 pF
••
••
••
4R7
4.7 pF
••
••
••
5R1
5.1 pF
••
••
••
5R6
5.6 pF
••
••
••
6R2
6.2 pF
••
••
••
6R8
6.8 pF
••
••
••
7R5
7.5 pF
••
••
••
8R2
8.2 pF
••
••
••
9R1
9.1 pF
••
••
••
100
10 pF
••
••
••
110
11 pF
••
••
••
120
12 pF
••
••
••
130
13 pF
••
••
••
150
15 pF
••
••
••
180
18 pF
••
••
••
200
20 pF
••
••
••
220
22 pF
••
••
••
240
24 pF
••
••
••
270
27 pF
••
••
••
300
30 pF
••
••
••
330
33 pF
••
••
••
360
36 pF
••
••
••
390
39 pF
••
••
••
430
43 pF
••
••
••
470
47 pF
••
••
••
510
51 pF
••
••
••
560
56 pF
••
••
••
620
62 pF
•
•
•
680
68 pF
•
•
•
750
75 pF
•
•
•
820
82 pF
•
•
•
910
91 pF
•
•
•
Notes
RoHS-compliant except when supplied with lead (Pb)-containing termination, code “L”
•• Paper carrier • Plastic carrier tape
Revision: 04-Nov-13
200
C
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
•
•
•
•
•
250
P
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
•
•
•
•
•
TOLERANCE
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
B, C, D
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
Document Number: 45071
4
For technical questions, contact:
mlccrf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ HIFREQ Series
www.vishay.com
Vishay Vitramon
C0G (D)
VJ0603
0603
100
B
•
•
•
•
•
TOLERANCE
SELECTION CHART
DIELECTRIC (VISHAY CODE)
STYLE
CASE CODE
VOLTAGE (V
DC
)
VOLTAGE CODE
CAP. CODE
CAP.
101
100 pF
111
121
131
151
181
201
221
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
112
122
132
152
182
110 pF
120 pF
130 pF
150 pF
180 pF
200 pF
220 pF
240 pF
270 pF
300 pF
330 pF
360 pF
390 pF
430 pF
470 pF
510 pF
560 pF
620 pF
680 pF
750 pF
820 pF
910 pF
1.0 nF
1.1 nF
1.2 nF
1.3 nF
1.5 nF
1.8 nF
25
X
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
50
A
•
•
•
•
•
•
•
•
•
•
•
•
200
C
•
250
P
•
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
F, G, J, K, M
Notes
RoHS-compliant except when supplied with lead (Pb)-containing termination, code “L”
•• Paper carrier • Plastic carrier tape
Revision: 04-Nov-13
Document Number: 45071
5
For technical questions, contact:
mlccrf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
