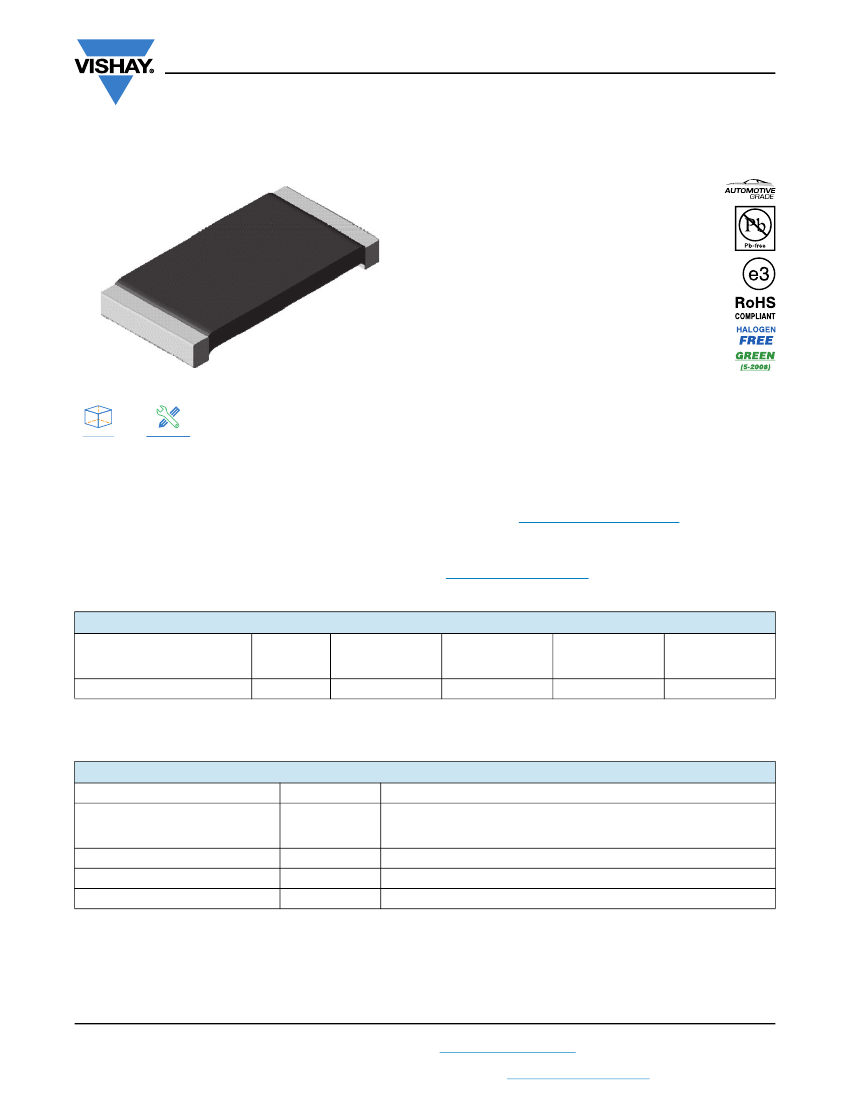

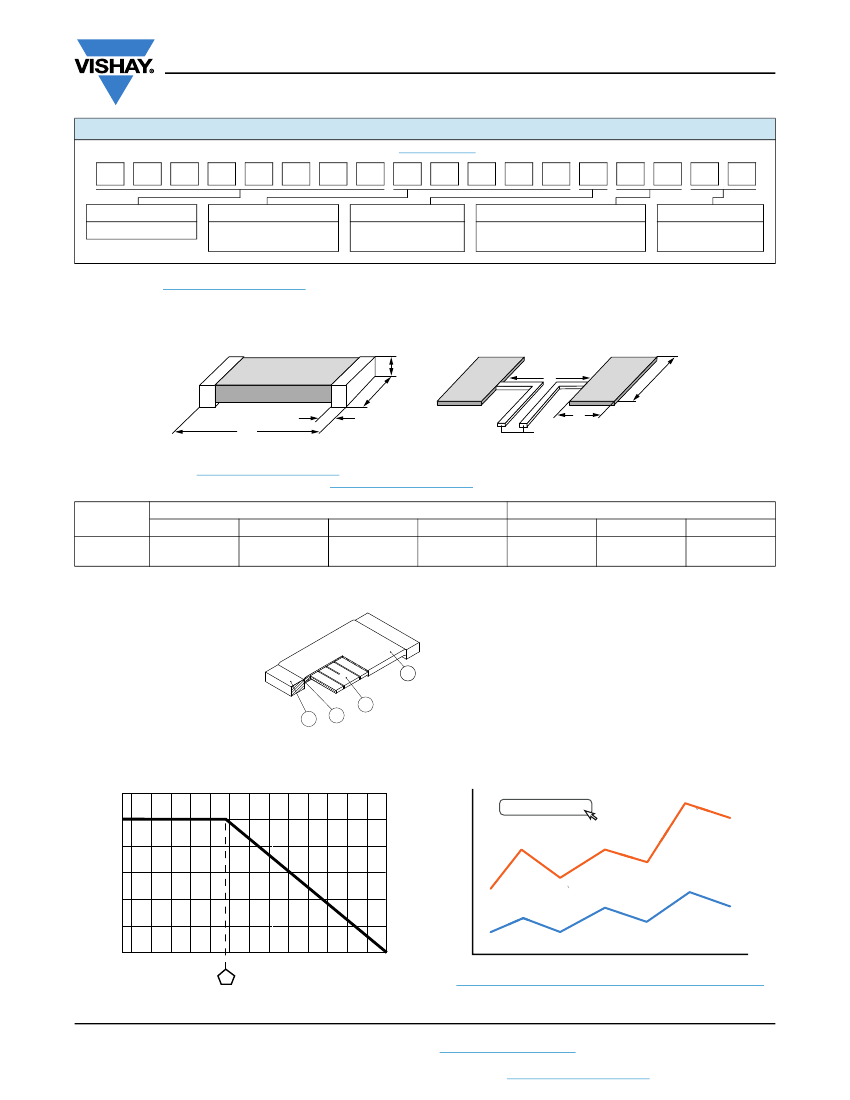

WSLT2512
www.vishay.com
Vishay Dale
Power Metal Strip
®
Resistors, High Temperature (275 °C),
Low Value (Down to 0.01
Ω),
Surface Mount
FEATURES
• Ideal for all types of current sensing, voltage
division and pulse applications including
switching and linear power supplies,
instruments and power amplifiers
• Proprietary processing technique produces
extremely low resistance values
• All welded construction of the Power Metal
Strip
®
resistors are ideal for all types of current
sensing,
voltage
division
and
pulse
applications
• Sulfur resistance by construction that is
unaffected by high sulfur environments
• Specially selected and stabilized materials allow for high
temperature derating (to +275 °C)
• Solid metal nickel-chrome alloy resistive element with low
TCR (< 20 ppm/°C)
• Very low inductance (< 5 nH)
• Excellent frequency response to 50 MHz
• Low thermal EMF (< 3 μV/°C)
• AEC-Q200 qualified
(1)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
LINKS TO ADDITIONAL RESOURCES
D
D
3
3
3D Models
Design Tools
Notes
• This datasheet provides information about parts that are RoHS-compliant and / or parts that are non-RoHS-compliant. For example, parts
with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details
• Follow link to Overview of Automotive Grade Products for more details:
www.vishay.com/doc?49924
(1)
Flame retardance test may not be applicable to some resistor technologies
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL MODEL
WSLT2512
SIZE
2512
POWER RATING
P
70 °C
W
1.0
(1)
TOLERANCE
±%
0.5, 1.0
RESISTANCE
VALUE RANGE
Ω
0.01 to 0.50
WEIGHT
(typical)
g/1000 pieces
63.6
Notes
• Part marking: DALE, value, tolerance code
(1)
For values above 0.1
Ω
derate linearly to 80 % rated power at 0.5
Ω
TECHNICAL SPECIFICATIONS
PARAMETER
Component temperature coefficient
(including terminal)
(1)
measured from
-55 °C to +150 °C
Element TCR
(2)
Operating temperature range
Maximum working voltage
(3)
UNIT
ppm/°C
ppm/°C
°C
V
WSL RESISTOR CHARACTERISTICS
± 75
< 20
-65 to +275
(P x
R)
1/2
Notes
(1)
Component TCR - total TCR that includes the TCR effects of the resistor element and the copper terminal
(2)
Element TCR - only applies to the alloy used for the resistor element; refer to item 1 in the construction illustration on the following page
(3)
Maximum working voltage - the WSL is not voltage sensitive, but is limited by power / energy dissipation and is also not ESD sensitive
Revision: 29-Jun-2021
Document Number: 30121
1
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSLT2512
www.vishay.com
GLOBAL PART NUMBER INFORMATION
Global Part Numbering Example: WSLT2512R0100FEA
(visit
www.vishay.net
Vishay Dale parts numbering manual for all options)
Vishay Dale
W
S
L
T
2
5
1
2
R
0
1
0
0
F
E
A
SPECIAL
Reserved for
future specials
GLOBAL MODEL
WSLT2512
RESISTANCE VALUE
(1)
R
= decimal
R0100
= 0.01
Ω
TOLERANCE CODE
D
= ± 0.5 %
F
= ± 1.0 %
PACKAGING CODE
(2)
EA
= lead (Pb)-free, tape / reel
EK
= lead (Pb)-free, bulk
Notes
(1)
WSL marking (www.vishay.com/doc?30327)
(2)
Packaging code: EB (lead (Pb)-free) and TB (tin / lead) are non-standard packaging codes designating 1000 piece reels. These non-standard
packaging codes are identical to our standard EA (lead (Pb)-free) and TA (tin / lead), except that they have a package quantity of 1000 pieces
DIMENSIONS
in inches (millimeters)
H
l
W
T
L
a
Typical sensing traces
b
Notes
• 3D models available:
www.vishay.com/doc?30338
• Surface mount solder profile recommendations:
www.vishay.com/doc?31052
MODEL
WSLT2512
DIMENSIONS
L
0.250 ± 0.010
(6.35 ± 0.254)
W
0.125 ± 0.010
(3.18 ± 0.254)
H
0.025 ± 0.010
(0.635 ± 0.254)
T
0.030 ± 0.010
(0.762 ± 0.254)
a
0.065
(1.65)
SOLDER PAD DIMENSIONS
b
0.145
(3.68)
l
0.160
(4.06)
WELDED CONSTRUCTION
2512
1) Resistive element:
solid metal nickel-chrome
or manganese-copper
alloy resistive element with
low TCR (< 20 ppm/°C)
2) Plated terminal: Solid copper,
100 % Sn (100 μ" min.) with
100 % Ni (20 μ" min.) under
layer finish
3) Terminal / element weld
4) Silicone coating with ink print
4
1
2
3
DERATING
Rated Power in %
120
PULSE CAPABILITY
click to get started
100
80
60
40
20
0
- 65
S
L
U
IL
- 25
25
75
70
125
175
225
275
Ambient Temperature in °C
VE
TI
A
TR
S
S
E
O
RP
PU
LY
ON
www.vishay.com/resistors/power-metal-strip-calculator
Revision: 29-Jun-2021
Document Number: 30121
2
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSLT2512
www.vishay.com
Vishay Dale
PERFORMANCE
TEST
Thermal shock
Short time overload
Low temperature operation
High temperature exposure
Bias humidity
Mechanical shock
Vibration
Load life at 70 °C
Load life at 150 °C
Resistance to solder heat
Moisture resistance
CONDITIONS OF TEST
-55 °C to +150 °C, 1000 cycles, 15 min at each extreme
5 x rated power for 5 s
-65 °C for 24 h
1000 h at +275 °C
+85 °C, 85 % RH, 10 % bias, 1000 h
100
g’s
for 6 ms, 5 pulses
Frequency varied 10 Hz to 2000 Hz in 1 min, 3 directions, 12 h
1000 h, 1.5 h “ON”, 0.5 h “OFF”
1000 h, 1.5 h “ON”, 0.5 h “OFF”
260 °C solder, 10 s to 12 s dwell, 25 mm/s emergence
MIL-STD-202, method 106, 0 % power, 7b not required
TEST LIMITS
± 0.5 %
± 0.5 %
± 0.5 %
± 1.0 %
± 0.5 %
± 0.5 %
± 0.5 %
± 1.0 %
± 1.0 %
± 0.5 %
± 1.0 %
PACKAGING
MODEL
WSLT2512
REEL
TAPE WIDTH
12 mm / embossed plastic
DIAMETER
178 mm / 7"
PIECES/REEL
2000
CODE
EA
Notes
• Embossed carrier tape per EIA-481
(1)
Additional packaging details at
www.vishay.com/doc?20051
Revision: 29-Jun-2021
Document Number: 30121
3
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
