OMNIMATE Signal - series LM
LM 5.08/06/180 3.5SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
PCB terminal with proven clamping yoke connection at
5.00 and 5.08 mm pitch. Conductor outlet direction 90°,
135° and 180°. Suitable for conductor cross-sections up
to 2.5 mm².
• 0.13 - 2.50 mm² (IEC) / 26 - 14 AWG (UL)
• 630 V (IEC) / 300 V (UL)
• 17.5 A (IEC) / 20 A (UL)
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
Product data
Packaging
LM 5.08/06/180 3.5SN BK BX
9994780000
PCB terminal, 5.08 mm, No. of poles: 6, 180°,
Solder pin length (l): 3.5 mm, tinned, Black,
Clamping yoke connection, Clamping range, rated
connection, max.: 2.5 mm², Box
4032248377930
50 pc(s).
IEC: 630 V / 17.5 A / 0.2 - 2.5 mm²
UL: 300 V / 15 A / AWG 24 - AWG 14
Box
Creation date October 9, 2013 11:13:57 PM CEST
Catalogue status / We reserve the right to make technical changes.
1
Data sheet...
OMNIMATE Signal - series LM
LM 5.08/06/180 3.5SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
7.54 g
Dimensions and weights
Net weight
System characteristics
Product family
OMNIMATE Signal - series
LM
Solder connection
5.08 mm
6
24
1.3 mm
1
DIN 5264
0.5 Nm
6 mm
1 inch
Safe from finger touch
Wire connection method
Clamping yoke connection
Conductor outlet direction
180°
Pitch in inches (P)
0.2 inch
Fitted by customer
Yes
Solder pin length (l)
3.5 mm
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
Screwdriver blade
0.6 x 3.5
Tightening torque, min.
0.4 Nm
Clamping screw
M 2.5
L1 in mm
25.4 mm
Touch-safe protection acc. to DIN VDE
0470
IP 10
Mounting onto the PCB
Pitch in mm (P)
No. of poles
Max. adjacent poles per row
Solder eyelet hole diameter (D)
Number of solder pins per pole
Screwdriver blade standard
Tightening torque, max.
Stripping length
L1 in inches
Touch-safe protection acc. to DIN VDE
57 106
Material data
Insulating material
UL 94 flammability rating
Temperature of glow-wire test
Contact material
Contact base material
Wemid (PA)
V-0
750 °C
Cu-Leg
Cu-Leg
Colour
CTI
Duration of glow-wire test
Contact surface
Black
≥ 600
30 s
tinned
Connectable conductors
Clamping range, rated connection, min. 0.2 mm²
Wire connection cross section AWG,
min.
AWG 24
Solid, min. H05(07) V-U
0.2 mm²
Flexible, min. H05(07) V-K
0.2 mm²
w. wire end ferrule, DIN 46228 pt 1, min
0.25 mm²
w. plastic collar ferrule, DIN 46228 pt 4,
min.
0.25 mm²
Plug gauge acc. to EN 60999 a x b; Ø 2.4 mm x 1.5 mm; 1.9mm
Clamping range, rated connection, max. 2.5 mm²
Wire connection cross section AWG,
max.
AWG 14
Solid, max. H05(07) V-U
2.5 mm²
Flexible, max. H05(07) V-K
1.5 mm²
w. wire end ferrule, DIN 46228 pt 1,
max.
1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4,
max.
1.5 mm²
DIN IEC rating data
Rated current, min. no. of poles
(TU=20°C)
Rated current, number of poles
(Tu=40°C), min
Rated voltage for surge voltage class
pollution degree II/2
Rated voltage for surge voltage class
pollution degree III/3
Rated impulse voltage for surge voltage
classpollution degree III/2
Short-time withstand current resistance
17.5 A
17.5 A
630 V
250 V
4 kV
3 x 1s with 120 A
Rated current, max. no. of poles
(Tu=20°C)
Rated current, number of poles
(Tu=40°C), max.
Rated voltage for surge voltage class
pollution degree III/2
Rated impulse voltage for surge voltage
classpollution degree II/2
Rated impulse voltage for surge voltage
classcontamination degree III/3
16 A
14.2 A
320 V
4 kV
4 kV
Creation date October 9, 2013 11:13:57 PM CEST
Catalogue status / We reserve the right to make technical changes.
2
Data sheet...
OMNIMATE Signal - series LM
LM 5.08/06/180 3.5SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
CSA rating data
Institute (CSA)
Rated voltage (Use group B)
300 V
300 V
AWG 24
Rated current (use group B)
Rated current (use group D)
Wire cross-section, AWG, max.
18 A
10 A
AWG 14
Rated voltage (use group D)
Wire cross-section, AWG, min.
UL 1059 rating data
Rated voltage (use group B)
Rated voltage (use group D)
Wire cross-section, AWG, min.
300 V
300 V
AWG 24
Rated current (use group B)
Rated current (use group D)
Wire cross-section, AWG, max.
15 A
10 A
AWG 14
Classifications
ETIM 3.0
eClass 6.2
EC001284
27-26-11-01
UNSPSC
eClass 7.1
30-21-18-01
27-44-04-01
Notes
Notes
• Rated current related to rated cross-section & min. No. of poles.
• Wire end ferrule without plastic collar to DIN 46228/1
• Wire end ferrule with plastic collar to DIN 46228/4
• The data given under CSA relates to a cUL approval - E60693
• P on drawing = pitch
• Rated data refer only to the component itself. Clearance and creepage distances to other components are to
be designed in accordance with the relevant application standards.
Approvals
Approvals
ROHS
Conform
Downloads
CAD Library (P-CAD Format - ASCII)
LM.zip
CAD Library (P-CAD Format - Standard)
LM.zip
Creation date October 9, 2013 11:13:57 PM CEST
Catalogue status / We reserve the right to make technical changes.
3
Data sheet...
OMNIMATE Signal - series LM
LM 5.08/06/180 3.5SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

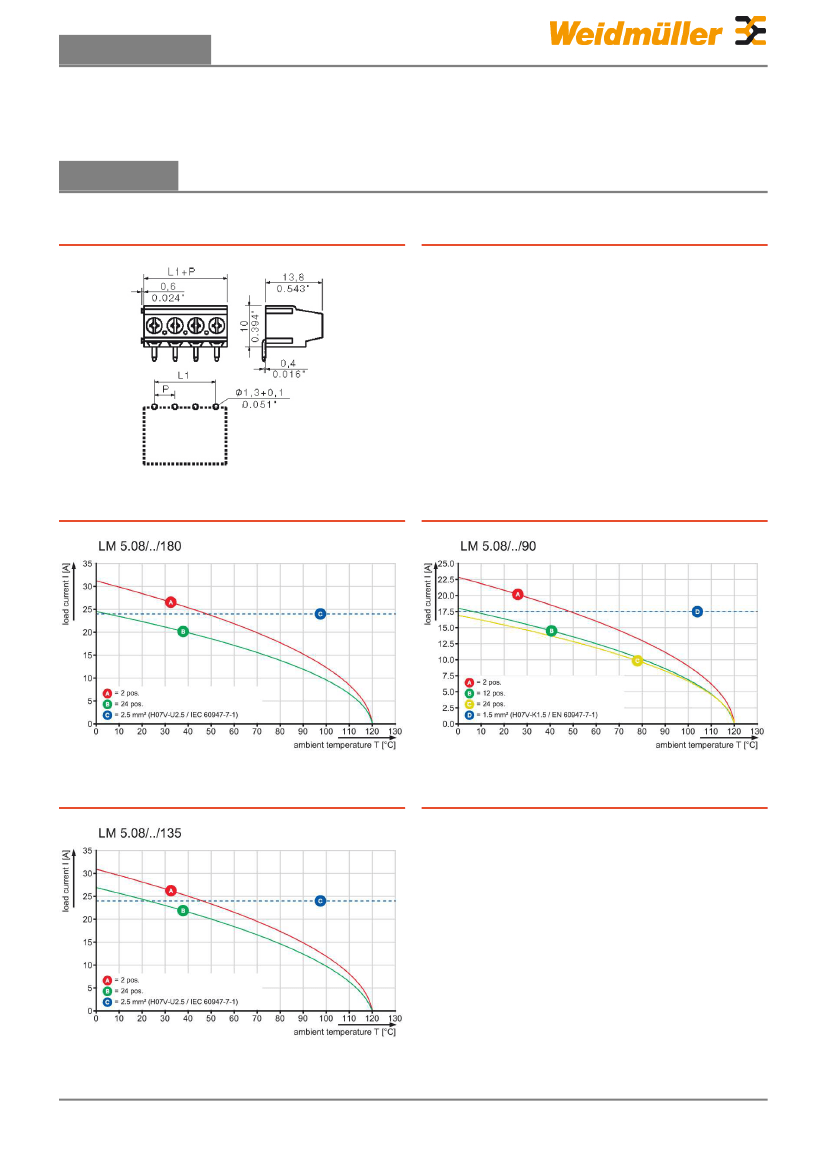

Drawings
Creation date October 9, 2013 11:13:57 PM CEST
Catalogue status / We reserve the right to make technical changes.
