8155550000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 8155550000

8155550000: Descriptioninterface cbl idc male 45mm 64pl; CategoryThe connector; File Size74KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet View All

8155550000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8155550000	-	-	View	Buy Now

8155550000 Overview

interface cbl idc male 45mm 64pl

Preview

Download Datasheet

View All

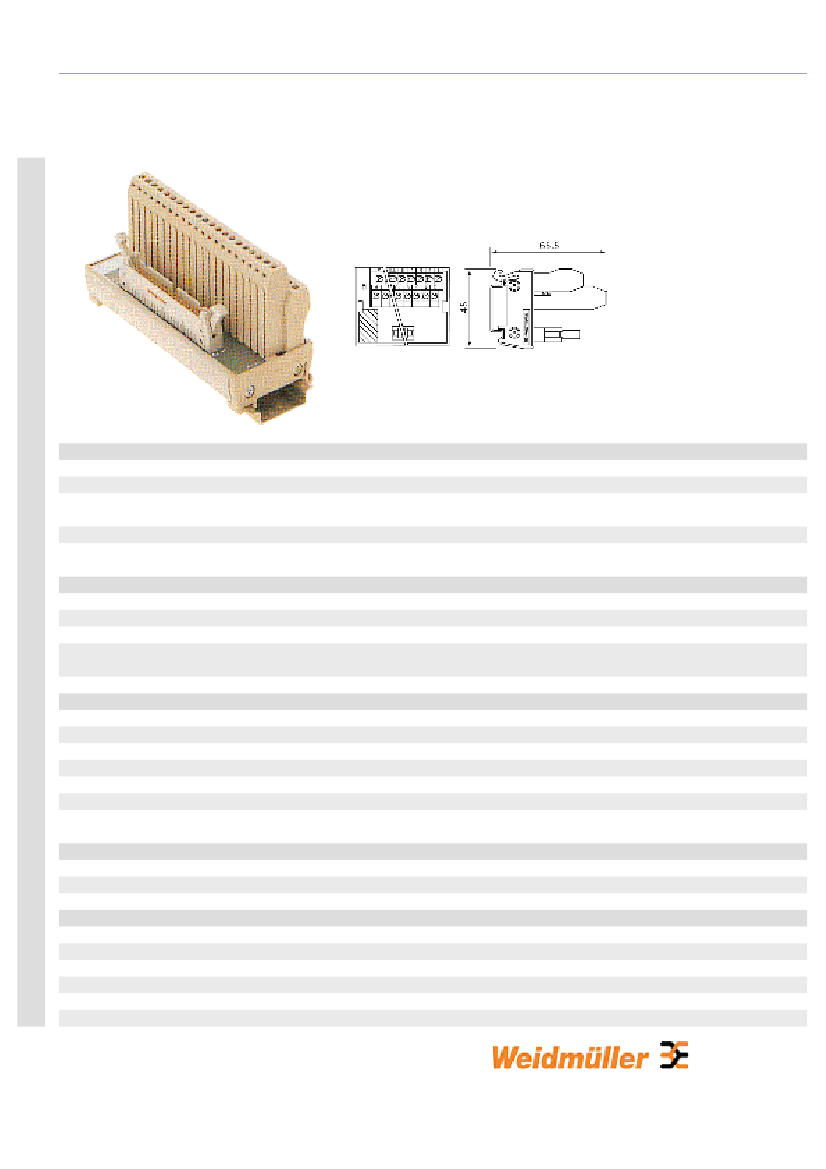

Product catalogue | Functional Electronics | Interface elements | Interface element IEC 603-1 | RSF 45 mm screw

connection / IEC 603-1

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Connection data

Connection on control side

Connection on process side

Contact assembly

Implementation of connection level / plug

connector

Ratings

Ambient temperature (operational)

Number of signals

Rated control voltage

Rated current per connection

Storage temperature

Test torque

Test voltage (~eff)

Insulation coordination (EN 50 178)

Overvoltage category

Pollution severity

Connection cross-section

Flexible, max. (H07V-U)

Flexible, max. AEHK

Flexible, min. (AEHK)

Flexible, min. (H07V-U)

Solid, max. (H07V-U)

Solid, min. (H07V-U)

8155550000

RS F64 LPK 2H/66

Interface unit, Plug-in connector, acc. to IEC

603-1/ DIN 41651, Number of signals: 64

4008190100285

1 pc(s).

Plug-in connector, acc. to IEC 603-1/ DIN 41651

PCB terminal LPK 2 H

64-pole

1:1

0 °C...+55 °C

60 V AC/ 75 V DC

-40 °C...+70 °C

0.4 Nm

1 kV

III

1.5 mm²

0.5 mm²

2.5 mm²

0.5 mm²

-1-
