PF0011/10/63/GY datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> PF0011/10/63/GY

Preview

PF0011/10/63/GY: DescriptionMains Power Connector, 10A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size595KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

PF0011/10/63/GY Overview

Mains Power Connector, 10A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT

PF0011/10/63/GY Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1994340456
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.15
Other features	STANDARD: IEC/EN 60320-1/C14; UL94V-0; CSA; VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

IEC CONNECTORS

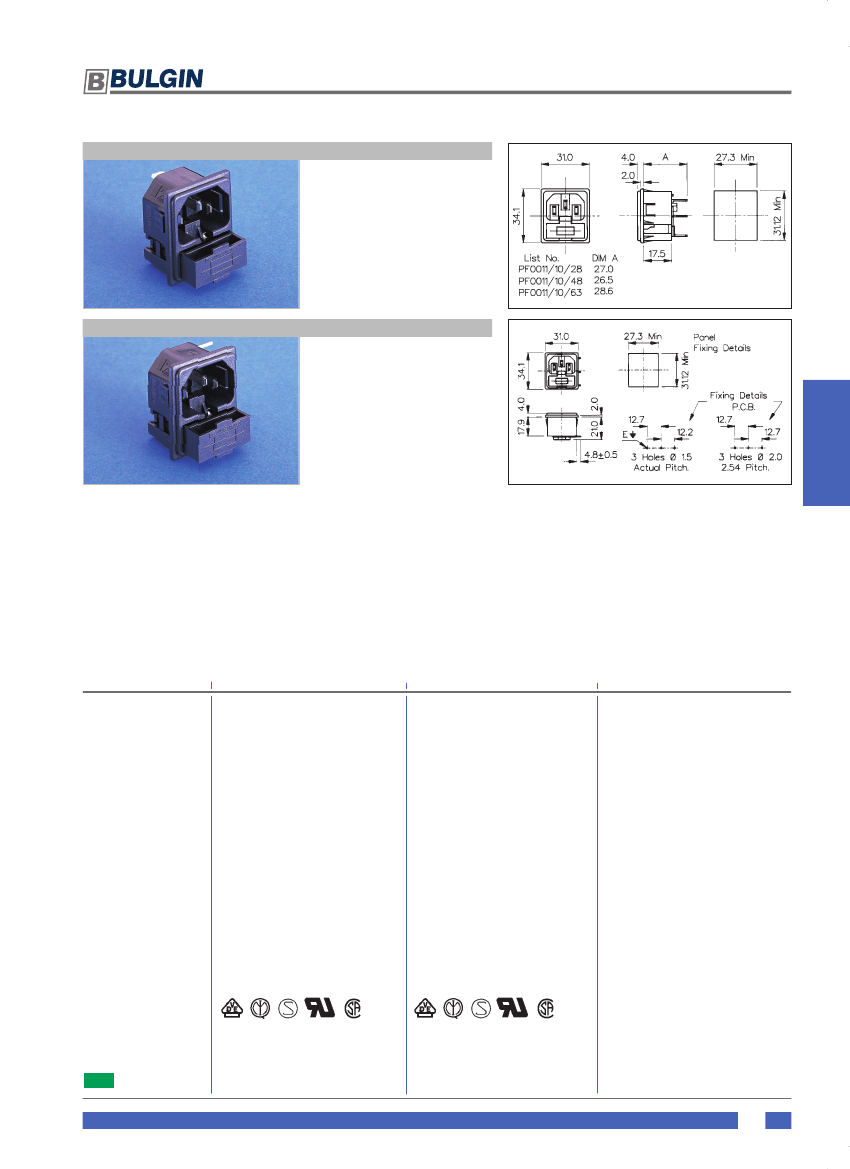

EN60 320-1 Standard Sheet C14 Class I Cold Condition (Fused)

SNAP FIT TO PANEL FUSED INLET

Single Fuse 5 x 20mm

Spare Fuse Facility

Panel Sizes 1, 1.5, 2.0 or

3.0mm

2.8, 4.8 or 6.3mm Tabs

10A, 250V a.c.

PF0011/10/28

PC SNAP FIT TO PANEL FUSED INLET

Single Fuse 5 x 20mm

Spare Fuse Facility

Panel Sizes 1, 1.5, 2.0 or

3.0mm

PC Spills

10A, 250V a.c.

PF0011/10/PC

Specification

Fixing(Panel):

Terminations:

Colours:

Max. Rating:

Max. Fuse Rating:

Contact Resistance:

Insulation Resistance:

A.C. Breakdown:

Operating Temp. Range:

Max. Pin Temp.:

Mouldings:

Contacts:

Approvals:

Accessories / Notes:

Mating Connectors:

PF0011/Panel/Term/Col

Snap fit, /10 (1mm), /15 (1.5mm),

/20 (2mm), /30 (3mm)

/28 (2.8mm solder), /48 (4.8mm tab)

/63 (6.3mm tab)

No suffix (Black), /WH (White), /GY (Grey)

10A, 250V a.c.

2.5W/10A, 250V a.c

<10mΩ (<15mΩ including

Fuseholder)

>10

3

MΩ

Pole-Pole 5.5kV. Poles-Panel 4kV

–40˚C to +70˚C

+70˚C

Nylon, Flammability Rating UL94V-0

Brass: Pins, Nickel Plated. Tabs, Tin

Plated

PF0011/Panel/PC/Col

Snap fit, /10 (1mm), /15 (1.5mm),

/20 (2mm), /30 (3mm)

P Spills

.C.

No suffix (Black), /WH (White), /GY (Grey)

10A, 250V a.c.

2.5W/10A, 250V a.c

<10mΩ (<15mΩ including

Fuseholder)

>10

3

MΩ

Pole-Pole 5.5kV. Poles-Panel 4kV

–40˚C to +70˚C

+70˚C

Nylon, Flammability Rating UL94V-0

Brass: Pins, Nickel Plated. Spills, Tin

Plated

P

.No. 11987 (See Page 83)

PX0587, PX0587/SE, PX0588,

PZ0100, PZ0200

Compliant

PX0587, PX0587/SE, PX0588,

PZ0100, PZ0200

Compliant

RoHS

www.bulgin.co.uk

67

IEC CONNECTORS
