BRS-02-MC-24-A-SG: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size134KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BRS-02-MC-24-A-SG Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

BRS-02-MC-24-A-SG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166985383
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
YTEOL	8.7
Other features	ROHS COMPLIANT
body width	0.165 inch
body length	0.945 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	4 mΩ
Contact style	MACHINE SCREW
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

SPECIFICATIONS

Current Rating:

Voltage Rating:

Contact Material:

Contact Resistance:

Insulator Material:

Insulator Resistance:

Outer Sleeve Plating:

Plating Clip:

Operating Temp:

3 Amps / Contact Max.

100 VRMS / 150 VDC

2 um 80 u” Nickel, gold or Tin

Plating

4mΩ max.

Glass filled thermoplastic

UL94V-0

10000M max. at 500VAC

Brass, machined, Copper Zinc

38PB2

2 um / 80u” Nickel, Gold or Tin

Gold Plated=55ºC to +125ºC

Tin Plated=-40ºC to +105ºC

RoHS compliant

Rev.

Description

Date

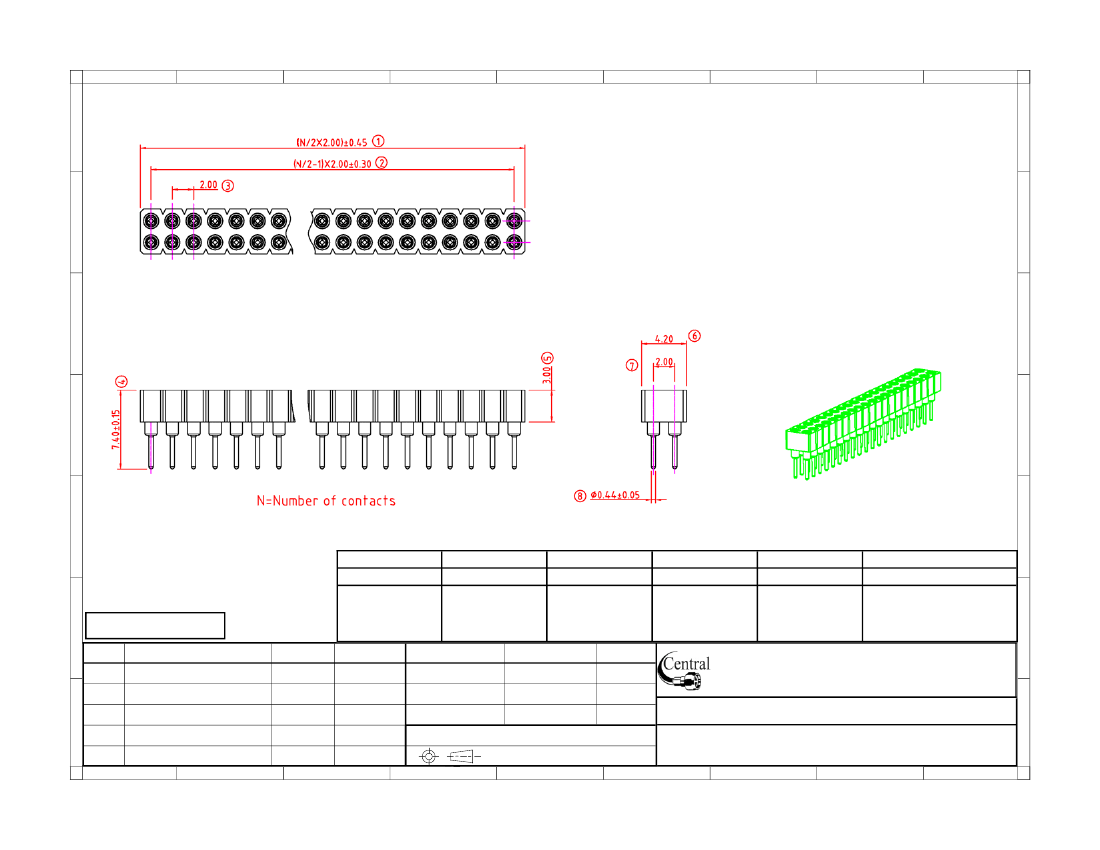

Series

BRS

2mm Receptacle

Strip

Approved

Rows

01=Single

02=Dual

Type

MC=Machine

Contact

Positions

02-80

Pin Length

A=Standard

See Drawing

Plating

SGXX=Selective Gold

GDXX=Gold

XX=Flash if Blank 10, 30 u”

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

02/29/08

02/29/08 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BRS-02-MC-XX-A-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: 2mm Machine Contact Receptacle Strip
