SE1C473M-S515B

Description
Ceramic Capacitor, Ceramic,
CategoryPassive components    capacitor
File Size755KB，4 Pages
ManufacturerHitano Enterprise Corp
Environmental Compliance
Download Datasheet Parametric View All

SE1C473M-S515B Overview

Ceramic Capacitor, Ceramic,

SE1C473M-S515B Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7012059124
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
Number of terminals2
Terminal surfaceNOT SPECIFIED

SE1C473M-S515B Preview

CERAMIC DISC CAPACITORS - (Semi Conductive)
CLASS 3 TYPE S
FEATURES
Ultra large capacitance in small size
Non linear temperature coefficient of capacitance
Part No. Designation
Example
S
(1)
B
(2)
1C
(3)
104
(4)
K
(5)
-
K
(6)
5
(7)
5
(8)
5
(9)
B
(10)
1. Class 3 — Type½S＇
6. Lead Shape. (Ref. Fig. 3.)
Code
K
S
L
A
B
Type
Bulk
Taping
Short Kink
Short Straight
Long Straight
Inside Kink
Straight
2. Temperature Coefficient (Ref. Fig 2)
Code
B
E
Temp. Range
Cap. Change
10%
+22%
-33%
+22%
-56%
+30%
-80%
EIA Code
Y5P
Y5T
Y5U
Y5V
-25
℃
~
+85
℃
7. Lead Spacing. (F)
Code
2
5
6
7
0
K
---
5.00.8
---
---
9.50.8
Dimension (mm)
S
2.50.8
5.00.8
6.30.8
7.50.8
9.50.8
L
2.50.8
5.00.8
6.30.8
7.50.8
9.50.8
F
3. Rated Voltage (D.C.)
Code
1C
1E
1H
1J
Voltage
16V
25V
50V
63V
8. Lead Length. (L)
Code
5
6
0
1
K
5.00.8
6.00.8
10.00.8
---
Dimension (mm)
S
5.00.8
6.00.8
10.00.8
---
L
---
---
---
25min
4. Rated Capacitance
Code
103
223
473
104
224
334
Cap. (PF)
10,000PF
22,000PF
47,000PF
100,000PF
220,000PF
330,000PF
9. Lead Wire. (d)
Code
5
6
Dia (ψmm)
0.50.05
0.60.05
Rated Voltage (D.C.)
16V ~ 63V
16V ~ 63V
5. Tolerance On Rated Capacitance
Code
K
M
Z
Tolerance
10%
20%
+80-20%
Rated T.C.
B (Y5P)
E (Y5T, Y5U)
F (Y5V)
*Taping type lead dia. 0.6mm only.
10. Package
Code
B
A
R
Package
Bulk
Ammo Pack
Tape Reel
Q'ty
1000pcs
2000pcs
2500pcs
6
CERAMIC DISC CAPACITORS - (Semi Conductive)
CLASS 3 TYPE S

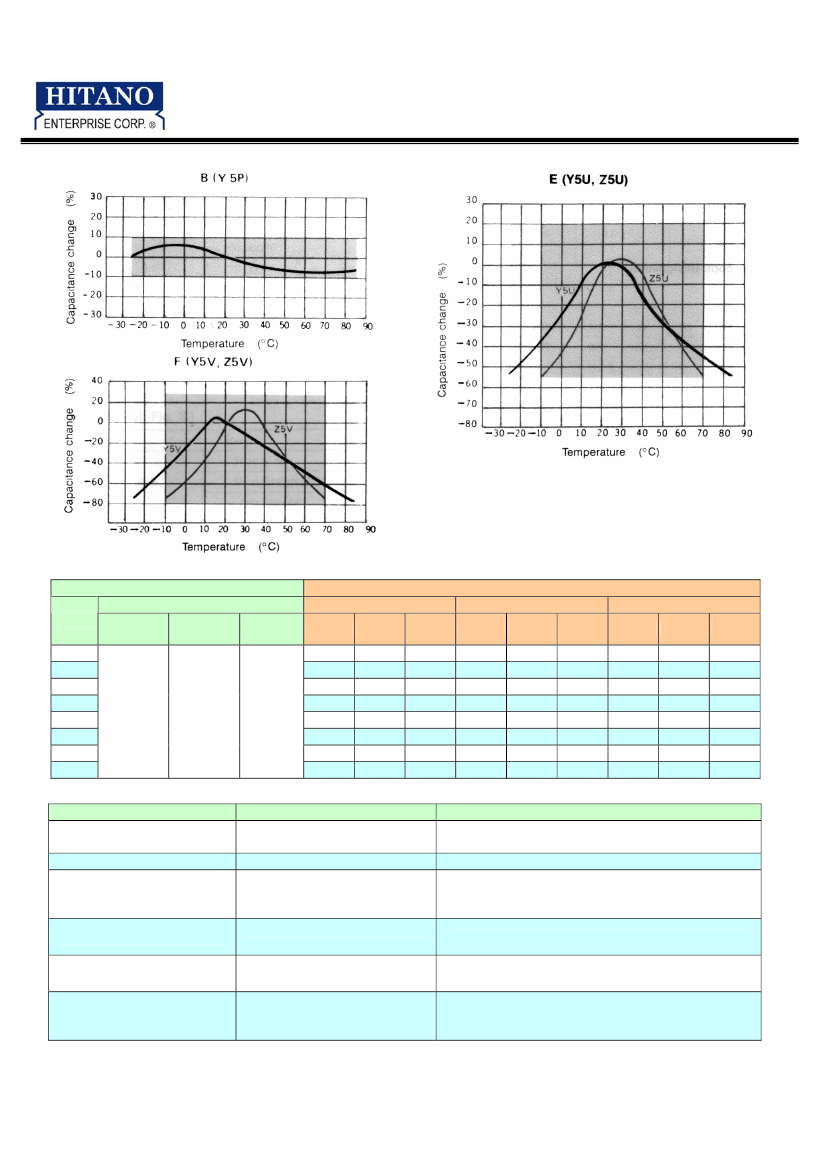

Fig.2 (T.C. %)
Dimension & Capacitance Range
Dia.
(D)
max
4.5
5.5
6.5
7.5
8.5
9.5
10.5
11.5
Dimension(mm)
Lead Spacing (F)
K
S
L
B
---
---
---
---
---
---
104
---
16V
E
---
473
---
104
---
---
224
---
F
---
103-473
104
---
---
---
224
474
Capacitance Range(PF)
25V
B
E
F
B
50 ~ 63V
E
F
5.00.8
to
10.00.8
2.50.8
to
10.00.8
2.50.8
to
10.00.8
472
--- 403-473 332-472 103 103-223
682-123 103-223 ---
103 153-333 333-473
153-223 333-473 104 123-183 403-683 503-104
273-333 104
---
223
823 683-104
393-473 ---
--- 273-333 104
---
503-683 224
224 393-473 ---
224
---
---
334 503-683 224
334
823-104 ---
---
---
---
---
SPECIFICATION & TEST
No. Item
1. Visual & Mechanical
2. Marking
3. Voltage Proof
(Between terminal)
4.
Insulation resistance
Performance
To meet the specification
To be clear and legible
No failure
Test Method
The product shall be inspected for visible evidence of
defect
Marking shall be tested with acetone
Capacitor shall withstand, for not greater than 5 second, a
D.C. test voltage of 2.5times rated voltage. Charging
current shall be 10mA max
5. Capacitance
6. Dissipation Factor
(Tanδ) (%)
12V/16V-100MΩ
Shall be measured 1 minute after with 101V
25V/50V-1000MΩ
To be within the specified Test frequency: 1KHz
100Hz
tolerance
Test voltage shall not exceed 5Vrms at 252℃
Characteristic
B, E : 2.5% max
Same condition as above (Item 5)
F : 5% max
7
CERAMIC DISC CAPACITORS - (Semi Conductive)
CLASS 3 TYPE S

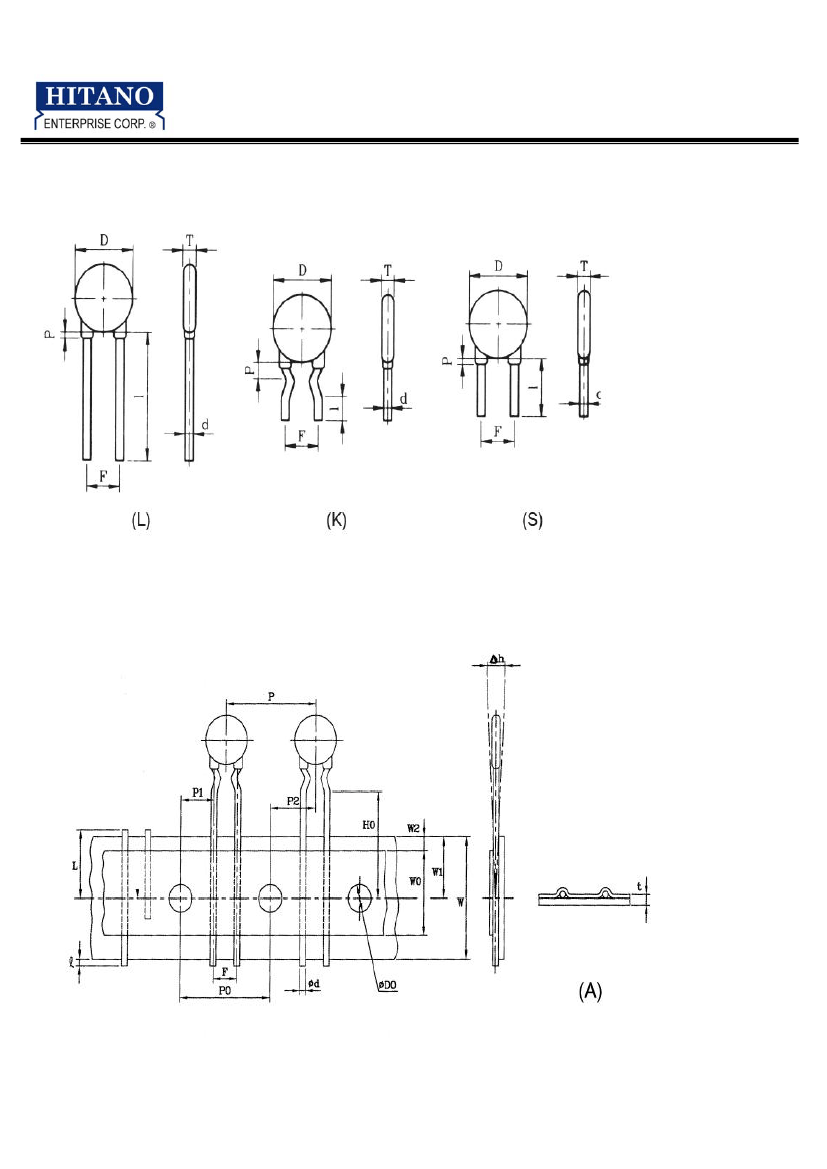

Lead Shape (Fig. 3)

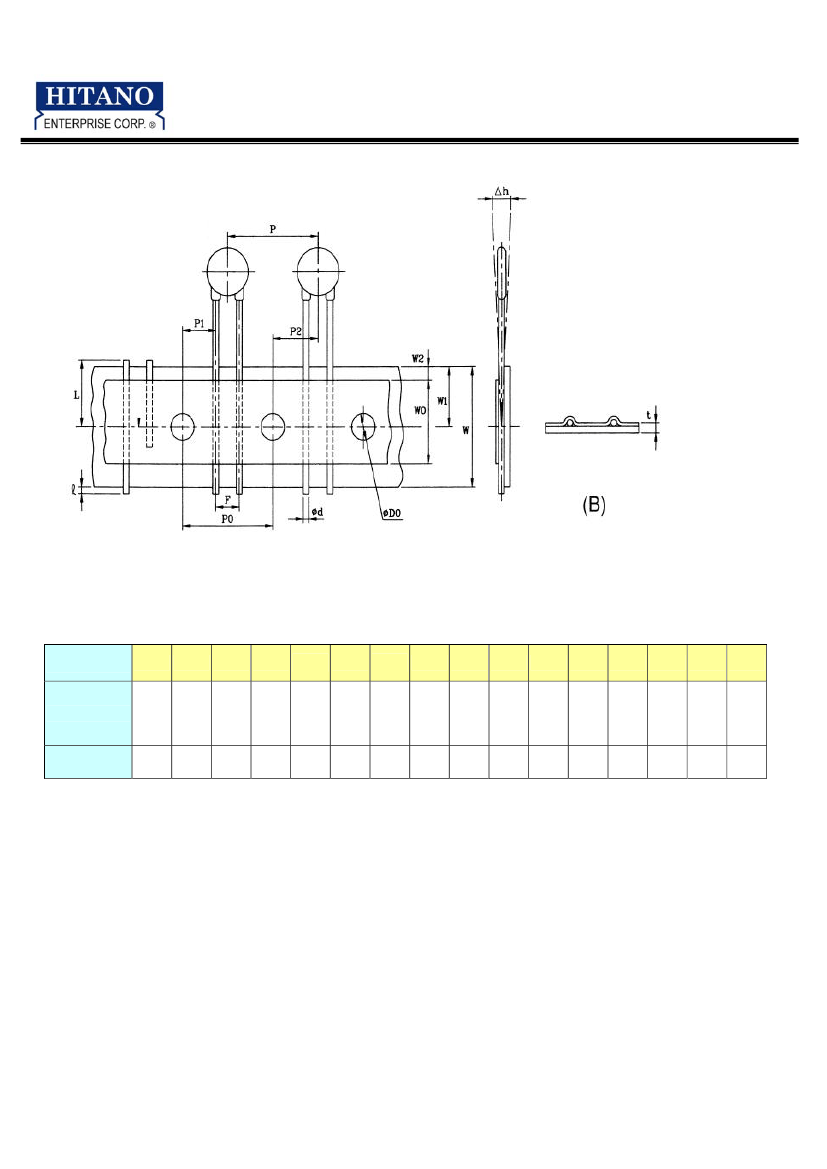

Taping Specification
CERAMIC DISC CAPACITORS - (Semi Conductive)
CLASS 3 TYPE S
Symbol
Dimension
P
P
0
P
1
P
2
ψd
F
△h
W
W
0
W
1
W
2
D
0
t
L
H
20.0
23.0
+1.5
-1.0
H
0
16.0
18.0
±0.5
12.7
1.0
12.7
3.85
Tolerance
±0.3
±0.7
2.54
5.08
6.35 0.6
6.35
7.62
+0.8
±1.0 ±0.05
-0.2
0
18
12.5
9
3
4
0.7
11
±2
±0.5
Min
+0.75
Max
-0.5
±0.3
±0.2
Max
