FGF06FT-2740 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> FGF06FT-2740

FGF06FT-2740: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.25W, 274ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206,; CategoryPassive components The resistor; File Size450KB，6 Pages; ManufacturerProsperity Dielectrics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

FGF06FT-2740 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 274ohm, 200V, 1% +/-Tol, -100,100ppm/Cel, 1206,

FGF06FT-2740 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	947109650
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	3.1 mm
Package form	SMT
Package width	1.6 mm
method of packing	TR, Paper, 7 Inch
Rated power dissipation(P)	0.25 W
resistance	274 Ω
Resistor type	FIXED RESISTOR
series	FGF
size code	1206
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Tolerance	1%
Operating Voltage	200 V

Preview

Download Datasheet

View All

NON-MAGNETIC

LEAD FREE CHIP RESISTORS

■

Features

‧Non-Magnetic

chip resistors by copper plating on middle termination

‧Non-Magnetic

chip resistors pass 3000 gauss magnetic detection

‧Compatible

with flow and reflow soldering

‧Suitable

for lead free soldering.

‧Meet

RoHS compliant

‧RoHS

compliant & Halogen Free

■

Applications

‧medical equipment

‧Automotive industry

‧ MRI industry

‧Measurement instrument

■

Configuration

(Sn)

Middle Termination

Layer:Copper

■

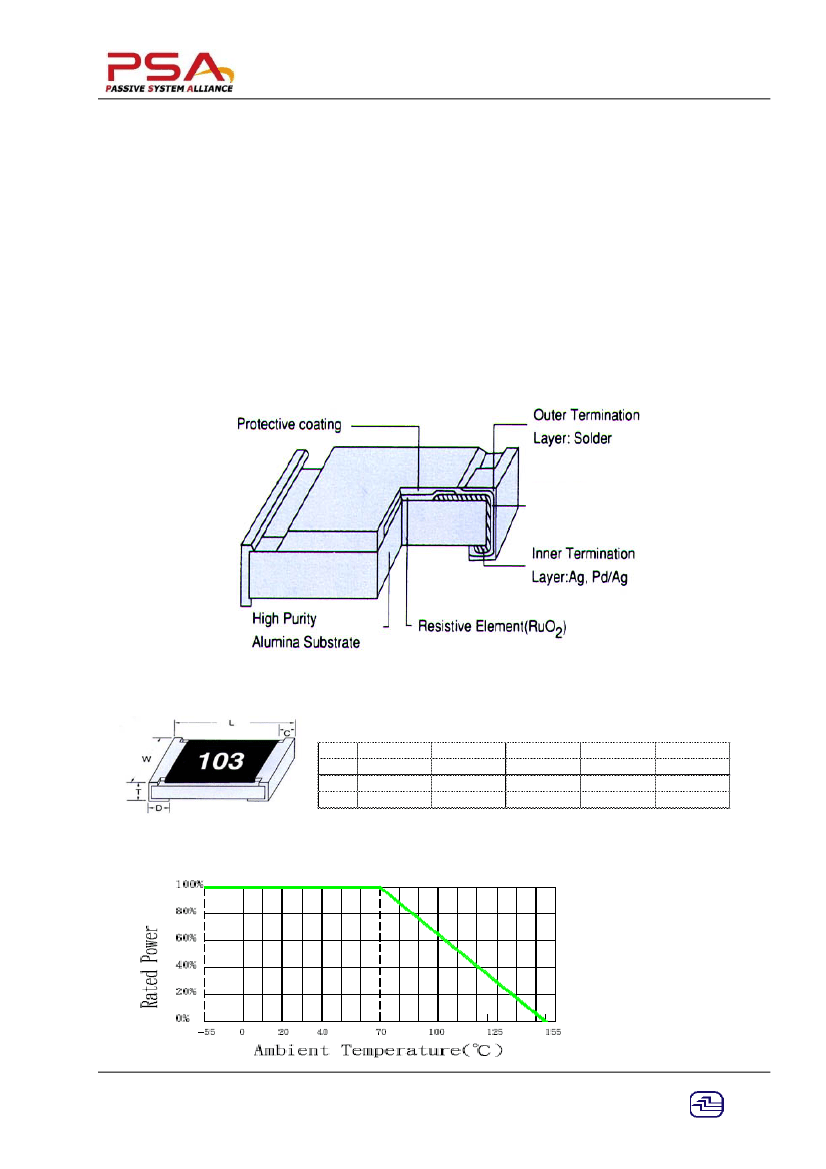

Dimensions

(unit: mm)

Size

0603

0805

1206

1.60±0.10

2.00±0.10

3.10±0.10

0.80±0.10

1.25±0.10

1.60±0.10

0.30±0.20

0.40±0.20

0.50±0.20

0.30±0.20

0.40±0.20

0.50±0.20

0.45±0.15

0.50±0.15

0.55±0.15

■

Power Derating Curve

Prosperity Dielectrics Co.,Ltd.

1/6

FGF-Rev.8.3

PDC
