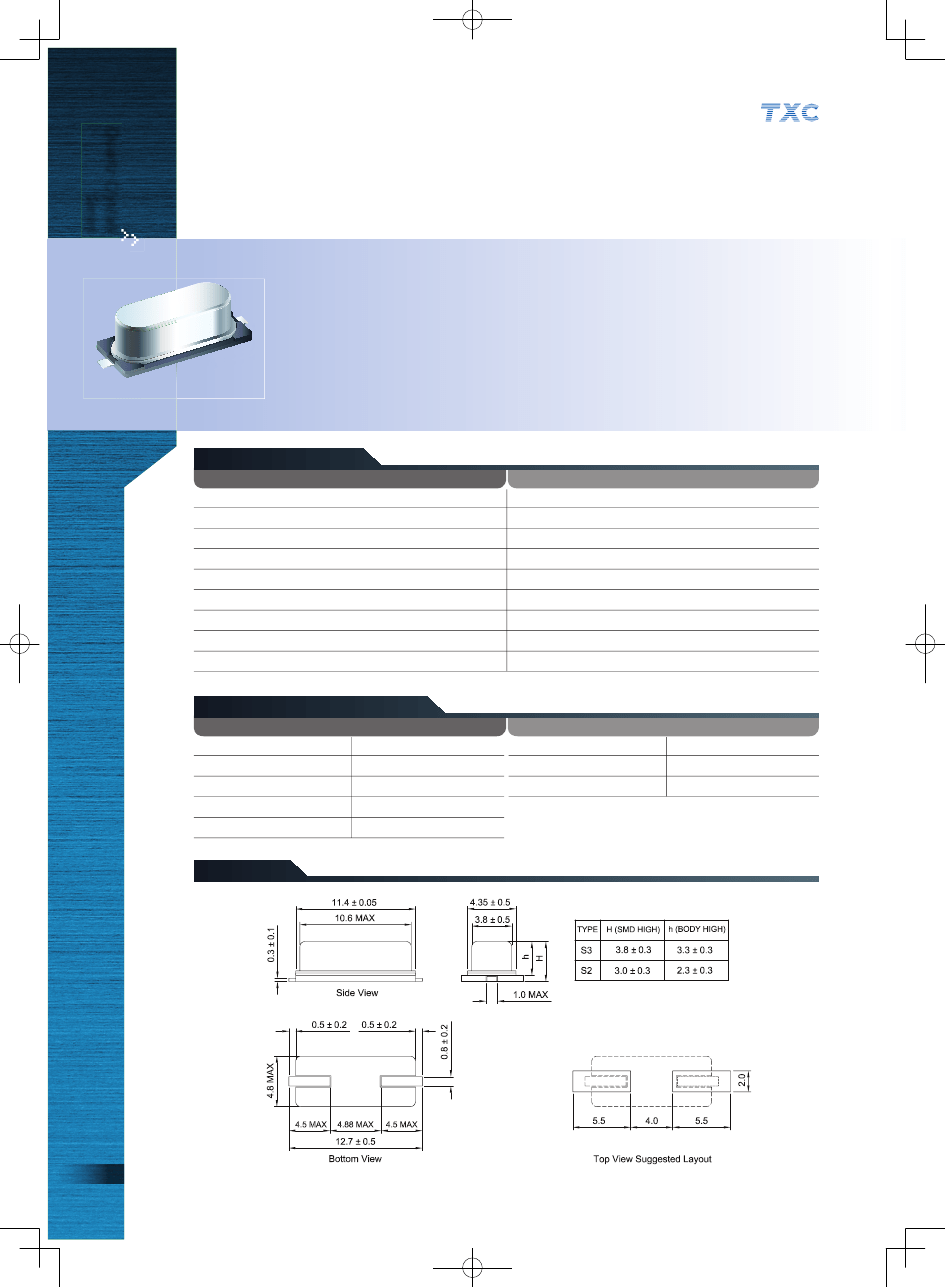

Metal Can Type
Crystals
HC-49S SMD 9C Series
Features
C
TX
. 3 F y 0 1
14
G
Think of Frequency Think of
come visit our site http://www.txccorp.com
Quartz Crystals
Series
Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
．
Surface mount type crystal units.
．
A great number of standard frequencies.
．
High frequency pullability and low equivalent series resistance.
．
Highly mass production capability.
．
The best choice of PC, STB, LCDM, and Cable Modem.
．
RoHS Compliant / Pb Free.
Electrical Specifications
Item / Type
Frequency Range
Frequency Tolerance (at 25
℃
)
Frequency Stability Over Operating Temperature Range
Operating Temperature Range
Shunt Capacitance (C0)
Drive Level
Load Capacitance
Aging (at 25
℃
)
Storage Temperature Range
9C
3.2 ~ 90 MHz
±
30 ppm, or specify
±
30 ppm, or specify
- 20 ~ + 70
℃
, or specify
7 pF Max.
1 ~ 500
μ
W (100
μ
W typical)
Series, 16 pF, 20 pF, 30 pF, 32 pF, or specify
±
5 ppm / year Max.
- 40 ~ + 85
℃
Equivalent Series Resistance(ESR)
Fundamental
3.2 ~ 3.686 MHz
5 ~ 10 MHz
10 ~ 14 MHz
14 ~ 30 MHz
200
Ω
Max.
80
Ω
Max
40
Ω
Max.
30
Ω
Max.
3.686 ~ 5 MHz 150
Ω
Max.
3rd Overtone
27 ~ 30 MHz 100
Ω
Max.
30 ~ 50 MHz
50 ~ 90 MHz
80
Ω
Max.
60
Ω
Max.
Dimensions
Units: mm
