8810-052-170L datasheet, PDF - EEWORLD Datasheet

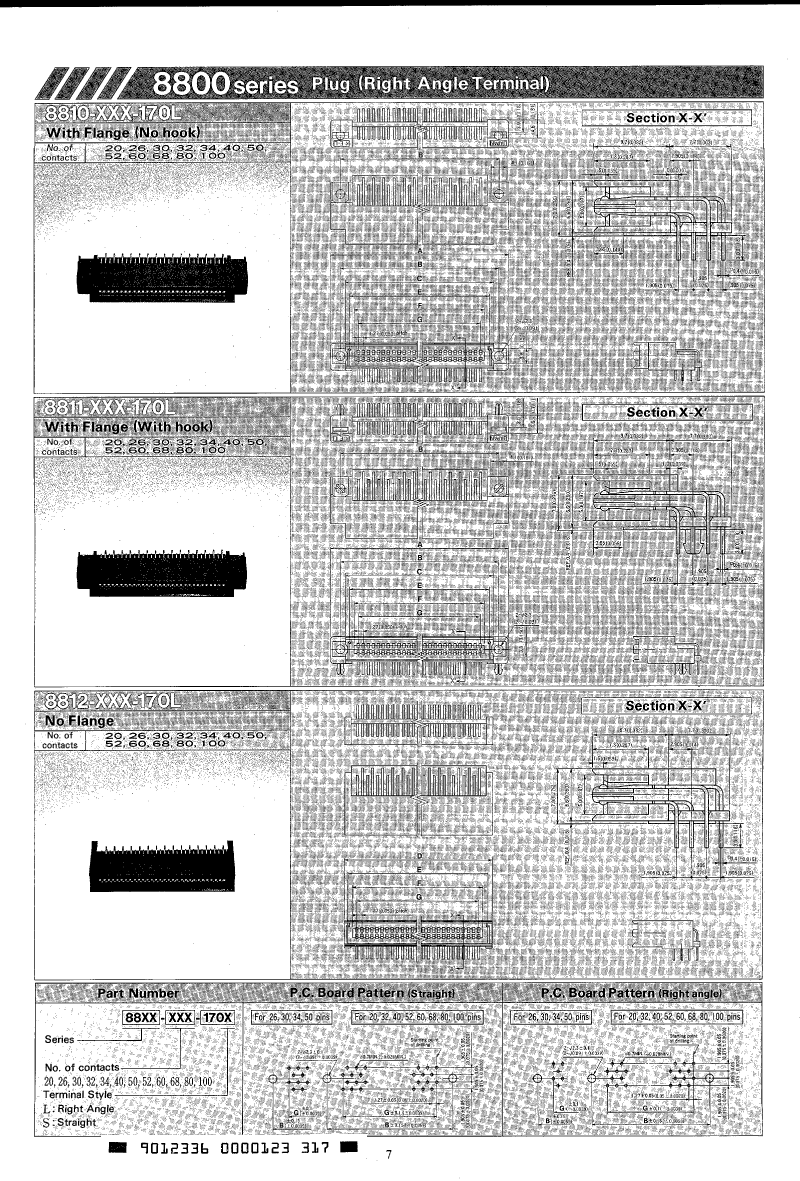

8810-052-170L: DescriptionBoard Connector, 52 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Hole .087-.098, Receptacle; CategoryThe connector The connector; File Size526KB，2 Pages; ManufacturerKEL Corporation

Download Datasheet Parametric View All

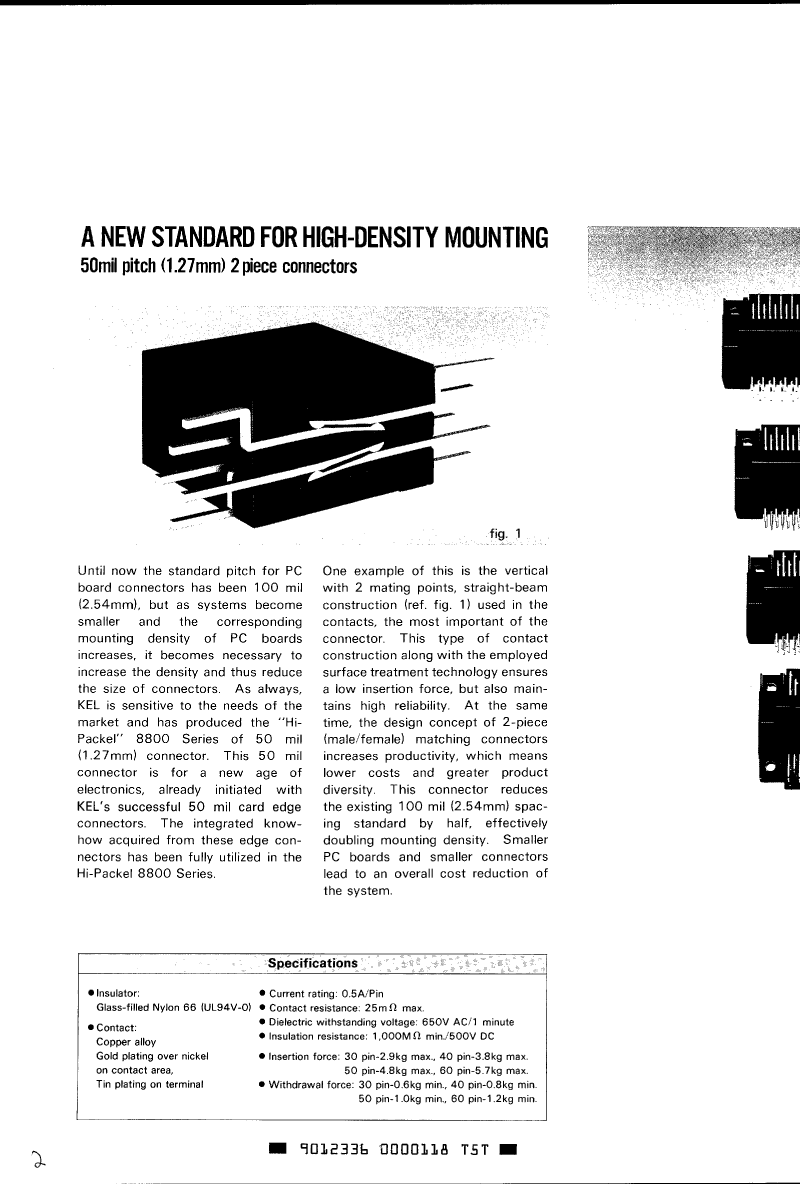

8810-052-170L Overview

Board Connector, 52 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Hole .087-.098, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	300460933
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FLANGE WITHOUT HOOKS
body width	0.276 inch
subject depth	0.685 inch
body length	1.801 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	650VAC V
maximum insertion force	LIF N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYAMIDE
Plug contact pitch	0.05 inch
Installation option 1	HOLE .087-.098
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	52
