EURO
QUARTZ
High Precision Crystal Oscillator
FEATURES
CMOS/TTL Compatible
High shock resistance
Optional Enable/Disable with Tri-State
Low EMI emission
Full military testing available
Hermetically sealed package
CXOMK OSCILLATOR
200kHz to 220MHz
Page 1 of 2

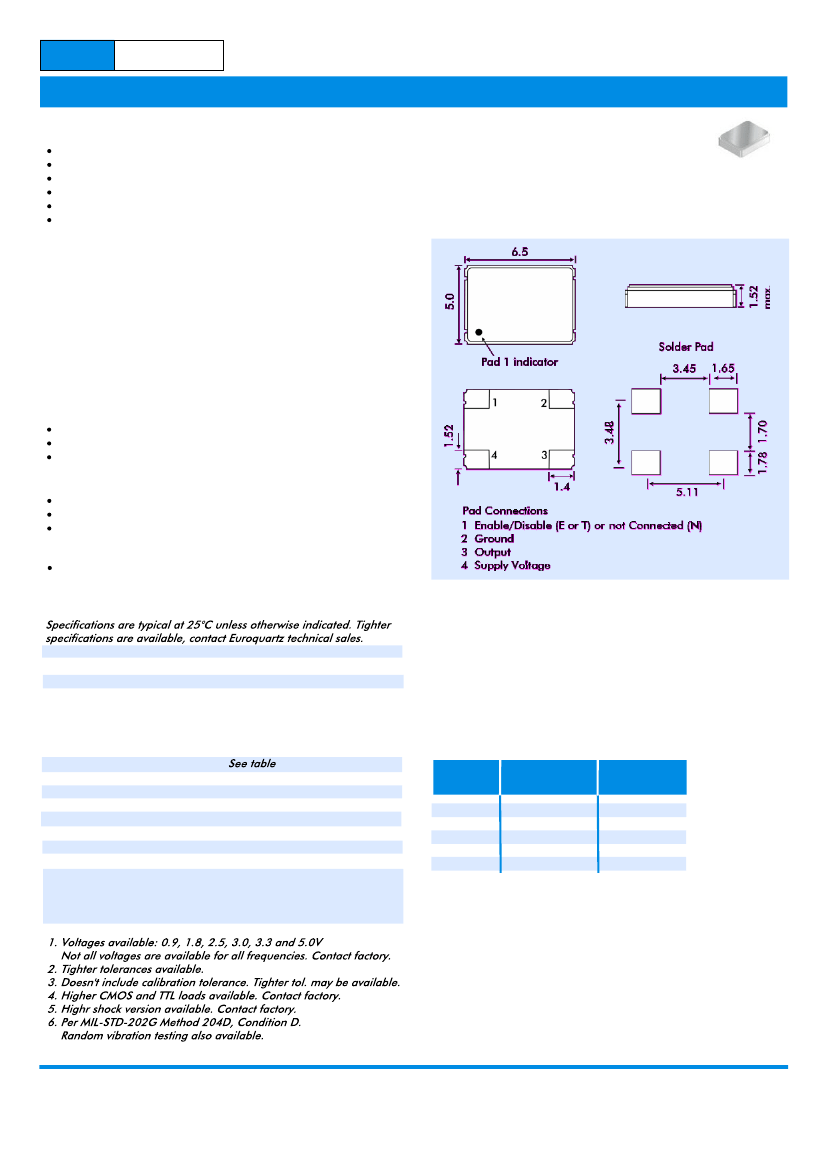

OUTLINE & DIMENSIONS
DESCRIPTION
CXOMK oscillators are miniature, surface mount units packaged in a
6.5 x 5.0 x 1.5mm package. Ultilizing the latest advancements in
production technology, the CXOMK oscillator is capable of achieving
close tolerance frequency calibration and high stability over a wide
temperature range. High shock resistance. The part is available with
full 'MIL' testing if required.
APPLICATIONS
Military & Aerospace
Smart munitions
Cockpit systems
Navigation
Industrial, Computer & Communications
Industrial controls
Instrumentation
Microprocessor clocks
Medical
Infusion pumps
SPECIFICATION
PACKAGING OPTIONS
Frequency Range:
200.0kHz to 220.0MHz
Supply Voltage
1
:
+0.9 to 5.0Volts ±10%
2
:
Calibration Tolerance
±30ppm
Frequency Stability
over Operating Temperature Range
3
Commercial (0° ~ +70°C): ±15 to ±50ppm
Industrial(-40° ~ +85°C):
±30 to ±100ppm
Military (-55° ~ +125°C):
±40 to ±100ppm
Supply Current:
Output Load (CMOS)
4
:
15pF
Start-up Time:
5ms maximum
Rise/Fall Time:
6ns maximum
Duty Cycle:
40% min., 60% max.
Ageing First Year:
±10ppm
Shock, Survival
5
:
5000g, 0.3ms, ½ sine
Vibration Survival
6
:
20g, 10~2000Hz swept sine
Operating Temperature Ranges
Commercial:
-10° to +60°C
Industrial:
-40° to +85°C
Military:
-55° to +125°C
CXOMK oscillators are available either tray packed (<250pcs) or tape
and reel (>250 pieces).
16mm tape, 178mm or 330mm reels (EIA 418).
SUPPLY CURRENT
Frequency
10MHz
24MHz
30MHz
40MHz
50MHz
Supply Current Supply Current
Vdd = 5.0V
Vdd = 3.3V
2mA
4mA
6mA
8mA
10mA
4mA
8mA
10mA
12mA
14mA
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
EURO
QUARTZ
High Precision Crystal Oscillator
CXOMK OSCILLATOR
200kHz to 220MHz
Page 2 of 2
ABSOLUTE MAXIMUM RATINGS
Supply Voltage:
Maximum Process Temperature:
Storage Temperature:
*
-0.5V to +7.0V*
260°C for 20 seconds
-55° to +125°C
COMPARISON OF ENABLE/DISABLE OPTIONS
There are three Enable/Disable options available, E, T and N. Both
the E and T versions have Tri-state outputs. In the E version the
oscillator stops, in the T version the oscillator continues to run. The N
version (no tristate function) does not have pin 1 connected internally.
E
Enable (Pin 1 High)
T
Output:
Frequency Output
Oscillator:
Oscillates
Current:
Normal
Output:
Oscillator:
Current:
High Z state
Stops
Very low
Frequency Output
Oscillates
Normal
High Z state
Oscillates
Lower than normal
Disable (Pin 1 Low)
HOW TO ORDER CXOMK SMD CRYSTAL OSCILLATORS
CXOMK
4
Supply Voltage
1 = 1.8V
2 = 2.5V
3 = 3.0V
4 = 3.3V
5 = 5.0V
S
T*
Enable/Disable
option, E, T or N
-
SM3 -
32.0M / 100
Frequency
M = MHz
k = kHz
Calibration
Tolerance
at 25°C
(in ±ppm)
/ 100
Frequency
Stability over
Temp. Range
(in ±ppm)
/
–
I
Blank = standard
S = special or
custom
Terminations
Blank = SM1=Gold plated
SM3 = Solder dipped
SM5 = Solder dipped
(SM1 and SM5 are pB free)
Temp. Range
C = -10° ~ +70°C
I = -40° ~ +85°C
M = -55° ~ +125°C
S = Customer specified
OR
/ –
/
–
/ 200
Total
Frequency
Tolerance
(in ±ppm)
/
I
* The T version is not available in all
frequencies. Contact factory.
Temp. Range
C = -10° ~ +70°C
I = -40° ~ +85°C
M = -55° ~ +125°C
S = Customer specified
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
