HTV54634.3680MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> HTV54634.3680MHZ

HTV54634.3680MHZ: DescriptionHCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size36KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

HTV54634.3680MHZ Overview

HCMOS Output Clock Oscillator

HTV54634.3680MHZ Parametric

Parameter Name	Attribute value
Objectid	1253359101
Reach Compliance Code	unknown
YTEOL	0
Ageing	4.6 PPM/10 YEAR
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	10 ppm
frequency stability	4.6%
Installation features	THROUGH HOLE MOUNT
Number of terminals	14
Nominal operating frequency	34.368 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
Encapsulate equivalent code	DIP4/14,.3
physical size	20.8mm x 13.2mm x 9.2mm
longest rise time	6 ns
Maximum slew rate	35 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

OBSOLETE - DO NOT USE

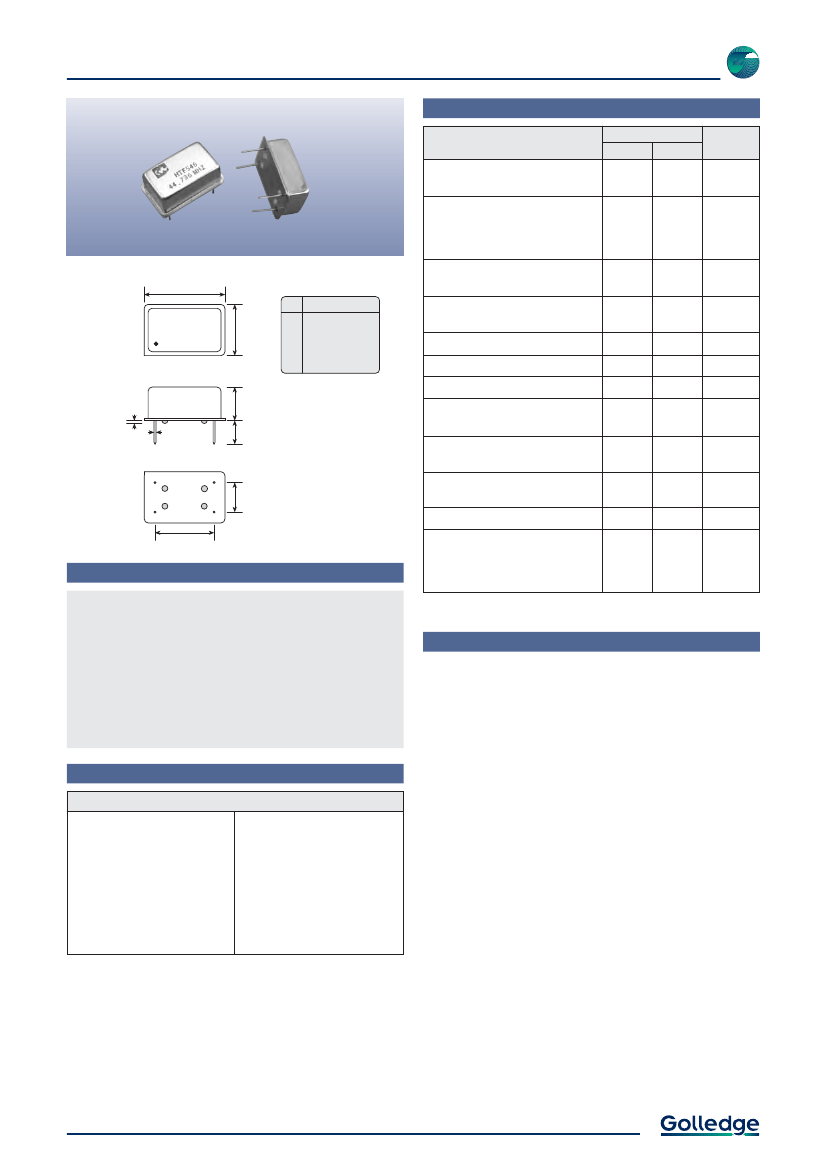

5V HCMOS TCXO Stratum 3

HTF546 & HTV546

Specifications

Product

HTF546

HTV546

Option

Codes

Parameters

Frequency range:

110kHz ~ 52.0MHz

Frequency stability:

±4.6ppm

(inclusive of calibration tolerance

temperature, voltage, load, 10years

ageing, shock & vibration)

20.80

(max)

13.20

(max)

CONNECTION

Not connected or

Freq adjustment

Temperature range:

0 to +70 C

Other

specify

Storage temperature range:

-40 to +85 C

Supply voltage (V

+5.0V (±5%)

Supply current:

Driving ability:

35mA max

15pF HCMOS

Ground

Output

Supply

0.80

0.46Ø

8.40

(max)

6.00

(min)

Logic levels:

ë0í level = 0.4V max

ë1í level = 90%V

min

ë0í level = 4.0mA

ë1í level = -4.0mA

Output current:

7.62

Waveform symmetry:

40:60 max at 2.5V

Rise / fall time:

Scale 1:1

6ns max

15.24

Features

Frequency adjustment:

None

±10ppm min, +2.5 ±2V

10k input impedance

±15% linearity

Standard.

Optional - Please specify required code(s) when ordering

Stratum 3 compliant

HCMOS output

Excellent frequency stability

Wide temperature range

Low cost for volume production

Ordering Information

Product name + frequency

eg:

HTF546 19.440MHz

HTV546 44.7360MHz

Option code X (eg HTV546/X) denotes a custom specification.

Standard Frequencies

Frequencies in MHz

1.5440

2.0480

6.1440

6.1760

6.4000

8.1920

12.2880

13.0000

14.3360

15.3600

16.3840

Other frequencies available. Please consult our sales office.

19.4400

20.4800

29.4912

32.7680

34.3680

38.8800

44.2360

44.7360

49.1520

51.8400

Tel:

+44 1460 256 100

11 Mar 2009

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
