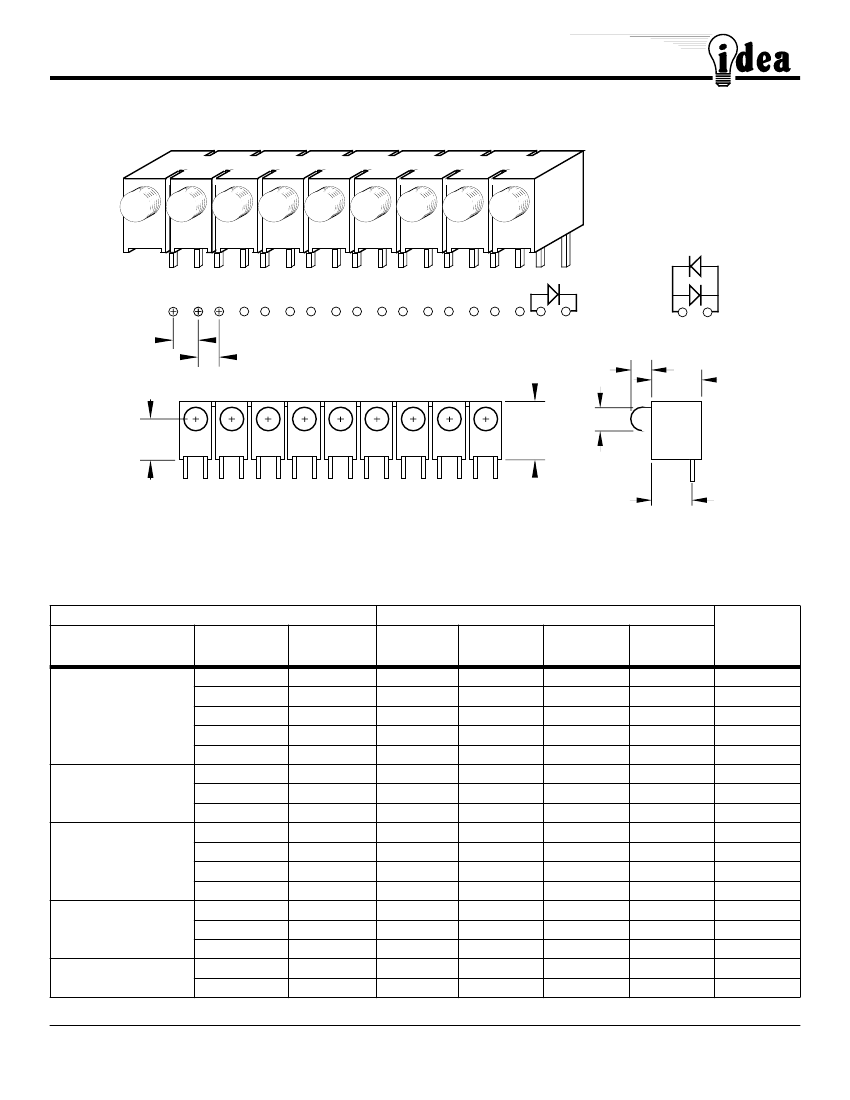

T-1, (3-mm) Round, PCB Mount
Right Angle Array, J61XB Series
The J61XB is a T-1 size right-angle indicator array and can be CMOS driven to save components. The LEDs are located on 4.57
mm(0.18") centers. The J61XB can be supplied with the desired lamps preassembled from 1 to 9 sections long. (J611B thru J619B)
This series provides easier handling in multiple lamp applications, and can be supplied with any combination of colors. This series can
also be supplied with pinout reversed from that shown by adding “-RL” to the order code of the part number.
1
2
3
...
...
...
...
...
X
Red or
yellow
Anode
Green
Anode
+ –
(typ for single color)
(typ for bi-color)
LED 1
2.54(0.10)
typ
2.03(0.08)
typ
2.5±.5
6.35
5.08
7.4
IDEA IDEA IDEA IDEA IDEA IDEA IDEA IDEA IDEA
3 typ
5.08
ref
Specify part desired as follows:
J61XB/Order Code LED1 + Order Code LED 2 + ... + Order Code LED X
For example:
“J618B/4H+4G” designates an assembly with 4 red LEDs followed by 4 green LEDs.
“J618B/(4H+4G)-RL” designates the same assembly with all pins reversed.
ORDER CODE AND INFORMATION (ALL RATINGS AT 25°C AMBIENT)
LED Lamp
Epoxy & Type
Color
Order Code
Peak
λ
(nm)
639
575
591
Typical Characteristics
Vf
(V)
@If=20mA
1.8
1.7
1.85
Iv
(mcd)
@If=10mA
4.0
2.5
4.0
2
Θ
1/2
(Deg)
50
60
45
Recom.
Op. If
(mA)
Red
TInted Diffused
Green
Yellow
I
G
Y
2 - 10
2 - 10
2 - 10
* Specifications subject to change without notice. Dimensions are in mm±0.25 unless stated otherwise.
