62GB-56T20-16P3B(416)

Description
MIL Series Connector
CategoryThe connector    The connector
File Size98KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

62GB-56T20-16P3B(416) Overview

MIL Series Connector

62GB-56T20-16P3B(416) Parametric

Parameter NameAttribute value
Objectid7056813866
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeMIL SERIES CONNECTOR
Plugs

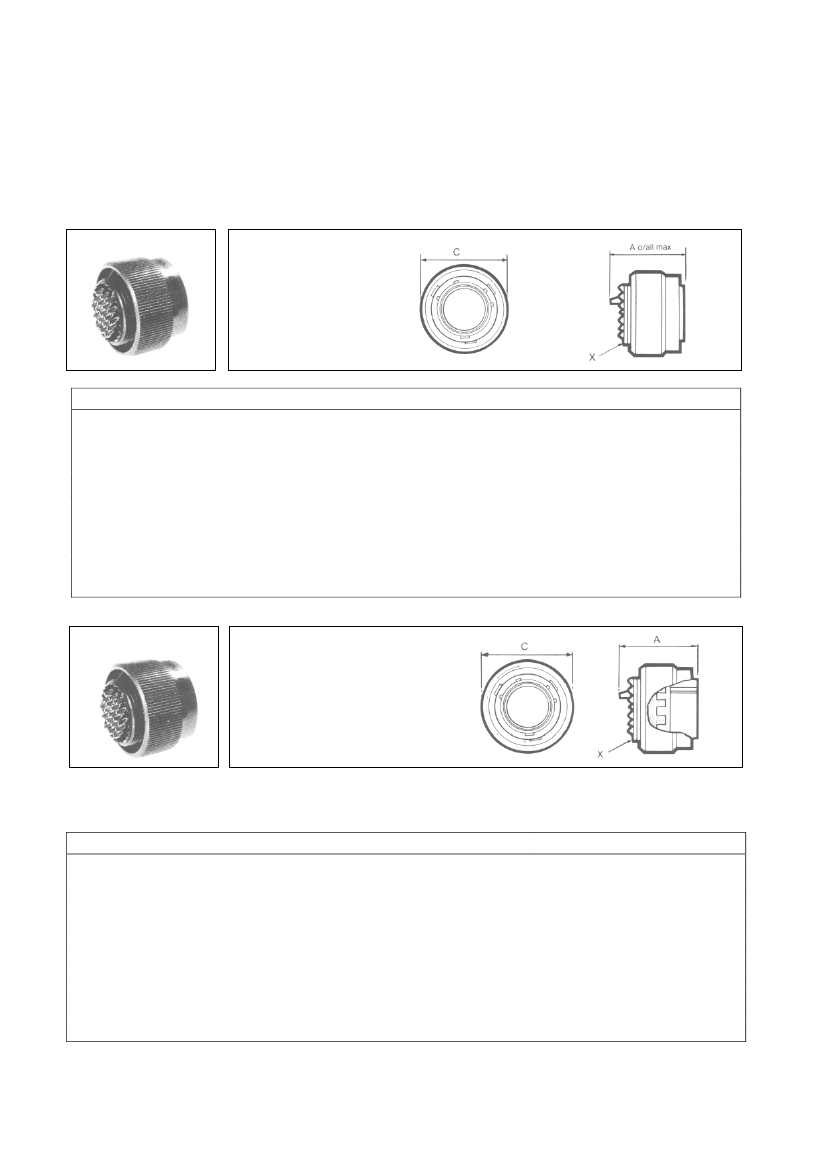

56T
62GB-56T
Basic plug with threaded shell to accept
standard cable accessories
Shell
Size
08
10
12
14
16
18
20
22
24
A
Max
0.976
24.79
0.976
24.79
0.976
24.79
0.976
24.79
0.976
24.79
0.976
24.79
&976
24.79
0.976
24.79
0.976
24.79
C
max
0.750
19.05
0.859
21.82
1.031
26.19
1.156
29.36
1.281
32.54
1.391
35.33
1.531
38.89
1.656
42.06
1.777
45.14
X
Thread
7/16 - 28 UNEF
9/16 - 24 NEF
11/16 -24NEF
13/16 - 20 UNEF
15/16 - 20 UNEF
1.1 /16 - 18 NEF
1.3/16 - 18 NEF
1.5/16 - 18 NEF
1.7/16 - 18 NEF
56TG
62GB-56TG
Basic plug with threaded shell to accept
standard cable accessories. Has shell
grounding spring fingers
Shell
Size
08
10
12
14
16
18
20
22
24
A
max
0.976
24.79
0.976
24.79
0.976
24,79
0.976
24.79
0.976
24.79
0.976
24.79
0.976
24.79
0.976
24.79
0.976
24.79
C
max
0.750
19.05
0.859
21.82
1.031
26.19
1.156
29.36
1.281
32.54
1.391
35.33
1.531
38.89
1.656
42.06
1.777
45.14
X
Thread
7/16 - 28 UNEF
9/16 - 24 NEF
11/16 – 24 NEF
13/16 – 20 UNEF
15/16 - 20 UNEF
1.1 /16 - 18 NEF
1.3/16 - 18 NEF
1.5/16 - 18 NEF
11/16 - 18 NEF
