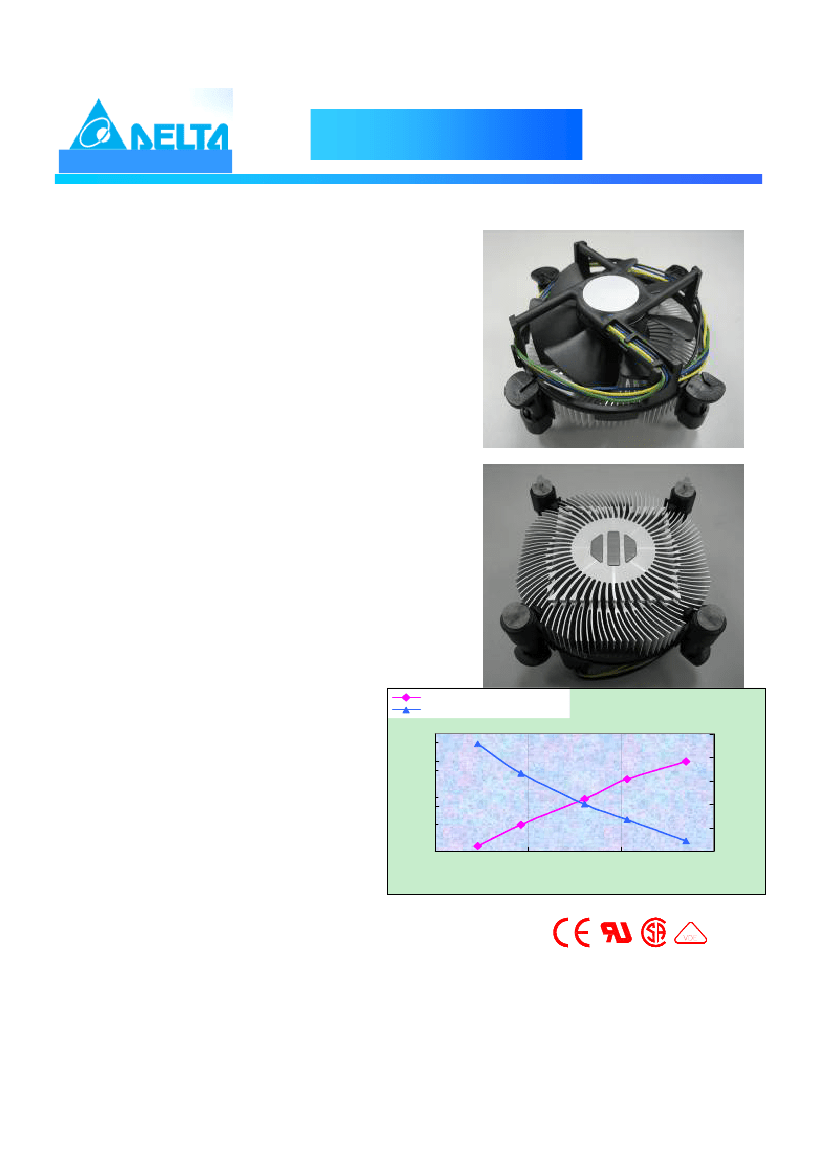

FHS-A9025S16
DELTA ELECTRONICS, INC.
Application:
Picture:
Intel LGA775 Wolfdale / Yorkfield (45nm) CPU
E8000/E7000/E6000/E5000/Q9000S/Q8000S
sequence
Thermal & Mechanical Spec.:
Thermal performance for 65W CPU
HSK Assembly Weight: 205 g (ref.)
Clipping Force: 20 Kgf (ref.)
Component Specification:
1. Heat Sink
Type: Extruded HSK
Material: Aluminum A6063 or Equivalent.
Dimension: 90*90*19.05 mm
2. Thermal interface material
Material: Dow Corning TC-1996 or Equivalent.
3. Fan
(90x90x25 mm with Thermistor & PWM Control)
Rated Voltage: 12 V
Noise
Life Time:
THERMAL RESISTANCE
Superflo bearing 50000 hrs
Connector:
35
a. Lead wire: UL 1430 AWG#26
30
pin 1: black wire--------(-)
pin 2: yellow wire----------(+)
25
pin 3: green wire---------(F00)
1800
2300
2800
Speed
(rpm)
pin 4: blue wire------------(PWM)
b. Housing: Molex 47054-1000 or equivalent
c. Terminal: Molex 2759T 08-50-0113 or equivalent
θ
c
a (℃/W)
0.42
0.40
0.38
0.36
0.34
0.32
3300
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice
DELTA ELECTRONICS, INC.
252, Shang Ying Road, Kuei San
TAOYUAN SHIEN 333,
TAIWAN,R.O.C.
TEL: 886-3-3591968 EXT 2073
FAX: 886-3-3591991
DELTA PRODUCTS CORPORATION
4405 CUSHING PARKWAY
FREMONT, CA 94538, U.S.A.
TEL: 1-510-668-5100
FAX: 1-510-668-0680
DELTA ELECTRONICS(JAPAN), INC.
DELTA SHIBADAIMON BLDG.
2-1-14 SHIBADAIMON, MINATO-KU,
TOKYO, 105-0012, JAPAN
TEL: 81-3-5733-1111
FAX: 81-3-5733-1211
DELTA ELECTRONICS EUROPE LTD.
WEGALAAN 16,
2132 JC HOOFDDORP,
THE NETHERLANDS
TEL: 31-23-566-8989
FAX: 31-23-5668910
Date: July-2009

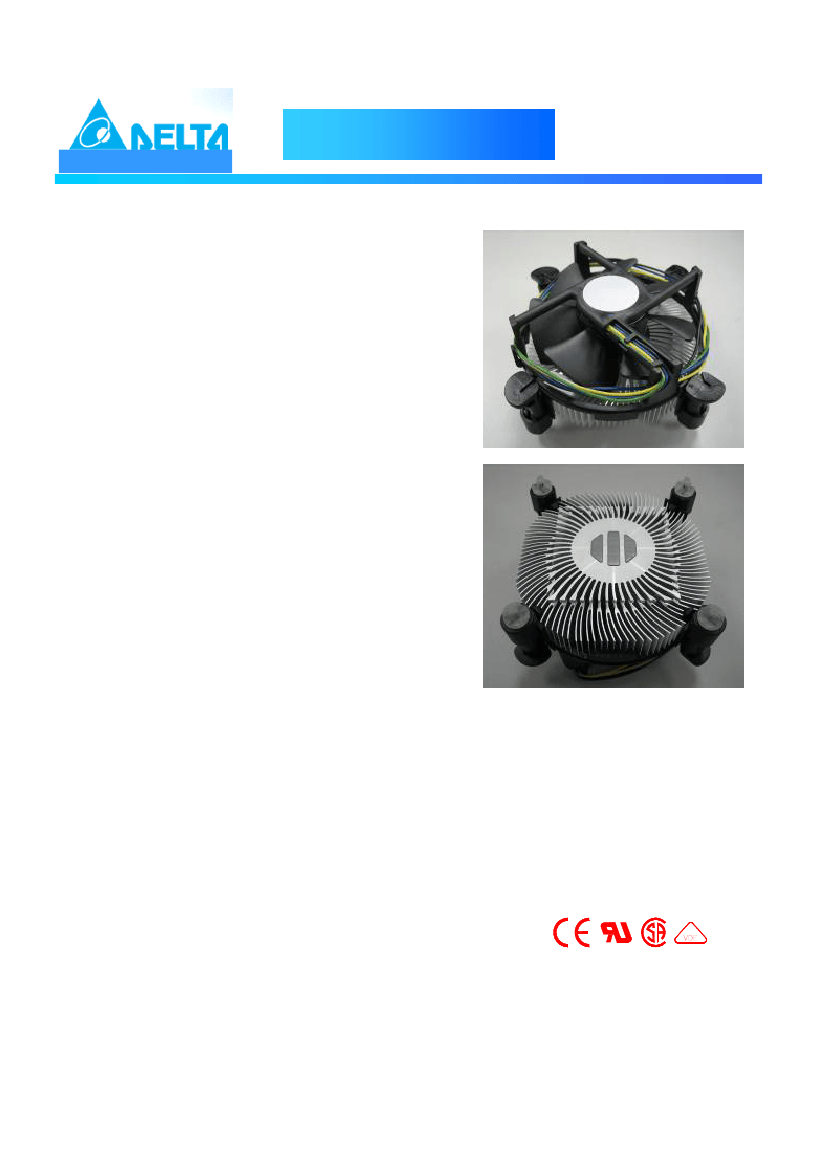

FHS-A9025S17
DELTA ELECTRONICS, INC.
Application:
Intel LGA775 Conroe-L Celeron CPU 400
series
Picture:
Thermal & Mechanical Spec.:
Thermal performance for 35W CPU
HSK Assembly Weight: 205 g (ref.)
Clipping Force: 20 Kgf (ref.)
Component Specification:
1. Heat Sink
Type: Extruded HSK
Material: Aluminum A6063 or Equivalent.
Dimension: 90*90*19.05 mm
2. Thermal interface material
Material: Dow Corning TC-1996 or Equivalent.
3. Fan
(90x90x25 mm with single speed)
Rated Voltage: 12 V
Life Time:
Superflo bearing 50000 hrs
Connector:
a. Lead wire: UL 1430 AWG#26
pin 1: black wire--------(-)
pin 2: yellow wire----------(+)
pin 3: green wire---------(F00)
b. Housing: Molex 2695-03 22-01-3037 or equivalent
c. Terminal: Molex 2759T 08-50-0113 or equivalent
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice
DELTA ELECTRONICS, INC.
252, Shang Ying Road, Kuei San
TAOYUAN SHIEN 333,
TAIWAN,R.O.C.
TEL: 886-3-3591968 EXT 2073
FAX: 886-3-3591991
DELTA PRODUCTS CORPORATION
4405 CUSHING PARKWAY
FREMONT, CA 94538, U.S.A.
TEL: 1-510-668-5100
FAX: 1-510-668-0680
DELTA ELECTRONICS(JAPAN), INC.
DELTA SHIBADAIMON BLDG.
2-1-14 SHIBADAIMON, MINATO-KU,
TOKYO, 105-0012, JAPAN
TEL: 81-3-5733-1111
FAX: 81-3-5733-1211
DELTA ELECTRONICS EUROPE LTD.
WEGALAAN 16,
2132 JC HOOFDDORP,
THE NETHERLANDS
TEL: 31-23-566-8989
FAX: 31-23-5668910
Date: July-2009

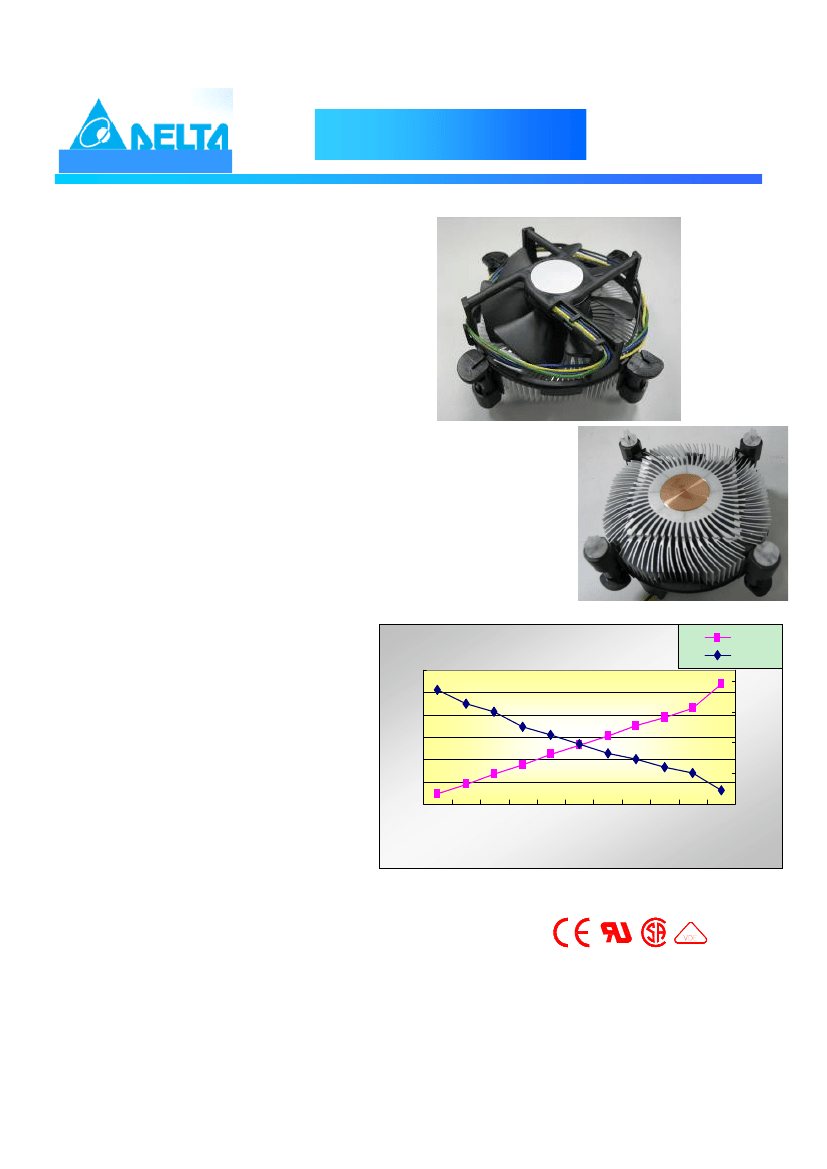

FHS-A9025S18
DELTA ELECTRONICS, INC.
Application:
Intel LGA775 Yorkfield (45nm) CPU
Q9000/Q8000 sequence (Low Profile)
Picture:
Thermal & Mechanical Spec.:
Thermal performance for 95W CPU
HSK Assembly Weight: 290 g (ref.)
Clipping Force: 20 Kgf (ref.)
Component Specification:
1. Heat Sink
Type: Thermal Shrink with Cu Core
Material: Aluminum A6063 & Copper C1100 or Equivalent.
Dimension: 90*90*19.05 mm
2. Thermal interface material
Material: Dow Corning TC-1996 or Equivalent.
3. Fan
(90x90x25 mm with Thermistor & PWM Control)
Rated Voltage: 12 V
Thermal Performance Curve
Life Time:
37
Superflo bearing 50000 hrs
35
Connector:
33
N o i s e (d b )
Noise
Rca
0.43
0.40
0.37
0.34
0.31
a. Lead wire: UL 1430 AWG#26
27
pin 1: black wire--------(-)
25
pin 2: yellow wire----------(+)
1800 1915 2030 2145
pin 3: green wire---------(F00)
pin 4: blue wire------------(PWM)
b. Housing: Molex 47054-1000 or equivalent
c. Terminal: Molex 2759T 08-50-0113 or equivalent
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice
DELTA ELECTRONICS, INC.
252, Shang Ying Road, Kuei San
TAOYUAN SHIEN 333,
TAIWAN,R.O.C.
TEL: 886-3-3591968 EXT 2073
FAX: 886-3-3591991
DELTA PRODUCTS CORPORATION
4405 CUSHING PARKWAY
FREMONT, CA 94538, U.S.A.
TEL: 1-510-668-5100
FAX: 1-510-668-0680
31
29
2260 2375 2490 2605 2720 2835 3150
(rmp)
DELTA ELECTRONICS(JAPAN), INC.
DELTA SHIBADAIMON BLDG.
2-1-14 SHIBADAIMON, MINATO-KU,
TOKYO, 105-0012, JAPAN
TEL: 81-3-5733-1111
FAX: 81-3-5733-1211
DELTA ELECTRONICS EUROPE LTD.
WEGALAAN 16,
2132 JC HOOFDDORP,
THE NETHERLANDS
TEL: 31-23-566-8989
FAX: 31-23-5668910
Date: July-2009
θ c a (℃ / W )
