3115PS-12W-B20-A00 datasheet, PDF

Datasheet> All Categories > Thermal management products> 3115PS-12W-B20-A00

3115PS-12W-B20-A00: Descriptionfan AC axial 115v 80x38 2300 rpm; CategoryThermal management products; File Size374KB，2 Pages; ManufacturerNMB ( Minebea ); Websitehttp://www.nmbtc.com; Environmental Compliance

Download Datasheet View All

3115PS-12W-B20-A00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3115PS-12W-B20-A00	-	-	View	Buy Now

3115PS-12W-B20-A00 Overview

fan AC axial 115v 80x38 2300 rpm

Preview

Download Datasheet

View All

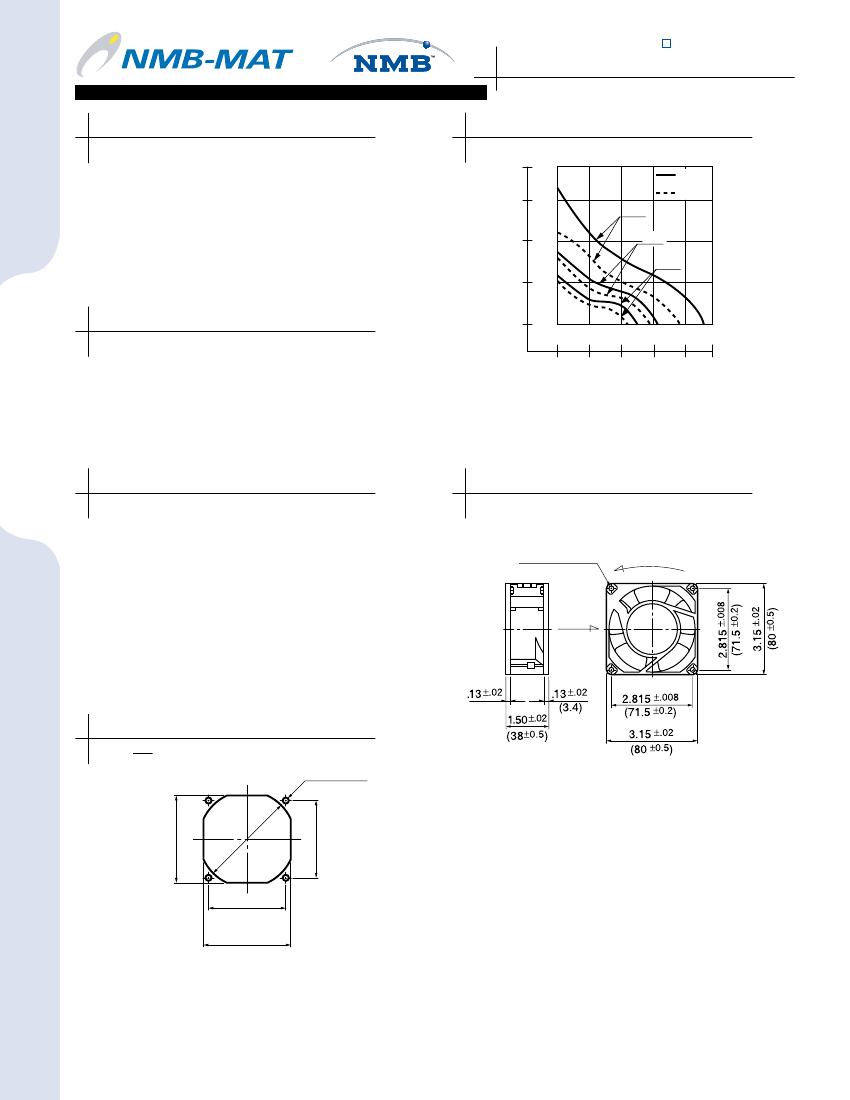

(80

)

3115PS

NMBTC.COM / 818.341.3355

General Specifications

Motor Structure:

Shaded Pole Induction Motor

Motor Protection:

Impedance Protection

Insulation Resistance:

10M Ω or over with a DC500V Megger

Characteristic Curves

(Pa)

Static Pressure

1.0

/min)

60Hz

50Hz

B30

B20

B10

Dielectric Withstand Voltage:

AC 700V 1s

Allowable Ambient Temperature Range:

-10°C ~ +70°C (Operating)

-40°C ~ +70°C (Storage)

(non-condensing environment)

AC Axial Fans

Expected Life

Failure Rate: 10%

25°C

50,000 Hours

0.2

0.4

0.6

0.8

Air Flow

Material

Casing

Impeller

: Aluminum

: Polycarbonate

(Glass Fiber-Containing)

Bearing

: Ball Bearing

Lead Wire : AWG22, UL3266, CSA CL1252

Terminal : Faston #110 or equivalent

Outline

.169

8 – ( 4.3

± 0.2

)

ROTATION

AIR

NAME PLATE

Panel Cut-Outs

inch

Units: (mm)

(3.4)

Flange Type

.169

4 – ( 4.3)

88 .46

)

2.815

(71.5)

3.03

(77)

INLET SIDE / OUTLET SIDE

3.6

2.815

(71.5)

3.03

(77)

(
