PFB1212EHE

Description
12v DC fan 120x120x38 MM
CategoryThermal management products
File Size474KB，1 Pages
ManufacturerDELTA
Websitehttp://www.deltaww.com/
Environmental Compliance
Download Datasheet Compare View All

PFB1212EHE Online Shopping

Suppliers Part Number Price MOQ In stock
PFB1212EHE - - View Buy Now

PFB1212EHE Overview

12v DC fan 120x120x38 MM

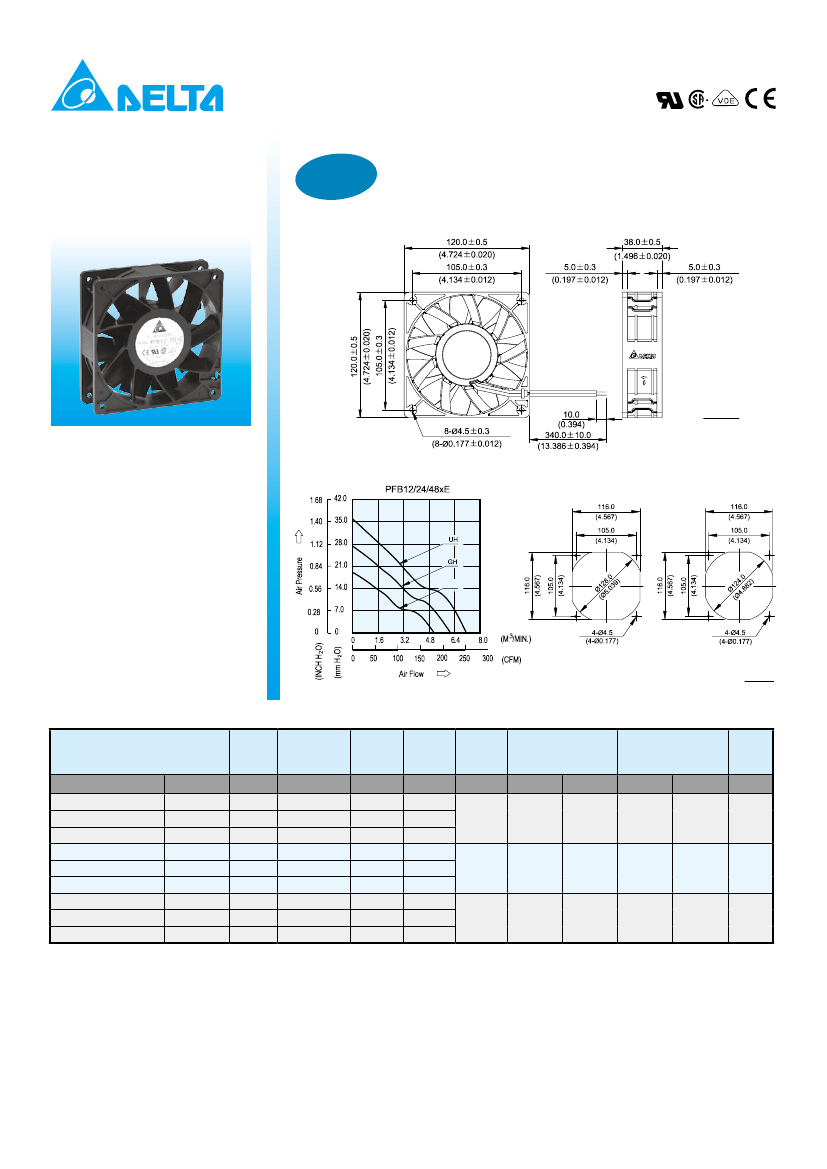

Preview

Download Datasheet
PFB
120 x 120 x 38 MM SERIES
DRAWING
■
DIMENSIONS
LABEL
UNIT :
mm
(INCH)
*
Bearing Type
Ball Bearings
*
Material
Impeller & Frame: Plastic (UL 94V-0)
Lead Wires :
*
UL 1007 AWG #24 OR Equivalent
Red Wire Positive(+)
Black Wire Negative(-)
*
Weight : 380g (13.40 oz)
■
P
& Q CURVE
(AT RATED VOLTAGE)
■
MOUNTING
OUTLET SIDE
PANEL CUTOUT
INLET SIDE
EH
UNIT:
mm
(INCH)
MODEL
PART NO.
PFB1212EHE
PFB1224EHE
PFB1248EHE
PFB1212GHE
PFB1224GHE
PFB1248GHE
PFB1212UHE
PFB1224UHE
PFB1248UHE
FUNCTION
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
Rated
Voltage
VDC
12
24
48
12
24
48
12
24
48
Operating
Voltage
Range
VDC
8.0 to 13.2
14.0 to 26.5
30.0 to 56.0
8.0 to 13.2
14.0 to 26.5
30.0 to 56.0
8.0 to 13.2
14.0 to 26.5
30.0 to 56.0
Input
Current
Amp
1.60
0.90
0.45
2.70
1.35
0.68
4.00
2.00
1.00
Input
Power
Watt
19.20
21.60
21.60
32.40
32.40
32.64
48.00
48.00
48.00
Speed
R.P.M.
4000
Maximum
Air Flow
m
3
/min
5.133
CFM
181.27
Maximum
Air Pressure
mmH
2
O
19.08
IN H
2
O
0.751
Noise
dB-A
59.0
4800
6.167
217.79
27.31
1.075
64.0
5500
7.160
252.85
35.88
1.412
66.5
* Function type is optional.
* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
* Noise is measured in anechoic chamber in free air, one meter from intake side.
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
106
http://www.deltaww.com

PFB1212EHE Related Products

PFB1212EHE PFB1212UHE PFB1224GHE PFB1212GHE
Description 12v DC fan 120x120x38 MM 12v DC fan 120x120x38 MM 24v DC fan 120x120x38 MM fan DC axial 12v 120x38 4800rpm
Standard Package - 36 36 36
Category - Fans, Thermal Manageme Fans, Thermal Manageme Fans, Thermal Manageme
Family - DC Fans DC Fans DC Fans
Voltage - Rated - 12VDC 24VDC 12VDC
Size / Dimensi - Square - 120mm L x 120mm H x 38mm W Square - 120mm L x 120mm H x 38mm W Square - 120mm L x 120mm H x 38mm W
Air Flow - 252.9 CFM (7.16m³/min) 217.8 CFM (6.17m³/min) 217.8 CFM (6.17m³/min)
Static Pressure - 1.412 in H2O (351.7 Pa) 1.075 in H2O (267.8 Pa) 1.075 in H2O (267.8 Pa)
Bearing Type - Ball Ball Ball
Fan Type - Tubeaxial Tubeaxial Tubeaxial
Noise - 66.5 dB(A) 64 dB(A) 64 dB(A)
Power (Watts) - 48W 32.4W 32.4W
RPM - 5500 RPM 4800 RPM 4800 RPM
Terminati - 2 Wire Leads 2 Wire Leads 2 Wire Leads
Weigh - 0.838 lb (380.11g) 0.838 lb (380.11g) 0.838 lb (380.11g)
Current Rating - 4A 1.35A 2.7A
Voltage Range - 8 ~ 13.2VDC 14 ~ 26.5VDC 8 ~ 13.2VDC
Material - Frame - Plastic Plastic Plastic
Material - Blade - Plastic Plastic Plastic
Dynamic Catalog - PFB Series PFB Series PFB Series
Associated Produc - RP973-ND - FAN FILTER SET 120X1201053-1407-ND - FAN GUARD 120MM WIRE MESH BLACK1053-1406-ND - FAN GUARD 120MM WIRE MESH NATURL1053-1397-ND - FAN GUARD LOUVERED 120MM BLACK1053-1387-ND - FAN FILTER 120MM 45PPI1053-1386-ND - FAN FILTER 120MM 30PPI1053-1362-ND - FAN GUARD PLASTIC 120MM PUSH ON1053-1361-ND - FAN GUARD PLASTIC 120MM1053-1359-ND - FAN GUARD METAL 120MM1053-1358-ND - FAN GUARD METAL 120MM BLACK1053-1357-ND - FAN GUARD METAL 120MMR87F-FL120S-ND - FILTER SCREEN FOR 120MM FANSR87F-FL120-ND - FILTER PLASTIC FOR 120MM FANSR87F-FG120-ND - GRILL GUARD FOR 120MM FANS259-1628-ND - FAN GUARD 120MM METAL08218-ND - WIRE FORM FAN GUARD 120MM08203-ND - WIRE FORM FAN GUARD 120MM08202-ND - WIRE FORM FAN GUARD 120MM08195-ND - WIRE FORM FAN GUARD 120MM08164-ND - WIRE FORM FAN GUARD 120MM08139-ND - WIRE FORM FAN GUARD 120MMQ832-ND - WIRE FORM FAN GUARD 120MM08124-ND - WIRE FORM FAN GUARD 120MM08122-ND - WIRE FORM FAN GUARD 120MMQ838-ND - PLASTIC FAN GUARD RETAINER 120MMQ852-ND - PLASTIC FAN GUARD 120MM06450-C-ND - FAN FILTER IRRIDITE CLEAR 120MMQ344-ND - FAN FILTER SCREEN 120MMQ342-ND - FINGER GUARD 120MM METALQ357-ND - FINGER GUARD 120MM ME RP973-ND - FAN FILTER SET 120X1201053-1407-ND - FAN GUARD 120MM WIRE MESH BLACK1053-1406-ND - FAN GUARD 120MM WIRE MESH NATURL1053-1397-ND - FAN GUARD LOUVERED 120MM BLACK1053-1387-ND - FAN FILTER 120MM 45PPI1053-1386-ND - FAN FILTER 120MM 30PPI1053-1362-ND - FAN GUARD PLASTIC 120MM PUSH ON1053-1361-ND - FAN GUARD PLASTIC 120MM1053-1359-ND - FAN GUARD METAL 120MM1053-1358-ND - FAN GUARD METAL 120MM BLACK1053-1357-ND - FAN GUARD METAL 120MMR87F-FL120S-ND - FILTER SCREEN FOR 120MM FANSR87F-FL120-ND - FILTER PLASTIC FOR 120MM FANSR87F-FG120-ND - GRILL GUARD FOR 120MM FANS259-1628-ND - FAN GUARD 120MM METAL08218-ND - WIRE FORM FAN GUARD 120MM08203-ND - WIRE FORM FAN GUARD 120MM08202-ND - WIRE FORM FAN GUARD 120MM08195-ND - WIRE FORM FAN GUARD 120MM08164-ND - WIRE FORM FAN GUARD 120MM08139-ND - WIRE FORM FAN GUARD 120MMQ832-ND - WIRE FORM FAN GUARD 120MM08124-ND - WIRE FORM FAN GUARD 120MM08122-ND - WIRE FORM FAN GUARD 120MMQ838-ND - PLASTIC FAN GUARD RETAINER 120MMQ852-ND - PLASTIC FAN GUARD 120MM06450-C-ND - FAN FILTER IRRIDITE CLEAR 120MMQ344-ND - FAN FILTER SCREEN 120MMQ342-ND - FINGER GUARD 120MM METALQ357-ND - FINGER GUARD 120MM MET RP973-ND - FAN FILTER SET 120X1201053-1407-ND - FAN GUARD 120MM WIRE MESH BLACK1053-1406-ND - FAN GUARD 120MM WIRE MESH NATURL1053-1397-ND - FAN GUARD LOUVERED 120MM BLACK1053-1387-ND - FAN FILTER 120MM 45PPI1053-1386-ND - FAN FILTER 120MM 30PPI1053-1362-ND - FAN GUARD PLASTIC 120MM PUSH ON1053-1361-ND - FAN GUARD PLASTIC 120MM1053-1359-ND - FAN GUARD METAL 120MM1053-1358-ND - FAN GUARD METAL 120MM BLACK1053-1357-ND - FAN GUARD METAL 120MMR87F-FL120S-ND - FILTER SCREEN FOR 120MM FANSR87F-FL120-ND - FILTER PLASTIC FOR 120MM FANSR87F-FG120-ND - GRILL GUARD FOR 120MM FANS259-1628-ND - FAN GUARD 120MM METAL08218-ND - WIRE FORM FAN GUARD 120MM08203-ND - WIRE FORM FAN GUARD 120MM08202-ND - WIRE FORM FAN GUARD 120MM08195-ND - WIRE FORM FAN GUARD 120MM08164-ND - WIRE FORM FAN GUARD 120MM08139-ND - WIRE FORM FAN GUARD 120MMQ832-ND - WIRE FORM FAN GUARD 120MM08124-ND - WIRE FORM FAN GUARD 120MM08122-ND - WIRE FORM FAN GUARD 120MMQ838-ND - PLASTIC FAN GUARD RETAINER 120MMQ852-ND - PLASTIC FAN GUARD 120MM06450-C-ND - FAN FILTER IRRIDITE CLEAR 120MMQ344-ND - FAN FILTER SCREEN 120MMQ342-ND - FINGER GUARD 120MM METALQ357-ND - FINGER GUARD 120MM METAL09450-M/60-ND - FAN FILTER ELEME
