CP3225-156.250-3.3-100-TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> CP3225-156.250-3.3-100-TR

Preview

CP3225-156.250-3.3-100-TR: DescriptionLVPECL Output Clock Oscillator,; CategoryPassive components oscillator; File Size224KB，3 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CP3225-156.250-3.3-100-TR Overview

LVPECL Output Clock Oscillator,

CP3225-156.250-3.3-100-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7198167934
package instruction	LCC6,.09X.12,59/47
Reach Compliance Code	compliant
YTEOL	6.44
Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	156.25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVPECL
Output load	50 OHM
Encapsulate equivalent code	LCC6,.1X.13,59/47
physical size	3.2mm x 2.5mm x 1.2,mm
longest rise time	1 ns
Maximum slew rate	50 mA
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

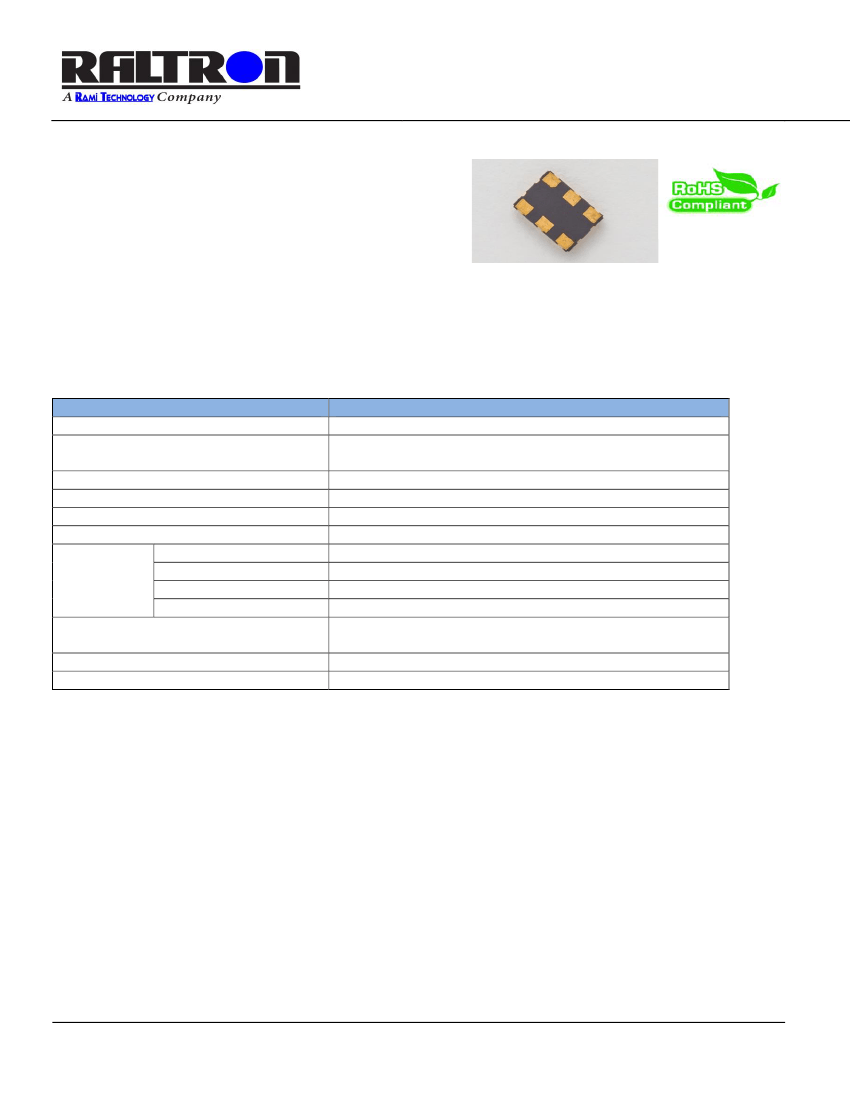

LVPECL SURFACE MOUNT

CLOCK OSCILLATOR

SERIES CP3225

◼

ELECTRICAL SPECIFICATION

PARAMETER

Frequency Range

Operating Temperature Range

Frequency Stability

Storage Temperature Range

Supply Voltage (Vcc)

Supply Current

Symmetry

Logic “0” Level

Output

LVPECL

Logic “1” Level

Load

Enable / Disable Function

Rise / Fall Time

RMS Phase Jitter (12kHz

~

20 MHz)

VALUE

13.500 ~ 156.250 MHz

-20°C

~

+70°C Standard

-40°C ~ +85˚C Extended

±25 ppm, ±50 ppm, ±100ppm

-55°C to +125°C

1.8 V, 2.5 V, 3.3 V

50 mA max

40% to 60% at 50% Wave form (45% to 55% Available)

Vcc - 1.620 V max

Vcc - 1.025 V min

50 Ω (to V

CC

-2 V)

Pin 1: High or Open / Output enabled (Pins 4 & 5)

Pin 1: Low / Output disabled (High impedance)

1 ns max at 20% ~ 80% Output swing level

1 ps max

RALTRON ELECTRONICS

▪

10400 N.W. 33

rd

STREET

▪

Miami, Florida 33172

▪

U.S.A.

Telephone: 1-305-593-6033

▪

Fax: 1-305-594-3973

▪

e-mail: sales@raltron.com

▪

web site: www.raltron.com
