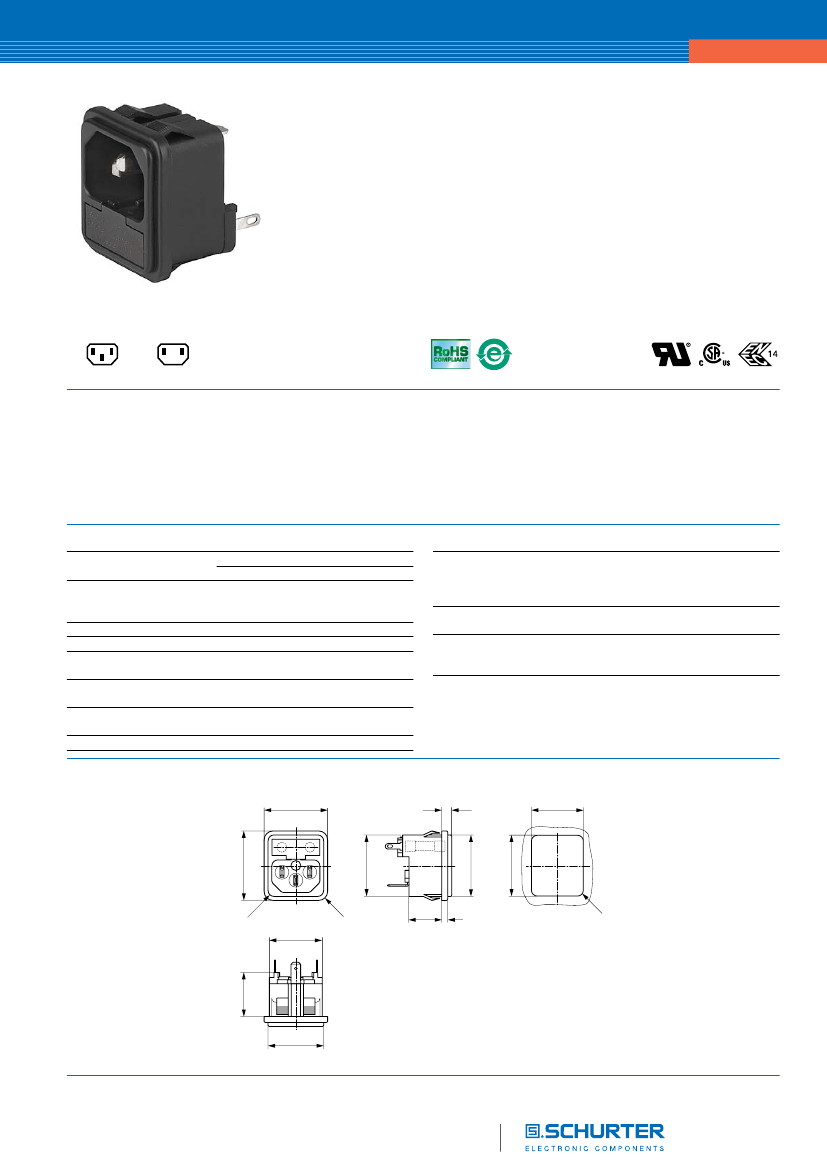

Power entry modules without line filter
www.schurter.com/PG05
IEC Appliance Inlet C14 or C18 with Fuseholder 1- or 2-pole
1064
Snap-In Version
C14
70° C
C18
70° C
Description
- Panel Mount:
Snap-in version, from front side Appliance Inlet, Protection class I, Fu-
seholder for fuse-links 5 x 20 mm
- Solder terminals or quick connect terminals
Characteristics
Weblinks
- The fuse drawer “Fingergrip” can be removed by hand
The fuseholder is accessible from the equipment front
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, Mating Connectors,
e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-
Drawings, Accessories, Mounting instruction, Detailed request for
product
Approvals
- UL File Number: E93617
- CSA File Number: 27324
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
10 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
Solder terminals or quick connect ter-
minals
Snap-in
1.0 - 2.5 mm
PA6, black / grey / white, UL 94V-0
Appliance Inlet
C14 / C18 acc. to IEC 60320
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I or II
1 or 2 pole, acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
Admissible power acceptance at hig-
her ambient temperature see derating
curves
Fuseholder
Power Acceptance @ Ta >
23°C
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Material: Housing
Dimensions
32
5
26.9
- 0
+0.2
31.5
- 0
31
35
31
+0.2
R
R
4.
<3
3
16.5
3
5
R
26.7
22.2
28
Length of the terminal please find at the order code configuration table
Connectors
1
1064
www.schurter.com/PG05
Config. Code
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
Power entry modules without line filter
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Type
Type
protection class 2
protection class 1
Configuration
key
B
X
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Terminal Fuseholder
Terminal Fuseholder
solder terminal
Configuration
key
1
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Terminals
Terminal L
Configuration
key
2
3
8
9
B
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Color
Color
Black
Grey
White
Configuration
key
A
B
D
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
connection to fuse holder
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Style
Style
snap-in standard type
Configuration
key
3
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Terminals
Terminal N
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
connection to fuse holder
Symbols similar as in table A
Configuration
key
2
3
8
9
B
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Dimension X
Dimension "X"
00
The dimension "X" is dispalyed in (
1
/
10
mm). This information is also valid for the
order code
Configuration
key
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Features
Features
dead cover
holder for 1 or 2 fuses (text legible, when inlet on top)
holder for 1 or 2 fuses (text legible, when inlet on bottom)
Configuration
key
1
4
5
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Terminals
Terminal Ground
without terminal
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
Symbols similar as in table A
Configuration
key
0
2
3
8
9
1064
|
-
|
H
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Switches
Switches
not used
Configuration
key
0
Packaging unit
50 Pcs
2
Connectors
Power entry modules without line filter
www.schurter.com/PG05

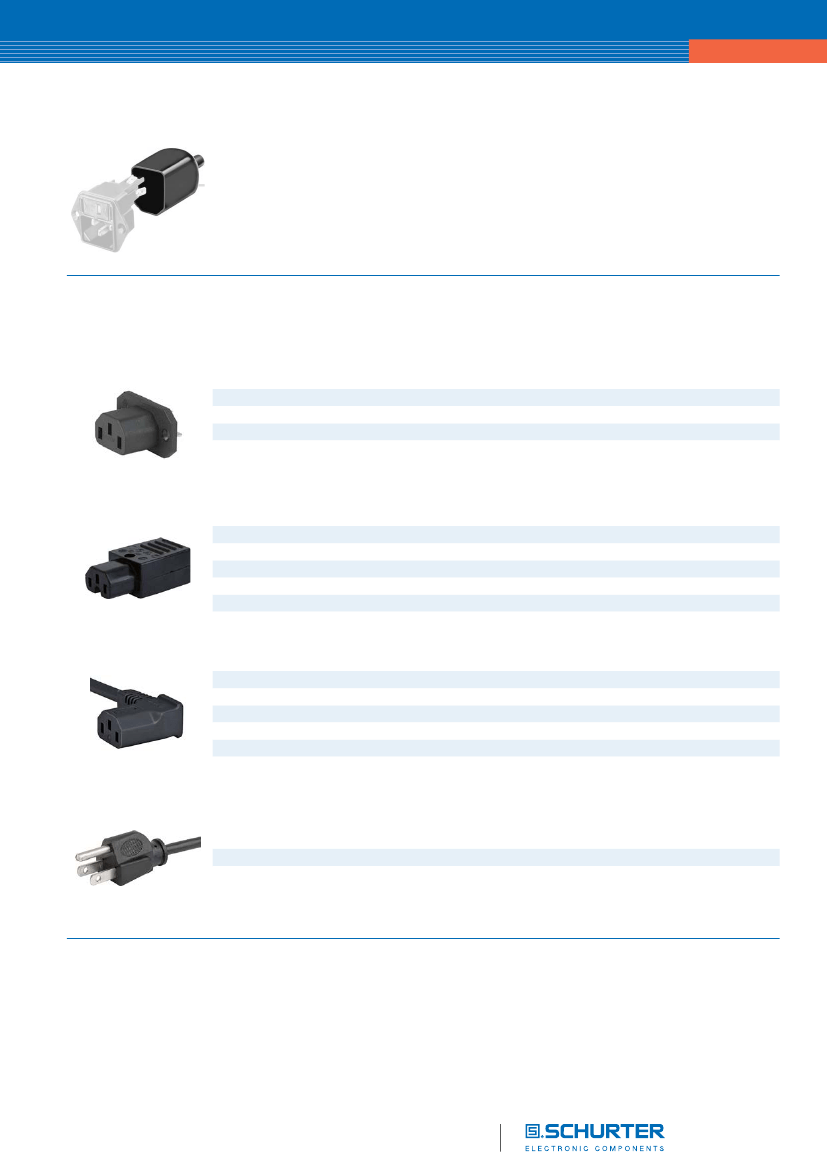

Accessories
Description
1064
Assorted Covers
Rear Cover
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
Appliance Outlet further types to 1064
4787
4788
5091
5092
Connector Overview complete
IEC Connector C15, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
Connector further types to 1064
Power Cord Overview complete
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13
Power Cord further types to 1064
0311
3011
3012
3013
3020
...
0101
0102
0102-G
0112
4012
...
Power Supply or Interconnection Cord Overview complete
Diverse Power Supply and Interconnection Cords 10 A
Power Supply or Interconnection Cord further types to 1064
Cord Sets 10 A
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
3
21.08.2013
