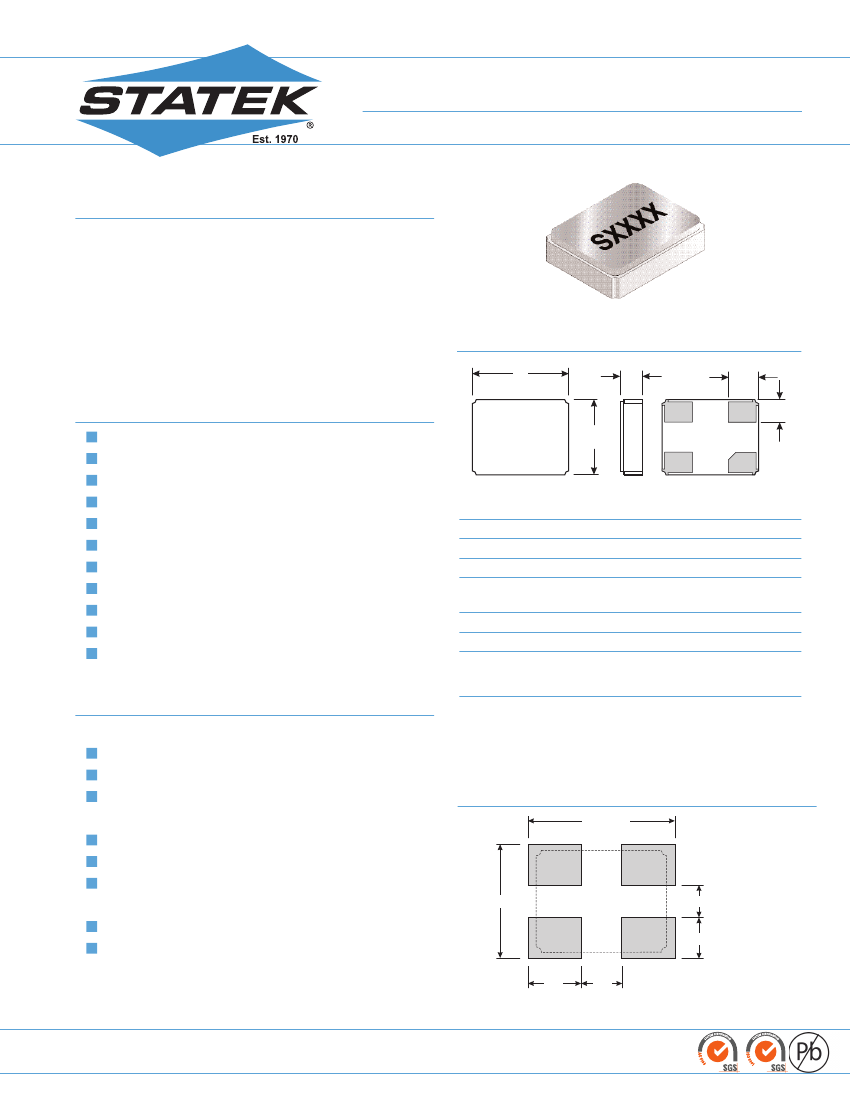

CXOXULP OSCILLATOR

32.768 kHz

Ultra-Low Power/Fast Start-Up/High Shock

DESCRIPTION

The CXOXULP 32.768 kHz oscillator achieves the low

power comparable with a tuning fork design and the fast

start-up and tight frequency stability attained by an AT cut

crystal design. Designed for applications requiring ultra-

low current (17 µA), fast start-up time (2 ms), and a tight

frequency stability (±30 ppm to ±100 ppm) over a wide

temperature range (-55

C to +125

C). These oscillators

are also capable of withstanding significantly higher shock

than a standard tuning fork design.

FEATURES

DIMENSIONS

TOP

BOTTOM

Ultra-low current (typical 17 µA)

Fast start-up (typical 2 ms)

Tight tolerance

High shock resistance

Low aging

CMOS output

Optional Output Enable/Disable with Tri-State

Low EMI emission

Hermetically sealed ceramic package

Full military testing available

Designed and manufactured in the USA

DIM

TYPICAL

inches

0.126

0.099

3.20

2.50

1.00

1.12

1.00

0.75

MAXIMUM

inches

0.136

0.107

0.043

0.048

0.041

0.031

3.40

2.70

1.09

1.21

1.10

0.85

(SM1)

0.039

(SM3/SM5)

0.044

0.040

0.030

PIN CONNECTIONS

APPLICATIONS

1. Output Enable/Disable (E) or no connection (N)

2. Ground

3. Output

4. V

SUGGESTED LAND PATTERN

0.141 (3.6)

Military, Aerospace & Avionics

Communications

Navigation

GPS

Industrial, Computer & Communications

Miniature clock oscillator

Handheld instrumentation

Transponder/Animal migration

Medical

Test & diagnostic equipment

Handheld devices

0.110 (2.9)

0.031 (0.8)

0.039 (1.05)

0.051

(1.3)

inches (mm)

0.039

(1.0)

10216 Rev C

STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256

www.statek.com

SPECIFICATIONS

ABSOLUTE MAXIMUM RATINGS

Specifications are typical at 25

C unless otherwise noted.

Specifications are subject to change without notice. Tighter

specifications available (contact factory).

Supply Voltage

Calibration Tolerance

Frequency Stability

Over Temperature

Output Load (CMOS)

Aging, first year

Shock

Vibration

3.3 V ±10%

±25 ppm, ±50 ppm, ±100 ppm

±10 to ±50 ppm for Commercial

±20 to ±100 ppm for Industrial

±50 to ±100 ppm for Military

15 pF

5 ppm

Std: 5,000 g, 0.3 ms, ½ sine

HG: 30,000 g, 0.5 ms, ½ sine

20 g, 10-2,000 Hz swept sine

Supply Voltage V

-0.3 V to 5.0 V

Storage Temperature

-55

C to 125

Maximum Process Temperature 260

C for 20 seconds

ENABLE/DISABLE OPTIONS (E/N)

For the 32.768 kHz CXOXULP, Statek offers two

enable/disable options: E and N. The E-version has a Tri-

State output and stops oscillating internally when the

output is put into the high Z state. The N-version does not

have PIN 1 connected internally and so has no

enable/disable capability. The following table summarizes

the Enable/Disable option E.

Operating Temp. Range -10

C to 70

C (Commercial)

-40

C to 85

C (Industrial)

-55

C to 125

C (Military)

Electrical characteristics:

SYMBOL PARAMETER

MIN

TYP

MAX

UNIT

ENABLE/DISABLE OPTION E

FUNCTION TABLE

Enable (Pin 1 High*) Disable (Pin 1 Low)

Output

Frequency Output

Oscillates

High Z State

Stops

startup

Output Voltage High

Output Voltage Low

Start-up Time

Rise Time (10%-90%)

Fall Time (10%-90%)

Duty Cycle

Input Current

0.9V

2.0

2.6

2.4

0.1V

Oscillator

When PIN 1 is allowed to float, it is held high by an internal pull-up resistor.

PACKAGING OPTIONS

CXOXULP

- Tray Pack

- 12 mm tape, 7” or 13” reels

Per EIA 481 (see Tape and Reel data

sheet #10109)

1. Other voltages available. Contact factory.

2. Other tolerances available.

3. Does not include calibration tolerance. Other tolerances available.

4. Higher shock available. Contact factory.

5. Per MIL-STD-202G, Method 204D, Condition D. Random vibration testing also available.

6. All parameters are measured at 25

C with a 10 M and 15 pF load with V

= 3.3 V.

HOW TO ORDER CXOXULP 32.768 kHz SURFACE MOUNT CRYSTAL OSCILLATORS

CXOXULP

Supply Voltage

1 = 1.8 V

2 = 2.5 V

3 = 3.0 V

4 = 3.3 V

“S” if special or

custom design.

Blank if Std.

Enable/Disable

Option

E or N

SM3

32.768k /

Frequency

k = kHz

Calibration

Tolerance

@ 25

(in ppm)

Frequency

Stability over

Temp. Range

(in ppm)

HG = High

Shock.

Otherwise

leave blank

Terminations

Blank = SM1

= Gold Plated

(Lead Free)

SM3 = Solder Dipped

SM5 = Solder Dipped

(Lead Free)

Temp. Range:

C = -10

C to +70

= -40

C to +85

M = -55

C to +125

S = Customer Specified

100

Total

Frequency

Tolerance

(in ppm)

Temp. Range:

C = -10

C to +70

= -40

C to +85

M = -55

C to +125

S = Customer Specified

10216 Rev C

STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256

www.statek.com
