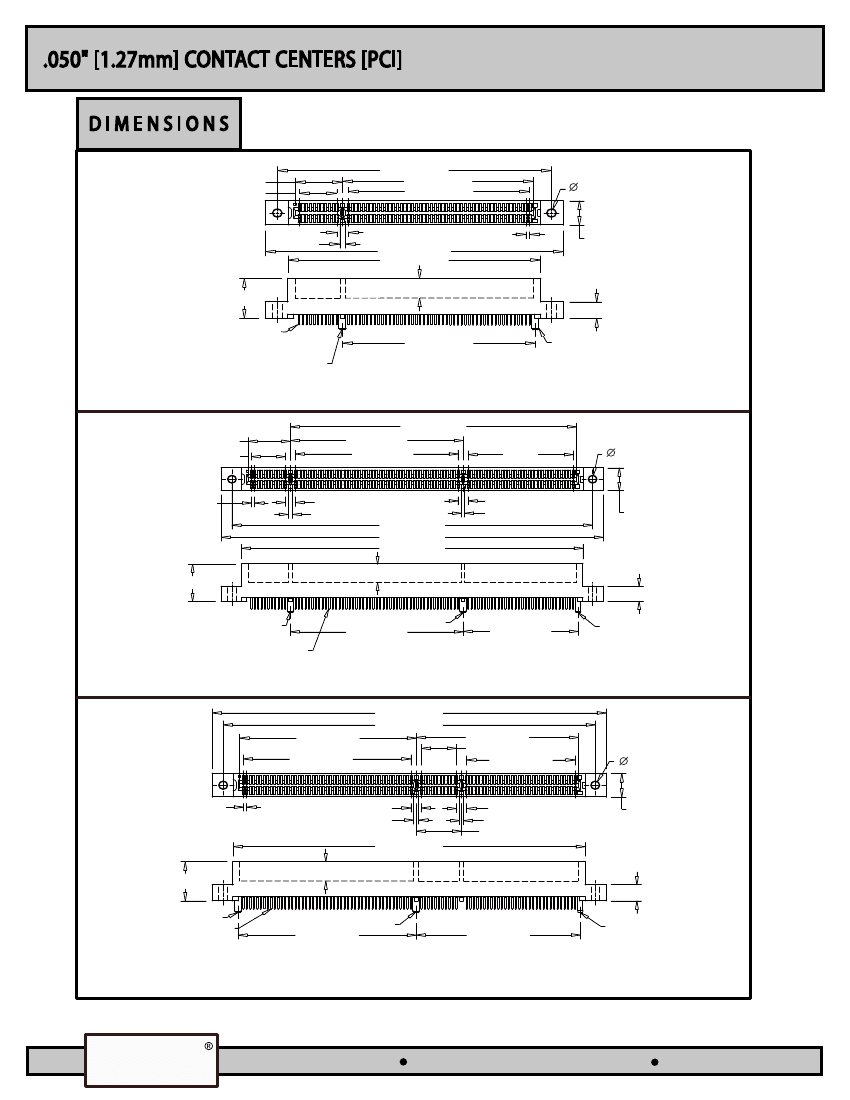

Dimensions in [ ] are in millimeters, all others in inches
3.626 [92.10]
2.525 [64.14]
2.400 [60.96]
.625 [15.88]
.500 [12.70]
.125, 2 PLS. [3.18]
.150 [3.81]
.070 [1.78]
.050 TYP. [1.27]
3.940 [100.08]
3.340 [84.84]
.300 INSERTION DEPTH [7.62]
.370 [9.40]
.610 [15.49]
.250 [6.35]
.012 X .018 [.031 X .046] POST
11 POS.
REFER TO TEMINATION TYPE
(Opposite Page)
.093 [2.36] GUIDE POST
49 POS.
2.550 [64.77]
.060 [1.52] GUIDE POST
RZB60DCHD-S578
60 (11/49) POSITIONS
32 BIT, 3.3 OR 5 VOLT
4.225 [107.32]
2.550 [64.77]
2.400 [60.96]
.625 [15.88]
.500 [12.70]
1.550
[39.37]
.125, 2 PLS. [3.18]
.050 TYP. [1.27]
.150 [3.81]
.070 [1.78]
5.326 [135.28]
5.640 [143.26]
5.040 [128.02]
.300 INSERTION DEPTH [7.62]
.150 [3.81]
.050 [1.27]
.370 [9.40]
.610 [15.49]
11 POS.
.093 [2.36] GUIDE POST
.012 X .018 [.031 X .046] POST
REFER TO TERMINATION TYPE
(Opposite Page)
.250 [6.35]
.093 [2.36] GUIDE POST
49 POS.
32 POS.
2.550 [64.77]
1.700 [43.18]
.060 [1.52] GUIDE POST
RZB92DCHD-S330
92 (11/49/32) POSITIONS
64 BIT, 3.3 VOLT
5.640 [143.26]
5.326 [135.28]
2.525 [64.14]
2.400 [60.96]
2.325 [59.06]
.500 [12.70]
1.550 [39.37]
.125, 2 PLS. [3.18]
.050 TYP. [1.27]
.150 [3.81]
.070 [1.78]
5.040 [128.02]
.300 INSERTION DEPTH [7.62]
.150 [3.81]
.050 [1.27]
.650 [16.51]
.370 [9.40]
.610 [15.49]
.250 [6.35]
.060 [1.52] GUIDE POST
.012 X .018 [0.31 X 0.46] POST,
REFER TO TERMINATION TYPE
(Opposite Page)
49 POS.
.093 [2.36] GUIDE POST
11 POS.
32 POS.
2.350 [59.69]
.060 [1.52] GUIDE POST
2.550 [64.77]
RZB92DCHD-S378
92 (49/11/32) POSITIONS
64 BIT, 5 VOLT
20
s›’’Œ”™
PHONE 760.744.0125
www.SullinsElectronics.com
FAX 760.744.6081

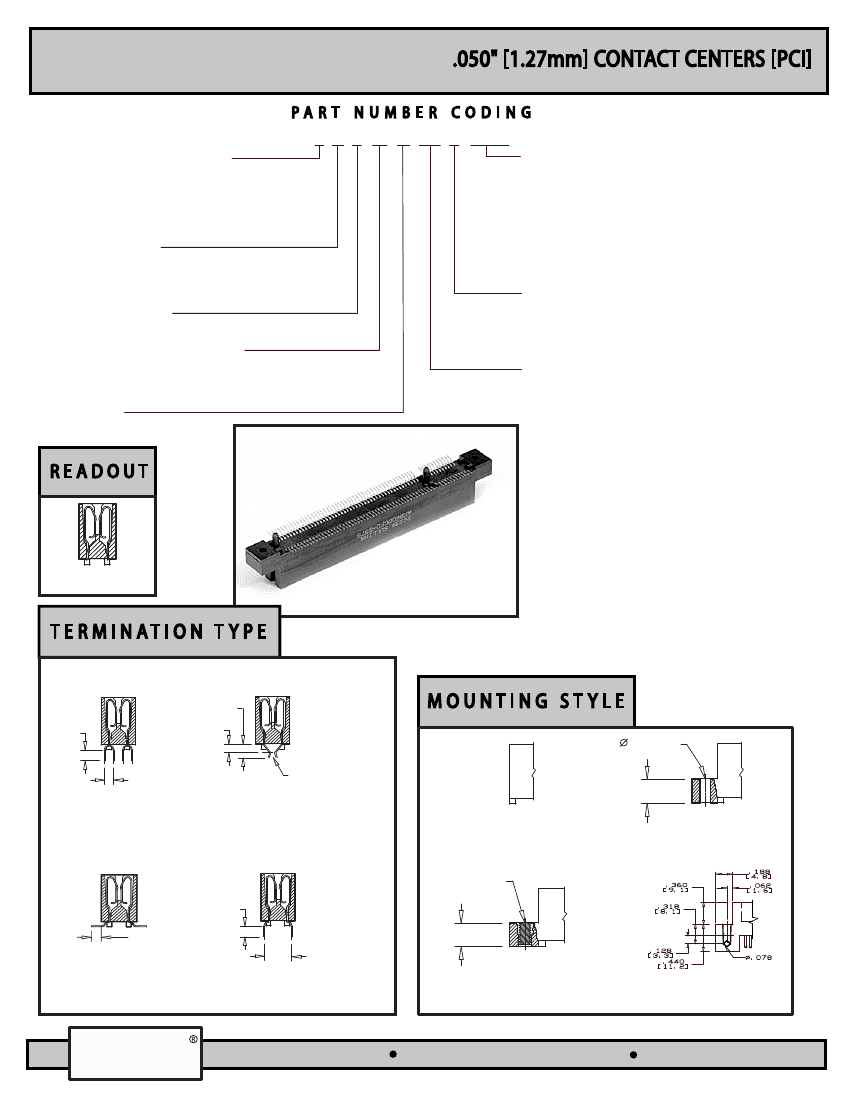

R Z B 60 D CH D -S578
MATERIALS (Insulator/Contact)
R = PPS/Phosphor Bronze
A = PPS/Beryllium Copper
L = PCT/Phosphor Bronze
M = PCT/Beryllium Copper
Consult Factory for Other Materials
CONTACT FINISH
Contact Surface
Z = .000010" Gold
X = .000030" Gold
CONTACT CENTERS
B = .050" [1.27 mm]
NUMBER OF CONTACT POSITIONS
60 = 11/49
(32 Bit, 3.3 or 5 Volt)
92 = 11/49/32
(64 Bit, 3.3 Volt)
or 92 = 49/11/32 (64 Bit, 5 Volt)
READOUT
D = Dual
Termination
.000100" Tin
.000100" Tin
Underplate
.000050" Nickel
.000050" Nickel
MODIFICATIONS
PCI WITH GUIDE POSTS:
-S330 = 92 (11/49/32) Positions (64 Bit, 3.3 Volt)
-S378 = 92 (49/11/32) Positions (64 Bit, 5 Volt)
-S578 = 60 (11/49)
Positions (32 Bit, 3.3 or 5 Volt)
PCI WITHOUT GUIDE POSTS:
-S329 = 92 (11/49/32) Positions (64 Bit, 3.3 Volt)
-S250 = 92 (49/11/32) Positions (64 Bit, 5 Volt)
-S621 = 60 (11/49)
Positions (32 Bit, 3.3 or 5 Volt)
MOUNTING STYLE
D = Flush Mounting
N = No Mounting
T = Flush Mounting With Threaded Insert
Q = Straddel Mount
R = Metal Boardlocks
TERMINATION TYPE
CH = Staggered Dip Solder
CR = Card Extender
CF = Surface Mount
CL = .250" [6.35mm] x .160" [4.06mm] Dip Solder
FEATURES
+
* Accommodates .062
_
.008" PC board
(Consult factory for other board thicknesses)
* PPS or PCT insulator
* Molded-in key available
* High reliability/high cycle hairpin
bellows contact
* 1 amp current rating
* 150 grams normal force minimum
DUAL (D)
FOR PC BOARD LAYOUTS REFER TO WWW.EDGECARDS.COM
.160
[4.06]
.100
[2.54]
ACCOMMODATES
.062 PCB
.125
[3.18]
.125 [3.18]
.100, 3 PLS.
[2.54]
.250 [6.35]
STAGGERED DIP
SOLDER (CH)
CARD EXTENDER (CR)
NO MOUNTING EARS (N)
#4-40
.160
[4.06]
FLUSH MOUNTING (D)
.100
[2.54]
.250 [6.35]
.250
[6.35]
SURFACE MOUNT (CF)
DIP SOLDER (CL)
FLUSH MOUNTING
WITH THREADED INSERT (T)
STRADDLE MOUNT (Q)
Formerly (Z)
