GTCN28-201M-R10 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> GTCN28-201M-R10

GTCN28-201M-R10: DescriptionTELECOM, SURGE PROTECTION CIRCUIT, CDSS2, ROHS COMPLIANT, CERAMIC, PACKAGE-2; CategoryWireless rf/communication Telecom circuit; File Size452KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

GTCN28-201M-R10 Overview

TELECOM, SURGE PROTECTION CIRCUIT, CDSS2, ROHS COMPLIANT, CERAMIC, PACKAGE-2

GTCN28-201M-R10 Parametric

Parameter Name	Attribute value
Objectid	8098025966
package instruction	,
Reach Compliance Code	unknown
JESD-30 code	O-CDSS-N2
Number of functions	1
Number of terminals	2
Maximum operating temperature	90 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	SPECIAL SHAPE
surface mount	YES
Telecom integrated circuit types	GAS DISCHARGE TUBE SUPPRESSOR
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal location	DUAL

Preview

Download Datasheet

View All

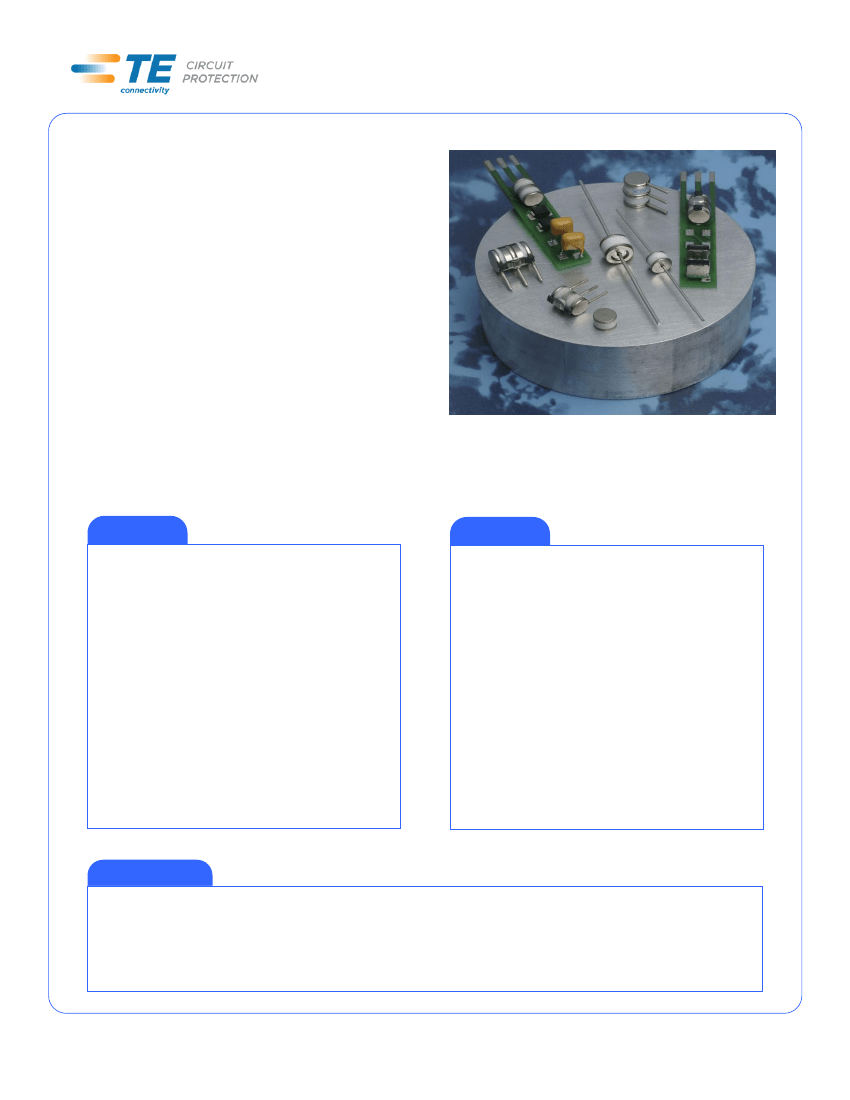

GasDischarge Tubes

GTCX28-XXXM-R10 Series

TE Circuit Protection 8mm 2Pole GDTs (ceramic

gas discharge tubes), are commonly used to help

protect sensitive telecom equipment such as

communication lines, signal lines and data

transmission lines from damage caused by

transient surge voltages that typically result from

lightning strikes and equipment switching

operations.

TE Circuit Protection GDTs offer a high level of

surge protection, low capacitance and a broad

array of breakover voltage levels, making them

suitable for applications such as MDF (Main

Distribution Frame) modules, high data-rate

telecom applications (e.g. ADSL, VDSL), and

surge protection on power lines. Raychem Circuit

Protection GDTs, can help equipment meet the

most stringent regulatory standards.

Benefits:



Helps provide overvoltage fault protection against

high energy surges



Suitable for high-frequency applications

Features:



2Pole, 8mm devices



Broad voltage range from 75V-600V



Various form factors: surface mount, axial leads, no

leads



Low capacitance and insertion loss



UL 497B recognized



RoHS compliant



Devices tested per ITU K.12 recommendations



Non-radioactive materials

Applications:



Telecommunications

- MDF modules, xDSL equipment, RF system

protection, antenna, base station

•

Industrial and consumer electronics, such as

- Surge protectors

- Alarm system



Telecommunications

Gas Discharge Tubes



MDF modules, xDSL equipment, RF sytem

2011, 2014 Tyco Electronics Corporation.

• Industrial and consumer electronics,

SCD27375

Document:

such as

Status: Released

Rev: C Date: SEPTEMBER 29, 2014



Protection, antenna, pase station
