D38999/24FF35SN datasheet, PDF

Datasheet> All Categories > The connector> The connector> D38999/24FF35SN

D38999/24FF35SN: Descriptionconn rcpt 66pos jam nut W/sckt; CategoryThe connector The connector; File Size331KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

D38999/24FF35SN Overview

conn rcpt 66pos jam nut W/sckt

D38999/24FF35SN Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDING
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	F
Termination type	CRIMP
Total number of contacts	66
Base Number Matches	1

Preview

Download Datasheet

View All

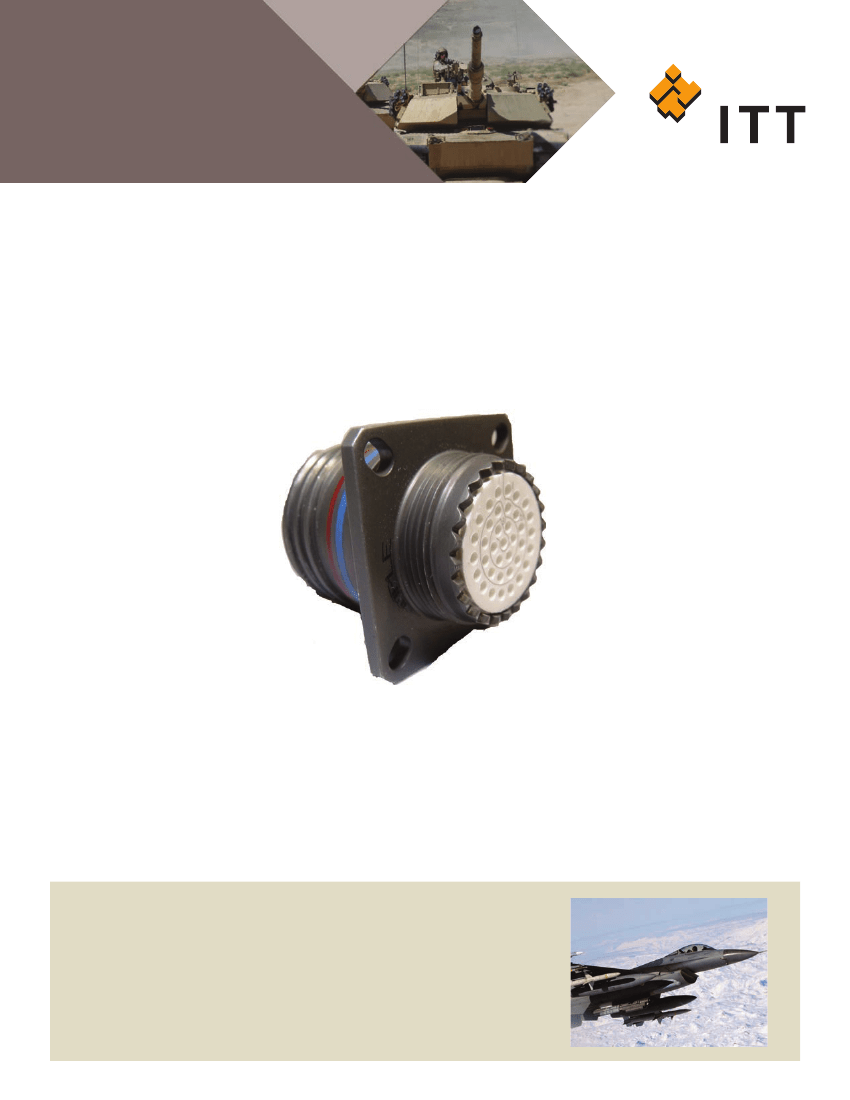

MIL-DTL-38999 Series III

MIL-DTL-38999 Series III Connector

With a proven history of engineering and manufacturing excellence spanning over 90 years, ITT has delivered a

broad range of innovative product solutions that have and continue to enable our customers to meet their most

demanding design requirements. ITT’s design centers provide time proven high quality products and exceptional

service to customers through a global network of field application engineers, sales force and manufacturing

facilities.

The D38999 Series III meets the stringent MIL-DTL-38999 specifications and is ideally suited for the harsh

environments in military and aerospace. This product line is fully qualified under the MIL-C-39029 standards for

contacts, MIL-I-81969 for application tools, and MIL-STD-1560 for insert arrangements.

Innovative Interconnect Benefits

•

Product Features

• Superior EMI shielding provides protection up to

High contact density

65dB at 10 GHZ 100% scoop proof

Wire sealing grommets

• Rear release crimp snap-in contacts

Meets all stringent DLA qualifications requirements

• Interfacial seal inhibits electrolytic erosion of

Available Class F (Nickel), Class G and Class W (DD

contacts.

CAD/Nickel) which accommodates up to 500h salt spray

resistance.

Applications

• Military Vehicles

• Defense Electronics

• Commercial & Military Aircraft

• Tactical Communications

• Avionics
