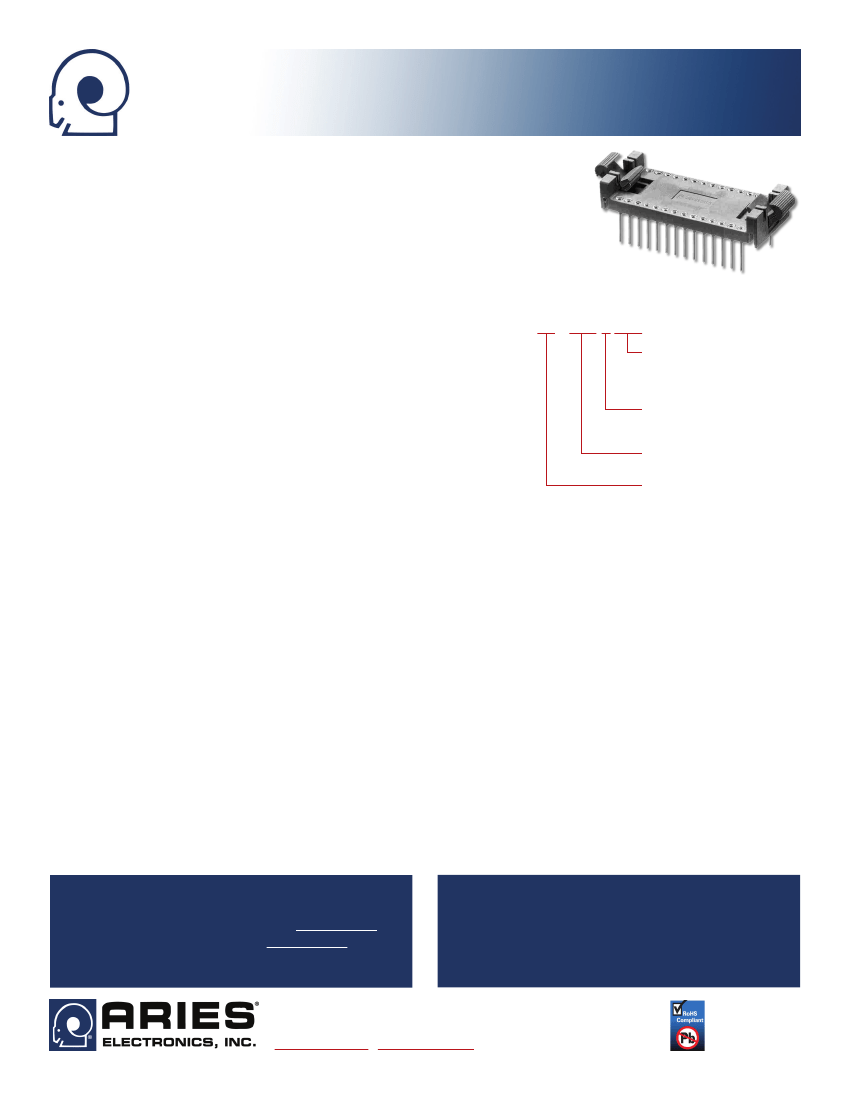

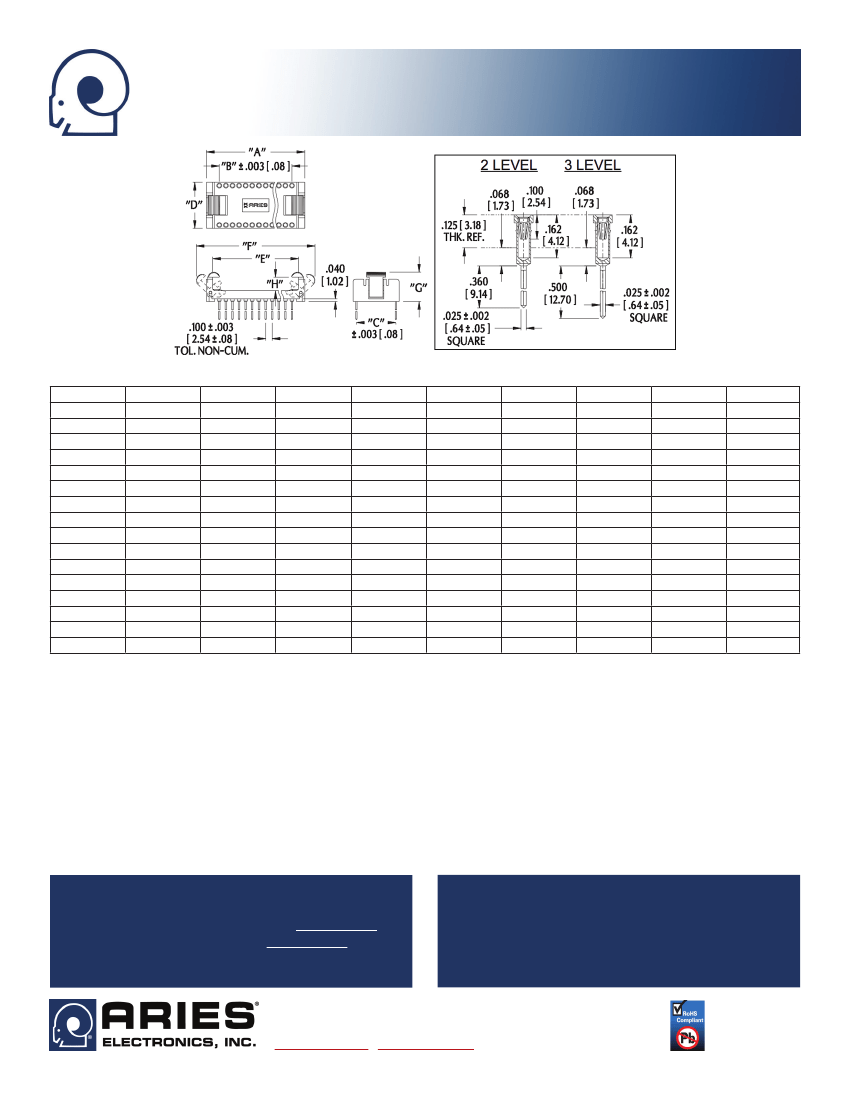

EJECT-A-DIP Lock/Eject DIP Socket
w/Collet Contacts & Wire Wrap Pins
™
FEATURES
• Rugged, Solderable Socket with a Unique Ejector/Latch for Fast In-field Board Maintenance
• Latch Locks-in Connector or Device for High-vibration Environments
• Ejector/Latch removes DIP Packages without Damage
GENERAL SPECIFICATIONS
•
LATCH & BODY: Black UL 94V-0 Glass-filled 4/6 Nylon
•
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
•
PIN BODY PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 –OR– 200µ [5.08µ] min. 93/7 Sn/
Pb per ASTM B545 –OR– 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ
ORDERING INFORMATION
[2.54µ] min. Ni per SAE AMS-QQ-N-290B
XX-CXXX-X XXX
•
6-FINGER COLLECT CONTACTS: BeCu per UNS C17200 ASTM B194-08
•
CONTACT PLATING: 30µ [0.76µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni
Plating
0 = Au Collet, Sn Shell
per SAE AMS-QQ-N-290B
0TL = Au Collet, Sn/Pb Shell
•
CONTACT CURRENT RATING: 3 amps
1 = Au Collet & Shell
•
INSULATION RESISTANCE:
10,000 MΩ at 500VDC
Termination
•
WITHSTANDING VOLTAGE: 1000Vrms
2 = 2-level Wire Wrap
•
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] for Sn plating; -67°F to
3 = 3-level Wire Wrap
257°F [-55°C to 125°C] for Au plating
Dim. “H”
•
INSERTION FORCE: 67g/pin, based on 0.018 [0.46] dia. test lead
(See Table)
•
WITHDRAWAL FORCE: 30g/pin, based on 0.018 [0.46] dia. test lead
No. of Pins
•
NORMAL FORCE: 45g/pin, based on 0.018 [0.46] dia. test lead
(See Table)
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE:
0.045 ±0.002 [1.15 ±0.05] dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR COLLECT SOCKETS w/SURFACE MOUNT PINS, SEE DATA SHEET 12023
FOR COLLET SOCKET w/SOLDER PIN TAILS, SEE DATA SHEET 12024
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12025
Rev. 6.2
1 of 2
EJECT-A-DIP Lock/Eject DIP Socket
w/Collet Contacts & Wire Wrap Pins
™
No. of Pins
14
14
16
16
24
24
24
28
28
28
32
32
32
40
40
40
Catalog No.
14-C280-XX
14-C195-XX
16-C280-XX
16-C195-XX
24-C300-XX
24-C212-XX
24-C182-XX
28-C300-XX
28-C212-XX
28-C182-XX
32-C300-XX
32-C212-XX
32-C182-XX
40-C300-XX
40-C212-XX
40-C182-XX
Dim. “A”
0.950 [24.10]
0.950 [24.10]
1.050 [26.70]
1.050 [26.70]
1.490 [37.85]
1.490 [37.85]
1.490 [37.85]
1.690 [42.90]
1.690 [42.90]
1.690 [42.90]
1.890 [48.00]
1.890 [48.00]
1.890 [48.00]
2.290 [58.20]
2.290 [58.20]
2.290 [58.20]
Dim.“B”
0.600 [15.24]
0.600 [15.24]
0.700 [17.78]
0.700 [17.78]
1.100 [27.94]
1.100 [27.94]
1.100 [27.94]
1.300 [33.02]
1.300 [33.02]
1.300 [33.02]
1.500 [38.10]
1.500 [38.10]
1.500 [38.10]
1.900 [48.26]
1.900 [48.26]
1.900 [48.26]
Centers “C”
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
Dim. “D”
0.400 [10.16]
0.400 [10.16]
0.400 [10.16]
0.400 [10.16]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
Dim. “E”
0.770 [19.56]
0.770 [19.56]
0.870 [22.10]
0.870 [22.10]
1.300 [33.02]
1.300 [33.02]
1.300 [33.02]
1.500 [38.10]
1.500 [38.10]
1.500 [38.10]
1.700 [43.18]
1.700 [43.18]
1.700 [43.18]
2.100 [53.34]
2.100 [53.34]
2.100 [53.34]
Dim. “F”
1.300 [33.02]
1.300 [33.02]
1.540 [39.12]
1.390 [35.31]
1.970 [50.04]
1.850 [47.00]
1.800 [45.72]
2.170 [55.12]
2.050 [52.07]
2.000 [50.80]
2.540 [64.52]
2.070 [52.58]
2.200 [55.88]
2.780 [70.61]
2.650 [67.31]
2.600 [66.04]
Dim “G”
0.490 [12.45]
0.450 [11.43]
0.490 [12.45]
0.450 [11.43]
0.570 [14.48]
0.490 [12.45]
0.460 [11.68]
0.570 [14.48]
0.490 [12.45]
0.460 [11.68]
0.570 [14.48]
0.490 [12.45]
0.460 [11.68]
0.570 [14.48]
0.490 [12.45]
0.460 [11.68]
Dim “H”
0.280 [7.11]
0.195 [4.95]
0.280 [7.11]
0.195 [4.95]
0.300 [7.62]
0.212 [5.39]
0.182 [4.62]
0.300 [7.62]
0.212 [5.39]
0.182 [4.62]
0.300 [7.62]
0.212 [5.39]
0.182 [4.62]
0.300 [7.62]
0.212 [5.39]
0.182 [4.62]
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR COLLECT SOCKETS w/SURFACE MOUNT PINS, SEE DATA SHEET 12023
FOR COLLET SOCKET w/SOLDER PIN TAILS, SEE DATA SHEET 12024
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12025
Rev. 6.2
2 of 2
