TSOP952..W, TSOP954..W
www.vishay.com
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
FEATURES
•
•
•
•
•
•
•
•
Improved dark sensitivity
Improved immunity against optical noise
Very low supply current
Photo detector and preamplifier in one package
Internal filter for PCM frequency
Supply voltage: 2.0 V to 3.6 V
Insensitive to supply voltage ripple and noise
Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS AVAILABLE
3D Models

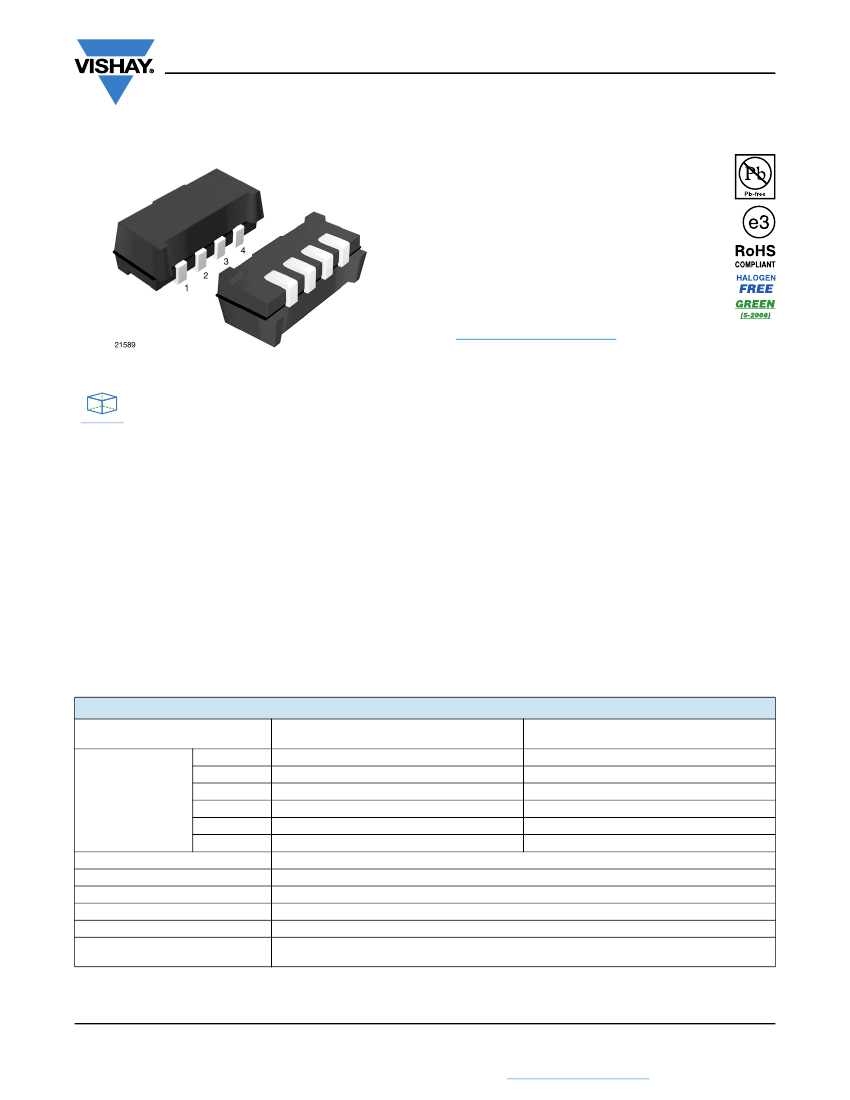

MECHANICAL DATA
1, 4 = GND, 2 = V
S
, 3 = OUT
D
D
3
3
ORDERING CODE
Taping:
TSOP95...WTT - top view taped
TSOP95...WTR - side view taped
DESCRIPTION
The TSOP95...W series devices are the latest generation miniaturized IR receiver modules for infrared remote control systems.
These series provide improvements in sensitivity to remote control signals in dark ambient as well as in sensitivity in the
presence of optical disturbances e.g. from CFLs.
The devices contain a PIN diode and a preamplifier assembled on a lead frame. The epoxy package contains an IR filter. The
demodulated output signal can be directly connected to a microprocessor for decoding.
The TSOP952..W and TSOP954..W, series devices are designed to receive long burst codes (10 or more carrier cycles per
burst). The third digit designates the AGC level (AGC2 or AGC4) and the last two digits designate the band-pass frequency (see
table below). The higher the AGC, the better noise is suppressed, but the lower the code compatibility. AGC2 provides basic
noise suppression and AGC4 provides enhanced noise suppression. Generally, we advise to select the highest AGC that
satisfactorily receives the desired remote code.
These components have not been qualified to automotive specifications.
PARTS TABLE
AGC
30 kHz
33 kHz
Carrier frequency
36 kHz
38 kHz
40 kHz
56 kHz
Package
Pinning
Dimensions (mm)
Mounting
Application
Best choice for
(1)
BASIC NOISE SUPPRESSION
(AGC2)
TSOP95230W
TSOP95233W
TSOP95236W
TSOP95238W
TSOP95240W
(12)
TSOP95256W
(1)
ENHANCED NOISE SUPPRESSION
(AGC4)
TSOP95430W
TSOP95433W
TSOP95436W
(2)(7)
TSOP95438W
(10)
TSOP95440W
TSOP95456W
(8)(9)
Heimdall no lens
1, 4 = GND, 2 = V
S
, 3 = OUT
6.8 W x 3.0 H x 2.35 D
SMD
Remote control
Cisco
(2)
MCIR
(3)
Mitsubishi
(4)
NEC
(5)
Panasonic
(6)
RC-5
(7)
(8)
RCA
(9)
r-step
(10)
Sejin 4PPM
(11)
Sharp
(12)
Sony
RC-6
Notes
• 30 kHz and 33 kHz only available on written request
• See datasheet for TSOP956..W for preferred devices for
(3)(4)(5)(6)(11)
Rev. 1.0, 02-Apr-2019
1
Document Number: 82864
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TSOP952..W, TSOP954..W
www.vishay.com
BLOCK DIAGRAM
16833-21
17170-12
Vishay Semiconductors
APPLICATION CIRCUIT
2
30 kΩ
3
R
1
IR receiver
V
S
Circuit
C
1
OUT
GND
V
O
μC
GND
+ V
S
Transmitter
with
TSALxxxx
Input
AGC
Band
pass
Demo-
dulator
1, 4
PIN
Control circuit
R
1
and C
1
recommended to reduce
supply
ripple for V
S
< 2.2 V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Supply voltage
Supply current
Output voltage
Output current
Junction temperature
Storage temperature range
Operating temperature range
Power consumption
T
amb
≤
85 °C
TEST CONDITION
SYMBOL
V
S
I
S
V
O
I
O
T
j
T
stg
T
amb
P
tot
VALUE
-0.3 to +3.6
3
-0.3 to (V
S
+ 0.3)
5
100
-25 to +85
-25 to +85
10
UNIT
V
mA
V
mA
°C
°C
°C
mW
Note
• Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification
is not implied. Exposure to absolute maximum rating conditions for extended periods may affect the device reliability
ELECTRICAL AND OPTICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Supply current
Supply voltage
Transmission distance
Output voltage low
Minimum irradiance
Maximum irradiance
Directivity
E
v
= 0, test signal see Fig. 1,
IR diode TSAL6200, I
F
= 50 mA
I
OSL
= 0.5 mA, E
e
= 0.7 mW/m
2
,
test signal see Fig. 1
Test signal: NEC code
t
pi
- 4/f
0
< t
po
< t
pi
+ 4/f
0
,
test signal see Fig. 1
Angle of half transmission
distance
TEST CONDITION
E
v
= 0, V
S
= 3.3 V
E
v
= 40 klx, sunlight
SYMBOL
I
SD
I
SH
V
S
d
V
OSL
E
e min.
E
e max.
ϕ
1/2
MIN.
0.25
-
2.0
-
-
-
30
-
TYP.
0.37
0.50
-
17
-
0.22
-
± 75
MAX.
0.45
-
3.6
-
100
0.5
-
-
UNIT
mA
mA
V
m
mV
mW/m
2
W/m
2
°
Rev. 1.0, 02-Apr-2019
2
Document Number: 82864
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TSOP952..W, TSOP954..W
www.vishay.com

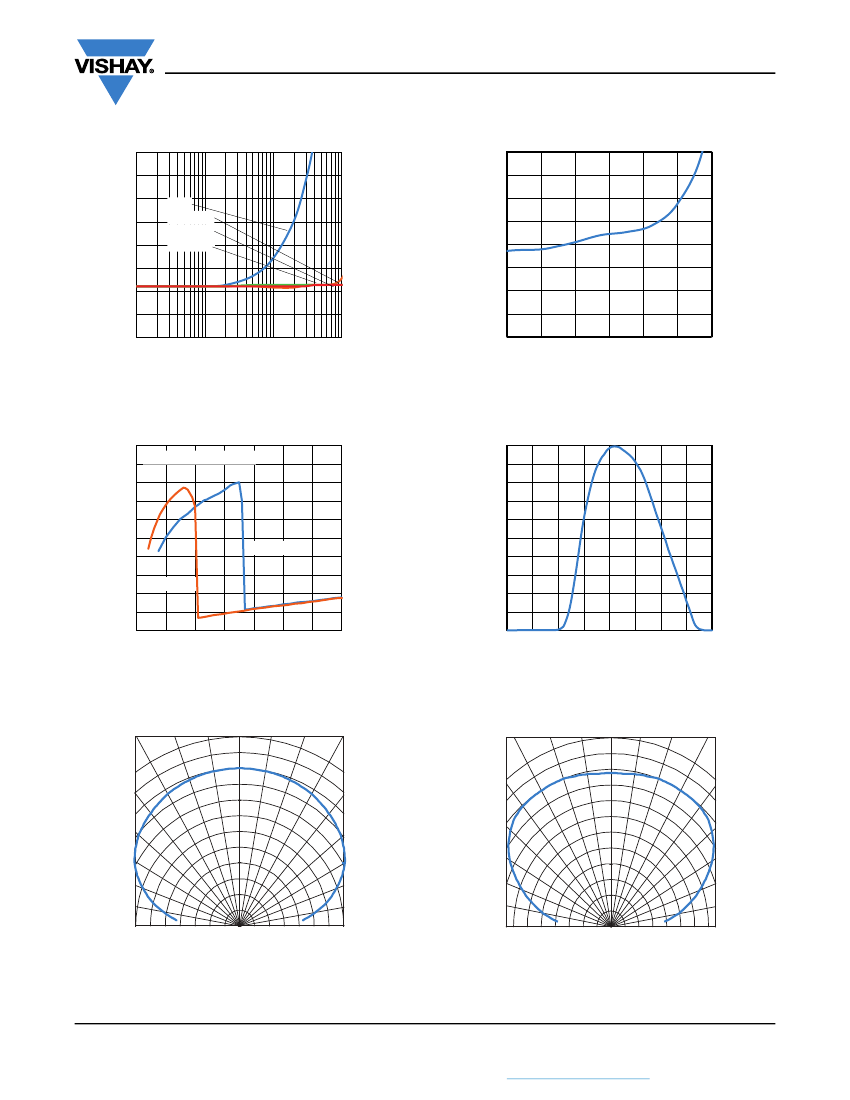

TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
Axis Title
Vishay Semiconductors
E
e
Optical Test
Signal
(IR diode TSAL6200, 30 pulses, f = f
0
, T = 10 ms)
2nd line
t
on
, t
off
- Output Pulse Width (ms)
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0.1
λ = 950 nm,
optical test signal, Fig. 3
t
off
t
on
10000
t
t
pi (1)
(1)
1000
1st line
2nd line
100
100
1000
10
10 000 100 000
10000
1000
1st line
2nd line
100
f = f
0
± 5 %
∆f (3 dB) = f
0
/10
T
AGC4: t
pi
≥ 10/f
0
, AGC2: t
pi
≥ 16/f
0
16110-10
V
O
V
OH
V
OL
Output
Signal
(2)
AGC4: 7/f
0
< t
d
< 13/f
0
AGC2: 11/f
0
< t
d
< 17/f
0
(3)
t
pi
- 4/f
0
< t
po
< t
pi
+ 4/f
0
t
po (3)
t
t
d (2)
1
10
E
e
- Irradiance (mW/m
2
)
Fig. 1 - Output Delay and Pulse-Width
Fig. 4 - Pulse-Width vs. Irradiance in Dark Ambient
Axis Title
1.0
0.9
2nd line
t
po
- Output Pulse Width (ms)
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0.1
10
1000
E
e
- Irradiance (mW/m
2
)
λ = 950 nm,
optical test signal, Fig. 1
Input burst length
Output pulse width
Axis Title
10000
2nd line
E
e min.
/E
e
- Relative Responsivity
1.2
1.0
0.8
0.6
0.4
0.2
0
0.7
0.9
1.1
1.3
f/f
0
- Relative Frequency
1000
1st line
2nd line
100
10
100 000
10
Fig. 2 - Pulse-Width vs. Irradiance in Dark Ambient
Fig. 5 - Frequency Dependence of Responsivity
E
e
Optical Test Signal
2nd line
E
e min.
- Threshold Irradiance (mW/m
2
)
Axis Title
4
Correlation with
ambient light sources:
10 W/m
2
= 1.4 klx
(std. ilum. A, T = 2855 K)
10 W/m
2
= 8.2 klx
(daylight, T = 5900 K)
10000
3
t = 60 ms
V
O
V
OH
V
OL
t
on
Fig. 3 - Test Signal
2
Wavelength of ambient
illumination: λ = 950 nm
Output Signal,
(see Fig. 4)
94 8134
100
1
t
off
t
0
0.01
10
0.1
1
10
100
E
e
- Ambient DC Irradiance (W/m
2
)
Fig. 6 - Sensitivity in Bright Ambient
Rev. 1.0, 02-Apr-2019
3
Document Number: 82864
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
1st line
2nd line
600 µs
600 µs
t
1000
TSOP952..W, TSOP954..W
www.vishay.com
Vishay Semiconductors
Axis Title
10000
Axis Title
0.8
2nd line
E
e min.
- Threshold Irradiance (mW/m
2
)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
1
10
100
10
1000
f = f
0
f = 30 kHz
f = 10 kHz
f = 100 Hz
0.40
2nd line
E
e min.
- Threshold Irradiance (mW/m
2
)
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0
-30
-10
10
30
50
70
90
T
amb
- Ambient Temperature (°C)
10000
1000
1st line
2nd line
1000
1st line
2nd line
100
10
100
∆V
S RMS
- AC Voltage on DC Supply Voltage (mV)
Fig. 7 - Sensitivity vs. Supply Voltage Disturbances
Fig. 9 - Sensitivity vs. Ambient Temperature
Axis Title
1.0
0.9
2nd line
Maximum Envelope Duty Cycle
0.8
0.7
0.6
0.5
TSOP952..W
f = 38 kHz, E
e
= 2 mW/m
2
Axis Title
10000
2nd line
S(λ)
rel.
- Relative Spectral Sensitivity
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
750
850
950
1050
λ - Wavelength (nm)
10
1150
100
1000
1st line
2nd line
10000
1000
1st line
2nd line
100
TSOP954..W
0.4
0.3
0.2
0.1
0
0
20
40
60
80
100
120
140
Burst Length (Number of Cycles/Burst)
10
Fig. 8 - Max. Envelope Duty Cycle vs. Burst Length
Fig. 10 - Relative Spectral Sensitivity vs. Wavelength
0°
10°
20°
30°
0°
10°
20°
30°
d
rel
- Relative Transmission Distance
d
rel
- Relative Transmission Distance
40°
1.0
50°
0.9
0.8
60°
70°
0.7
0.6
0.4
0.2
0
80°
40°
1.0
0.9
0.8
50°
60°
70°
80°
0.6
0.4
0.2
0
0.7
21581
21580
Fig. 11 - Horizontal and Vertical Directivity
Rev. 1.0, 02-Apr-2019
4
Document Number: 82864
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TSOP952..W, TSOP954..W
www.vishay.com
Vishay Semiconductors
Axis Title
0.50
2nd line
E
e min.
- Threshold Irradiance (mW/m
2
)
0.45
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0
1
2
V
S
- Supply Voltage (V)
3
10
100
1000
1st line
2nd line
10000
Fig. 12 - Sensitivity vs. Supply Voltage
Rev. 1.0, 02-Apr-2019
5
Document Number: 82864
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
