254G3-2L62 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 254G3-2L62

Preview

254G3-2L62: DescriptionBoard Connector, 62 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size47KB，3 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

254G3-2L62 Overview

Board Connector, 62 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

254G3-2L62 Parametric

Parameter Name	Attribute value
Maker	South Sea Terminal Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	0.64MM SQ PIN, L=6MM
body width	0.2 inch
subject depth	0.283 inch
body length	3.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	254G3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	62
Base Number Matches	1

Preview

Download Datasheet

View All

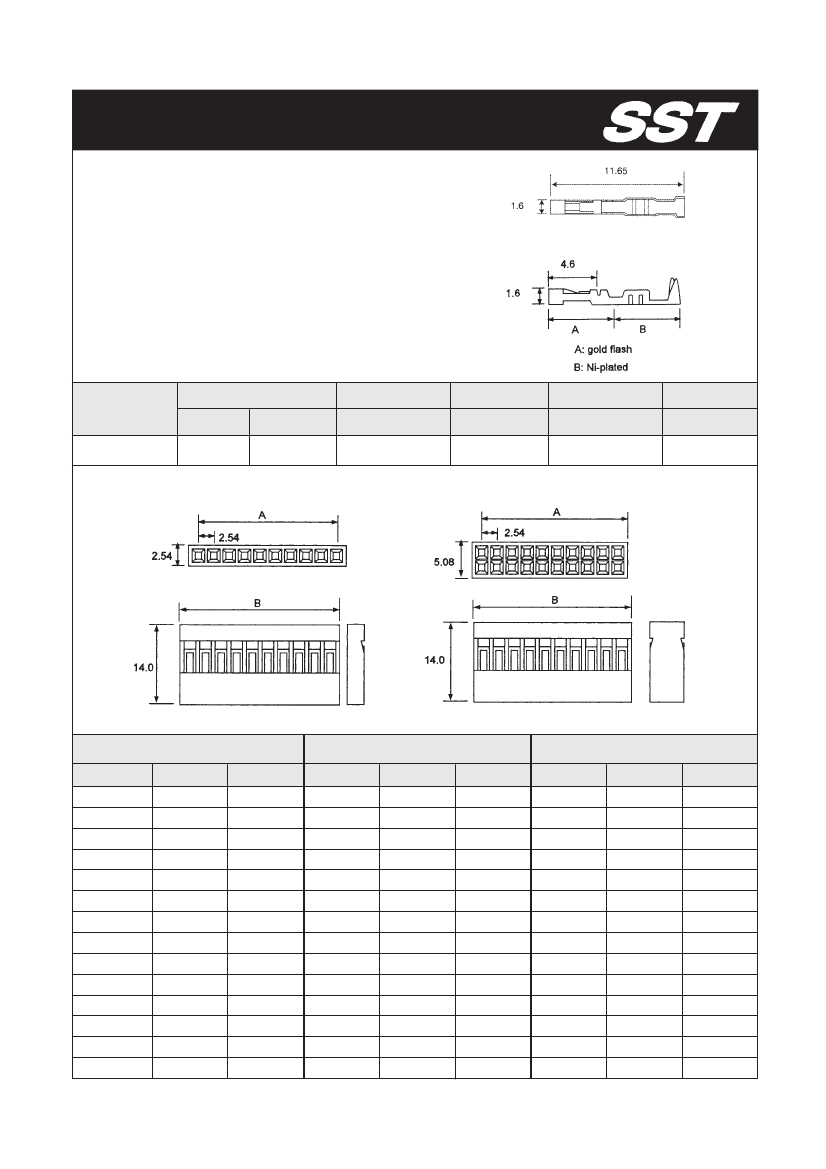

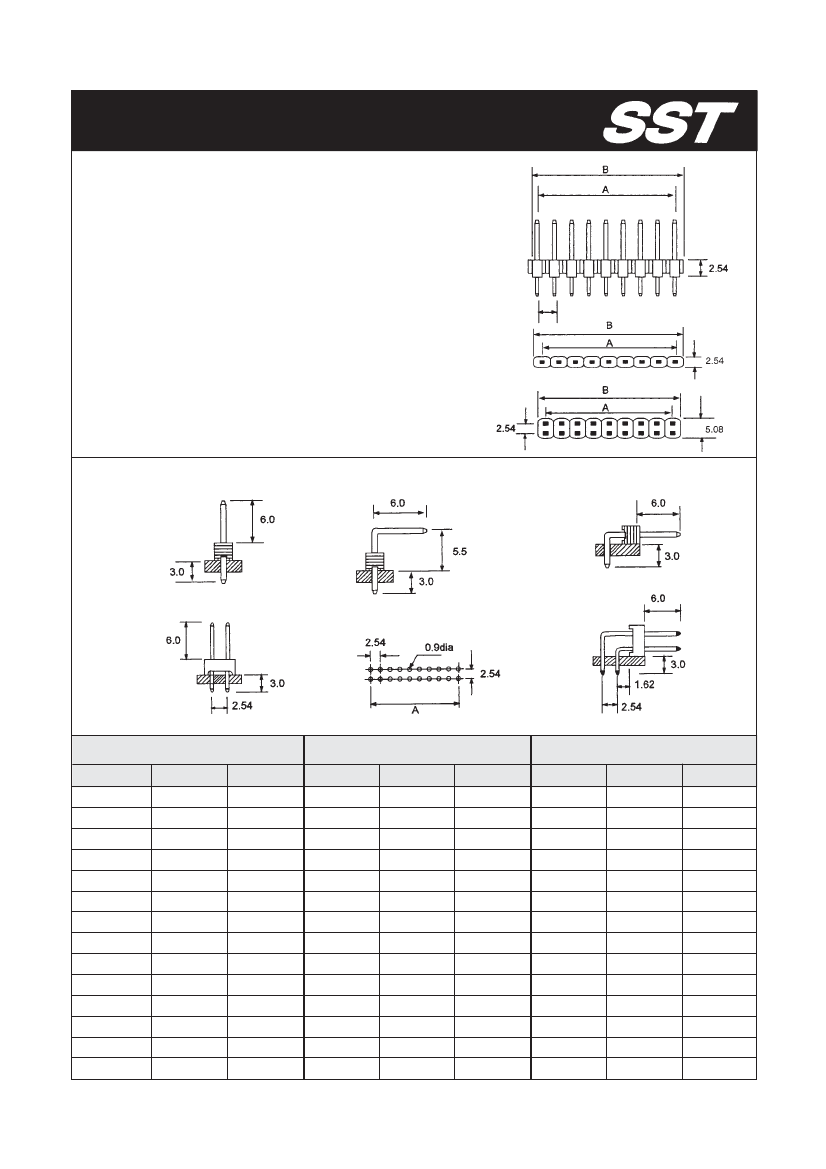

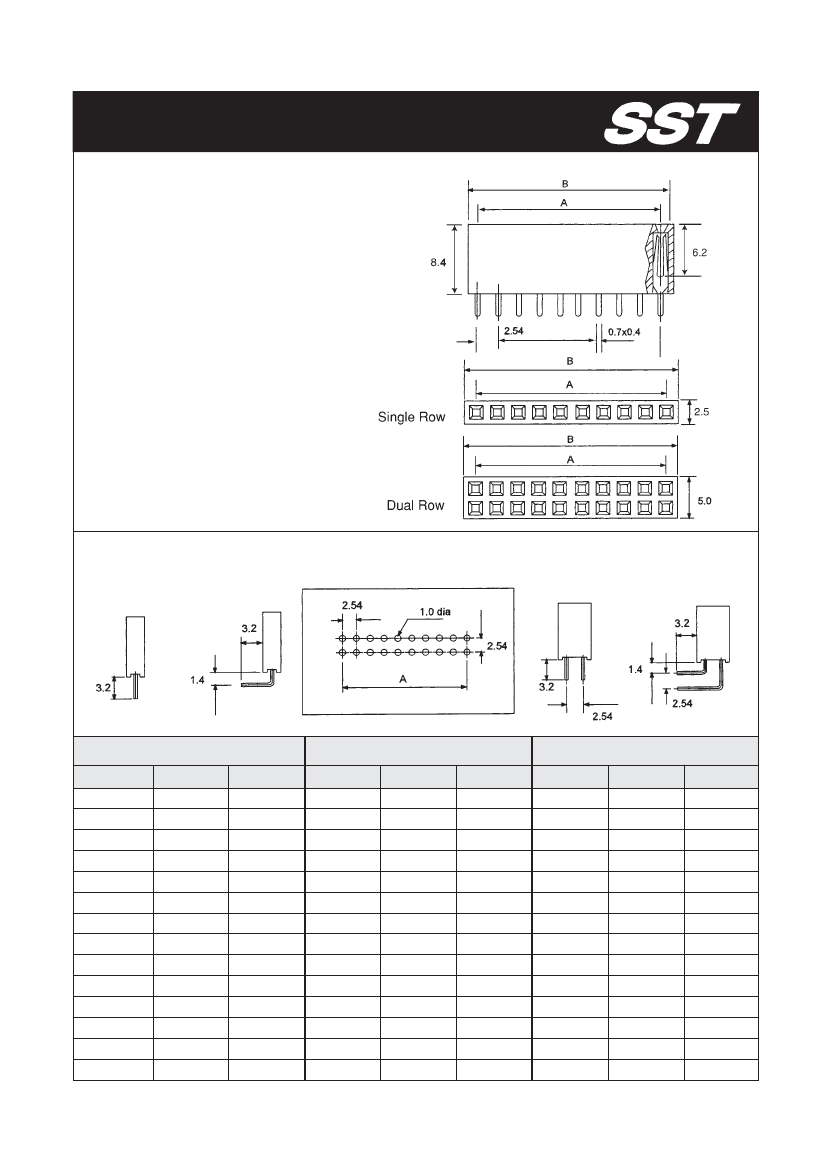

254G3 CONNECTOR SYSTEM

.10” (2.54mm) pitch wire(board)-to-board

254G3-(1,2)H SERIES HOUSING

MATERIAL : PBT+30% GF UL 94V-0

ACCPT 254G3-T TERMINAL

MATE WITH 254G3 SERIES PIN HEADER

CURRENT RATING : 2.5A AC,DC

VOLTAGE RATING : 250V AC,DC

CONTACT RESISTANCE : 30m MAX

INSULATION RESISTANCE : 1000M MIN

WITHSTANDING VOLTAGE : 1500V AC/MINUTE

TEMPERATURE RANGE : -25ºC TO +85ºC

WIRE RANGE

PART NO.

AWG#

254G3-GT

22-28

mm

2

0.33-0.08

MATERIAL/

FINISH

BRASS/GOLD

THICKNESS

mm

0.20

INSULATION

O.D.(mm)

1.7-0.9

REEL

PCS

10000

254G3-1H (1xN)

254G3-2H (2xN)

DIMENSIONS INFORMATION(mm)

POLES

1(2)

2(4)

3(6)

4(8)

5(10)

6(12)

7(14)

8(16)

9(18)

10(20)

11(22)

12(24)

13(26)

14(28)

2.54

5.08

7.62

10.16

12.70

15.24

17.18

20.32

22.86

25.40

27.94

30.48

33.02

A

B

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

DIMENSIONS INFORMATION(mm)

POLES

15(30)

16(32)

17(34)

18(36)

19(38)

20(40)

21(42)

22(44)

23(46)

24(48)

25(50)

26(52)

27(54)

28(56)

A

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

B

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.72

DIMENSIONS INFORMATION(mm)

POLES

29(58)

30(60)

31(62)

32(64)

33(66)

34(68)

35(70)

36(72)

37(74)

38(76)

39(78)

40(80)

A

71.72

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

B

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

101.60
