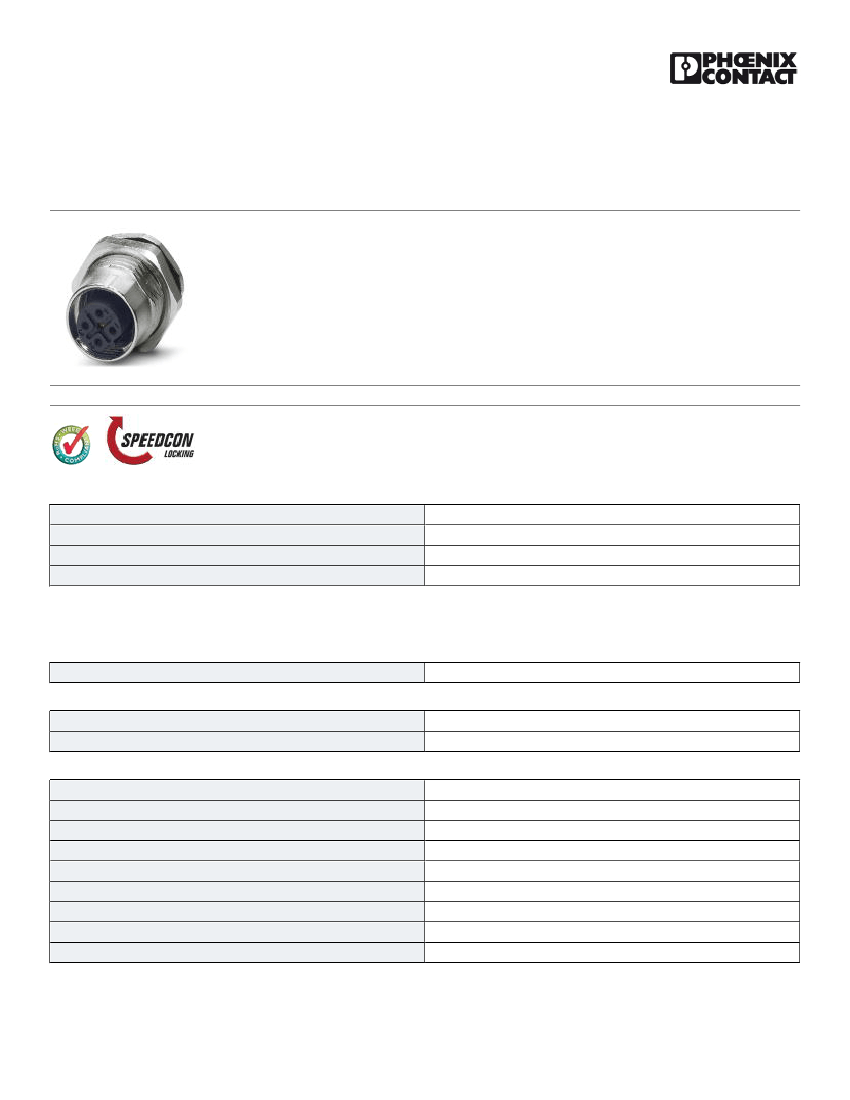

Panel feed-through - SACC-DSI-M12FSB-5CON-M16 SH - 1441914
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/actuator flush-type socket, 5-pos. with shield contact, M12 SPEEDCON, B-coded, rear/screw mounting
with M16 thread, with straight solder connection
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
11
20 1
85366990
Germany
Key commercial data
Technical data
Dimensions
Length of the solder pin
6 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Contact resistance
Insulation resistance
Coding
Standards/regulations
Status display
Surge voltage category
4A
60 V
5
≤ 3 mΩ
≥ 100 MΩ
B - inverse
M12 connector IEC 61076-2-101
No
II
01.11.2013 Page 1 / 4
https://www.phoenixcontact.com/us/products/1441914
Panel feed-through - SACC-DSI-M12FSB-5CON-M16 SH - 1441914
Technical data
General
Pollution degree
Connection method
Mounting type
3
Solder pins
Rear mounting M16 x 1.5 With flat nut
Material
Inflammability class according to UL 94
Contact material
Contact surface material
Contact carrier material
Material, knurls
Sealing material
V0
CuZn
Au
PA 66
Zinc die-cast, nickel-plated
NBR
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140815
27140815
27143423
27143423
27279220
27440103
27440103
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001297
EC002061
EC002061
EC002061
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
39121413
Approvals
Approvals
01.11.2013 Page 2 / 4
https://www.phoenixcontact.com/us/products/1441914
Panel feed-through - SACC-DSI-M12FSB-5CON-M16 SH - 1441914
Approvals
Approvals
UL Recognized / GOST / GOST
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26-20
4A
60 V
GOST
GOST
Drawings
01.11.2013 Page 3 / 4
https://www.phoenixcontact.com/us/products/1441914
Panel feed-through - SACC-DSI-M12FSB-5CON-M16 SH - 1441914

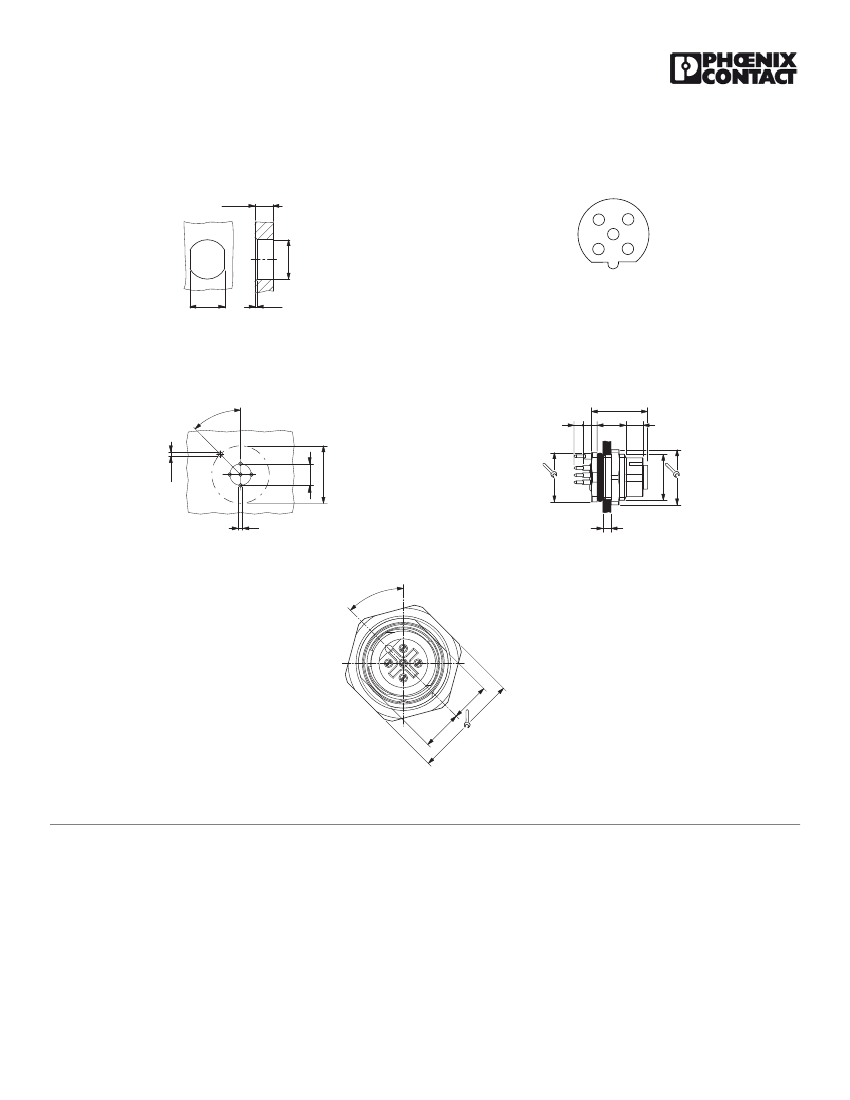

Dimensioned drawing
max.4,5
Schematic diagram
3
4
5
Ø16,1
2
1
13,5
+0,1
1x45°
Pin assignment M12 socket, 5-pos., B-coded, female side
Housing cutout for M16 fastening thread, mounting panel with feed-
through hole (alternatively with surface as protection against rotation)
Drilling diagram
45°
Dimensioned drawing
19,5
3 32
10
6
Ø1,2*
M16x1,5
max. 4,5
Ø14,6
Ø5
Ø1,2
Dimensioned drawing
45°
8
M12 front view
