HR22-12TJD-20P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HR22-12TJD-20P

HR22-12TJD-20P: Descriptionconn jack 20pos male solder; CategoryThe connector The connector; File Size929KB，8 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

HR22-12TJD-20P Overview

conn jack 20pos male solder

HR22-12TJD-20P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH DENSITY
Back shell type	SOLID
Body/casing type	JACK
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HR22
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ZINC ALLOY AND BRASS
Housing size	12
Termination type	SOLDER
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

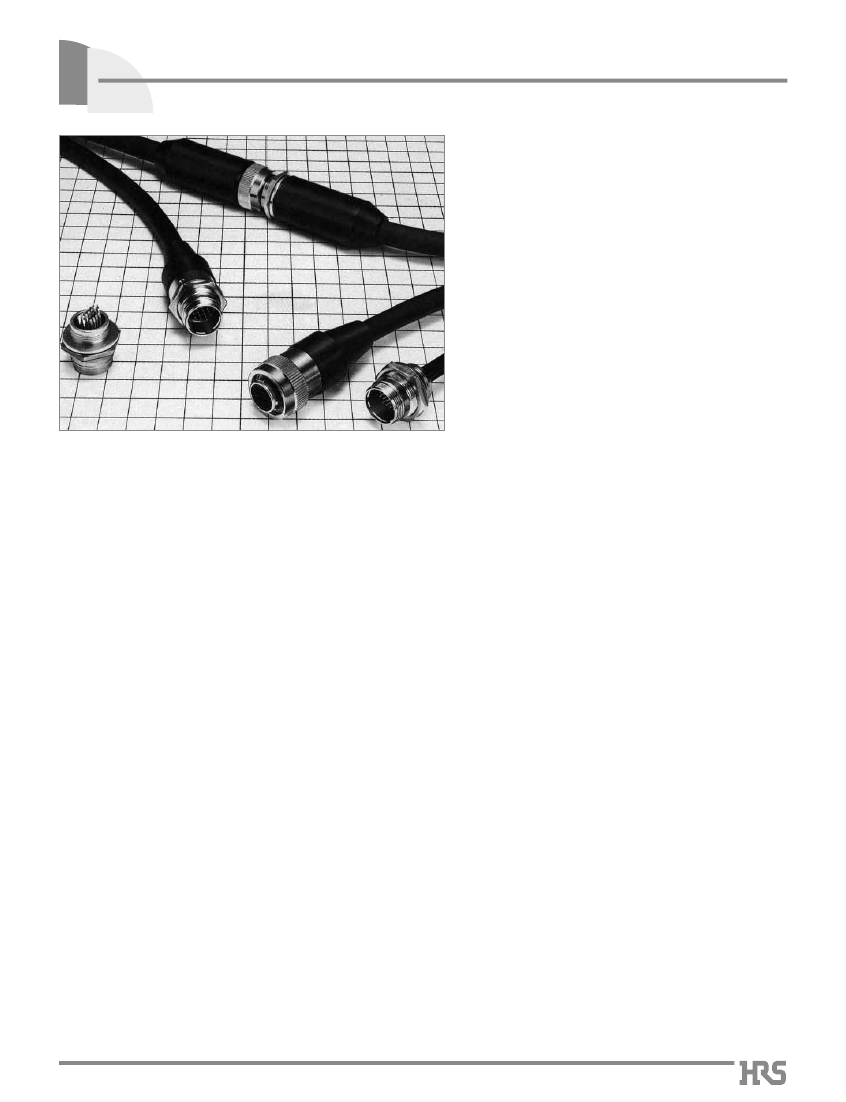

High-Performance Compact Circular Connectors

HR22 Series

■Overview

The HR22 Series are 20-pin compact circular

connectors developed as an interface between

machine tool motors and operation panels, with a

screw coupling type locking machanism to prevent

unlocking due to motor vibration, and are available

in either waterproof or non-waterproof types.

■Features

1. Availavle in waterproof and non-waterproof types.

Engaged waterproof type connectors are free from water penetration for 48 hours at a depth of 1.8 meters.

2. Anti-loosening locking mechanism.

The locking mechanism has an anti-loosening spring in a screw coupling.

3. Two types of termination

Available in two wiring styles for wider selection:Crimp type and soldering.

4. Easy receptacle mounting

A receptacle may be mounted quickly on a panel by tightening a nut.

5. Available with wire protection

This type of connector has a shell with a cordbushing for increased cable curvature and protection against wire breakage

when bending the wire.

6. High-density design

The maximum plug dia. is 21mm for higher density of a 20-pin type connector.

2011.5
