EMI/RFI Y1-DP
Vishay BCcomponents
Ceramic Disc Capacitors
Safety, Class X1/Y1 440/250V (AC) Series DP
FEATURES
•
Complying with “EN 132 400” and “IEC 60384-14,
2nd edition, including amendment 1.1995”
•
High reliability
•
Kinked (preferred) or straight leads.
•
Lead (Pb)-free available.
SH
D
T
APPLICATIONS
•
Across-the-line
•
Line by-pass
•
Antenna coupling.
L
F
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm or 0.8 mm.
The capacitors may be supplied with vertical kinked or
straight leads having a lead spacing of 10.0 mm or 12.5 mm
and a lead length from 4 to 30 mm. The standard tolerance
on capacitance is
±10%
for Y5P material and
±20%
for Y5U
material. Encapsulation is made of flammable resistant
epoxy resin in accordance with
“UL94V-0”.
∅d
Capacitors with 10 mm lead spacing.
CAPACITANCE RANGE:
at 1kHz, 1V (RMS); 100 to 4700pF
TOLERANCE ON CAPACITANCE:
±10%; ±20%
RATED VOLTAGE U
R
:
(X1): 440V (AC), 50Hz (IEC 60384-14.2)
(Y1): 250V (AC), 50Hz (IEC 60384-14.2)
DISSIPATION FACTOR:
at 1kHz; 1V (RMS); 2.5% max
TEMPERATURE COEFFICIENTS:
Y5P; Y5U
DIELECTRIC STRENGTH BETWEEN LEADS:
Component Test:
4000V (AC), 50Hz, 2 seconds
As repeated test admissible only once with:
3600V (AC), 50Hz, 2 seconds
Random sampling test (destructive test):
4000V (AC), 50Hz, 60 seconds
APPROVALS:
ENEC, UL, CSA
CLIMATIC CATEGORY:
25/125/56 or 25/85/21
OPERATING TEMPERATURE RANGE:
-30 to +125°C
DIELECTRIC STRENGTH OF BODY INSULATION:
4000V (AC), 50Hz, 60 seconds (destructive test)
MARKING
Marking indicates capacitance value and tolerance in
accordance with
“EIA 198”.
INSULATION RESISTANCE AT 500V (DC):
≥10000
MΩ
The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient
temperature of 25 ± 3°C, at normal atmospheric conditions
www.vishay.com
64
For technical questions contact: CDC@vishay.com
Document Number: 28517
Revision: 23-Feb-05
EMI/RFI Y1-DP
Ceramic Disc Capacitors
Vishay BCcomponents
Sarfety, Class X1/Y1 440/250V (AC)
Series DP
ORDERING INFORMATION, X1 440V (AC); Y1 250V (AC)
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD
SPACING
F
(mm)
SH
(2)
(mm)
13
th
DIGIT:
T = REEL; U = AMMO;
3 = BULK
(3)
16
th
DIGIT:
R = RoHS COMPLIANT
PACKAGING CODE
8
th
AND 9
th
DIGIT
REEL
AMMO
BULK
CATALOG
NUMBER
(4)
3
rd
DIGIT:
5 = STANDARD,
8 = RoHS
COMPLIANT
KINKED
Y5P
100
S101K33Y5PQ6.V0.
22.2 811 ..016
150
S151K33Y5PQ6.V0.
22.2 811 ..116
8.5
220
S221K33Y5PQ6.V0.
22.2 811 ..216
±10
10.0
4.0
70
71
72
330
S331K33Y5PQ6.V0.
22.2 811 ..316
470
S471K33Y5PQ6.V0.
22.2 811 ..416
680
10.0
S681K39Y5PQ6.V0.
22.2 811 ..616
Y5U
680
S681M33Y5UQ6.V0.
22.2 811 ..617
8.5
1000
S102M33Y5UQ6.V0.
22.2 811 ..027
1500
10.0
S152M39Y5UQ6.V0.
22.2 811 ..127
70
71
72
±20
10.0
4.0
2200
11.0
S222M43Y5UQ6.V0.
22.2 811 ..227
3300
13.5
S332M53Y5UQ6.V0.
22.2 811 ..327
3900
15.0
S392M59Y5UQ6.V0.
22.2 811 ..377
4700
16.0
S472M63Y5UQ83V0.
−
−
73
22.2 811 ..427
Notes
1. Maximum thickness 6.0 mm.
2. SH = seated height.
3. Straight leads are available on request.
4. 3
rd
digit to complete RoHS catalog number. 8
th
and 9
th
digit of the catalog number to be completed with the packaging code.
PACKAGING
D
max
(mm)
8.5 (0.33")
10.0 (0.39")
11.0 (0.43")
12.0 (0.47")
13.5 (0.53")
15.0 (0.59")
16.0 (0.30")
SIZE CODE
33
39
43
47
53
59
63
PACKAGING QUANTITIES
BULK
1000
500
500
-
-
750
REEL
AMMO
Note
1. The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack.
P
D
∆p
P
2
∆p
T
∆h
∆h
F
∅d
L
W
1
W
0
W
A
e
P
0
P
1
F
D
0
t
t
1
W
2
H
0
H
1
detail A
Straight leaded capacitors on tape, lead spacing 10 mm (0.375”).
Document Number: 28517
Revision: 23-Feb-05
For technical questions contact: CDC@vishay.com
www.vishay.com
65
EMI/RFI Y1-DP
Vishay BCcomponents
DIMENSIONS OF TAPE
SYMBOL
D
d
P
P
0
∆P
P
1
P
2
F
∆h
∆s
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
t
1
PARAMETER
NOMINAL
body diameter
lead diameter
pitch between capacitors
feed-hole pitch
plane deviation
feed-hole centre to lead centre
feed-hole centre to component centre
lead spacing
component alignment
deviation along tape, left or right
tape width
hold-down tape width
hole position
hold-down tape margin
height to seating plane
maximum component height
lead end protrusion
maximum length of snipped lead
feed-hole diameter
total tape thickness
maximum thickness of tape and wires
22.0 max.
0.6
25.4
12.7
1.0 max.
7.7
12.7
10.0
0
0
18.0
5.0 min.
9.0
3.0 max.
16.0
43.0
1.0 max.
11.0
4.0
0.9 max.
1.5 max.
DIMENSIONS
(mm)
TOLERANCE
-
±0.05
-
±0.3; note 1
-
±0.7; note 2
±1.5; note 2
+0.6
-0.4
±1.0
±1.0
+1.0
-0.5
-
+0.75
-0.5
-
±0.5
-
-
-
±0.2
−
−
Ceramic Disc Capacitors
Safety, Class X1/Y1 440/250V (AC)
Series DP
Notes
1. Cumulative pitch error:
±≤1
mm/20 pitches.
2. Obliquity maximum 3°.

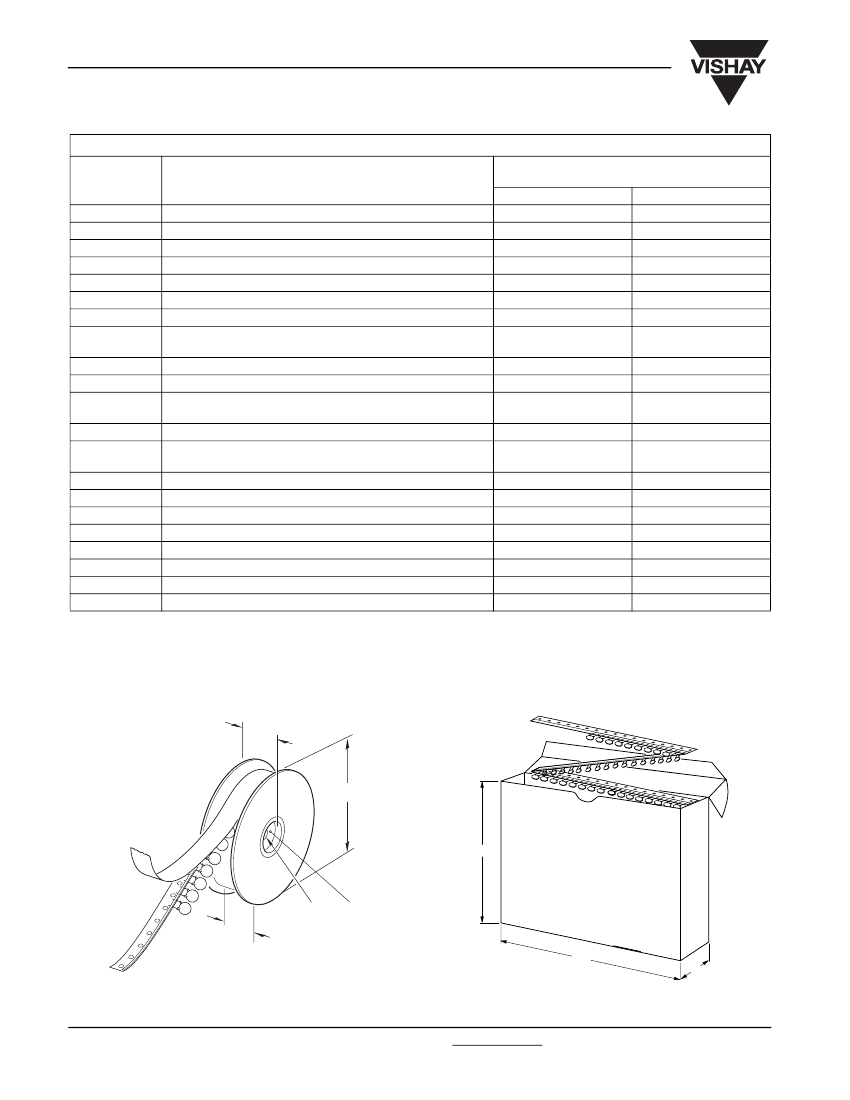

REEL AND TAPE DATA
in millimeters
51 max.
355.6
±2.0
330
28
±1.5
45 max.
8.0
JW162
360
55
Reel with capacitors on tape.
Ammopack with capacitors on tape.
www.vishay.com
66
For technical questions contact: CDC@vishay.com
Document Number: 28517
Revision: 23-Feb-05
PCB Design
