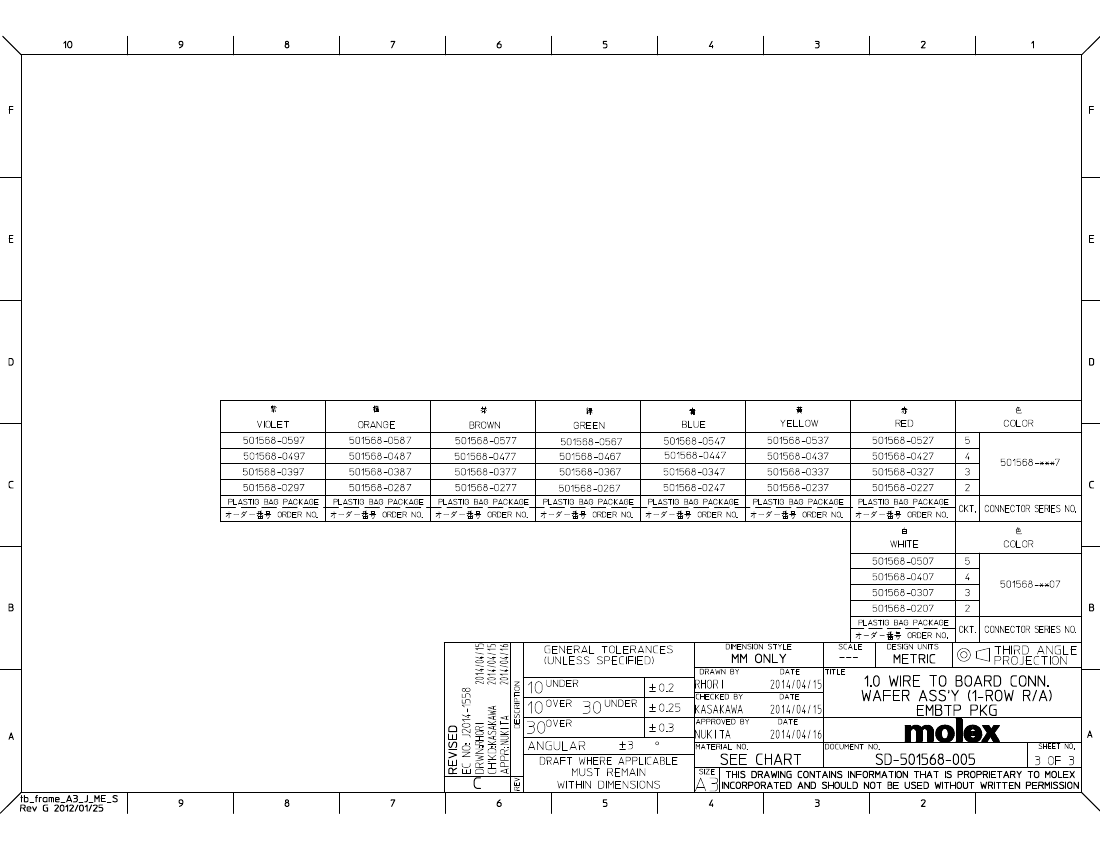

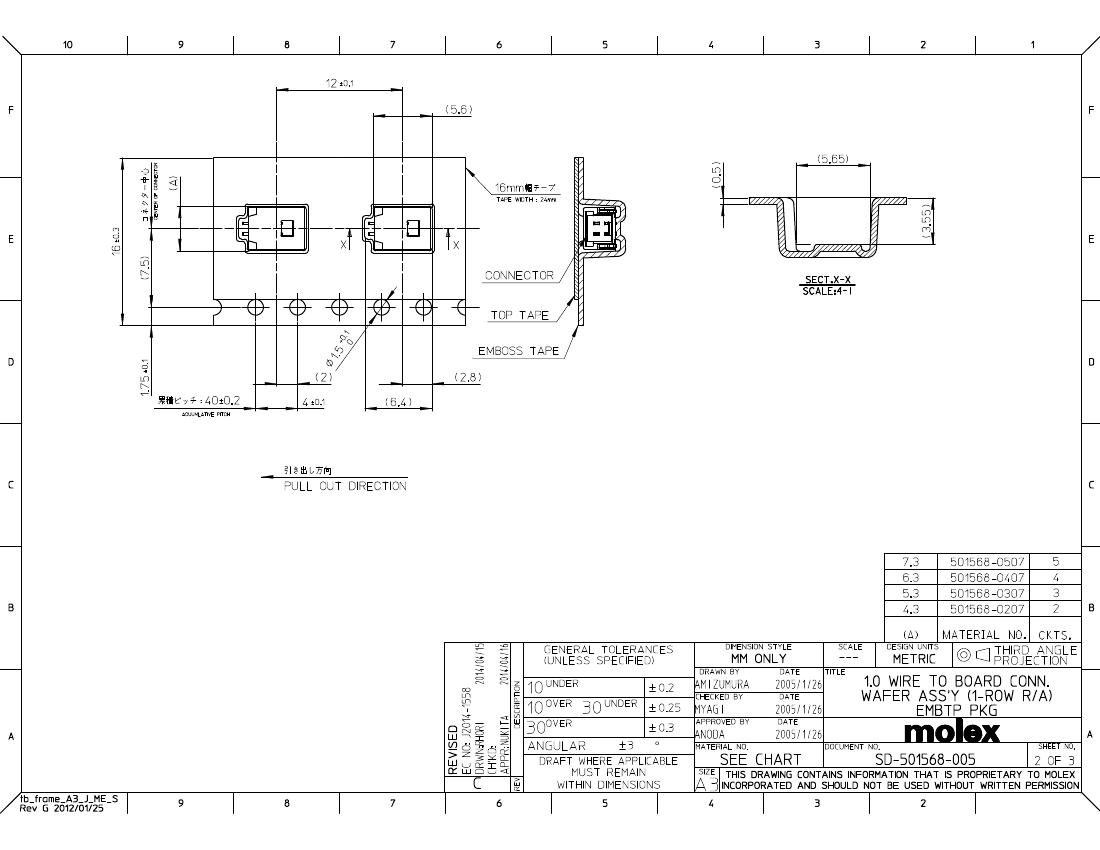

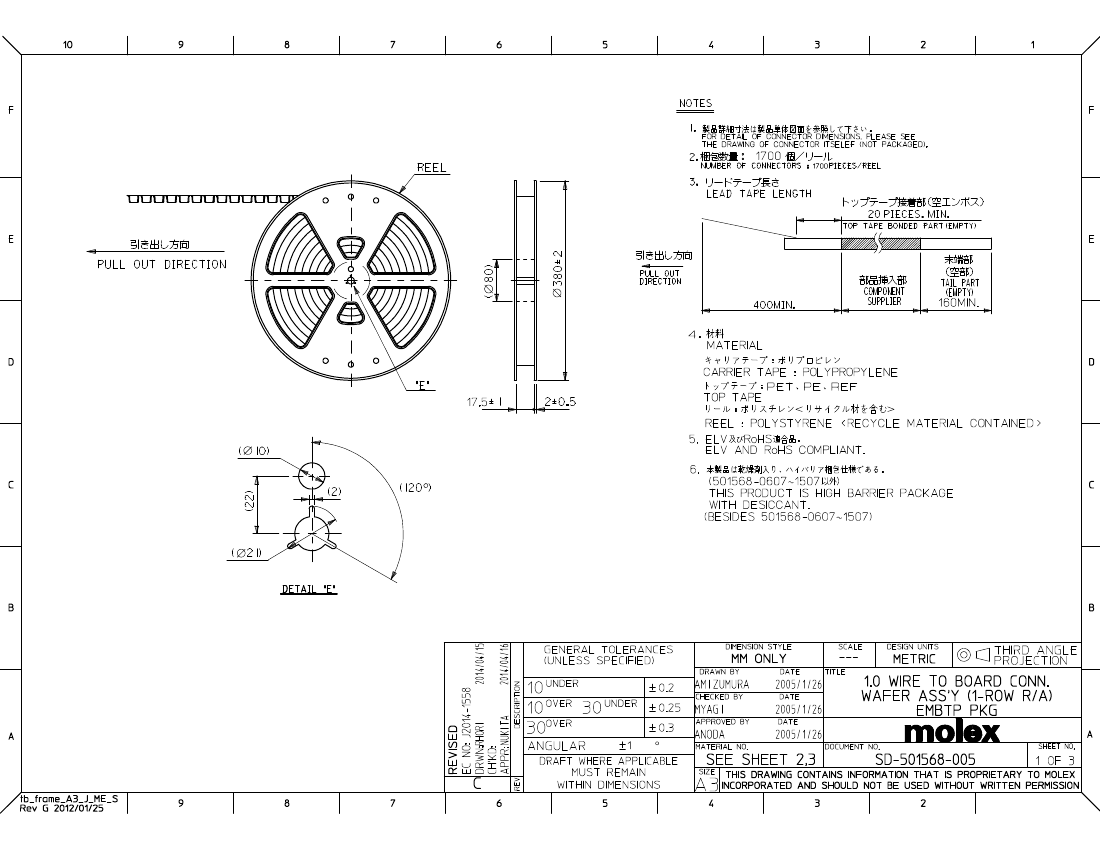

Preview

5015680507: Descriptionconn header 1mm 5pos smd R/A; CategoryThe connector The connector; File Size186KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

5015680507 Overview

conn header 1mm 5pos smd R/A

5015680507 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Other features	PICO-CLASP
body width	0.197 inch
subject depth	0.245 inch
body length	0.688 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

5015680507 Related Products

	5015680507	5015680207	5015680307	5015680407
Description	conn header 1mm 5pos smd R/A	conn header 1mm 2pos R/A smd	conn header 1mm 3pos smd R/A	conn header 1mm 4pos smd R/A
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compli
Other features	PICO-CLASP	PICO-CLASP	PICO-CLASP	PICO-CLASP
body width	0.197 inch	0.126 inch	0.126 inch	0.126 inch
subject depth	0.245 inch	0.232 inch	0.232 inch	0.232 inch
body length	0.688 inch	0.157 inch	0.197 inch	0.236 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN	TIN	NOT SPECIFIED	TIN
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	250VAC V	350VAC V	350VAC V	350VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	CABLE
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1
Number of rows loaded	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1 mm	1 mm	1 mm	0.9906 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	CRIMP
Total number of contacts	5	2	3	4
UL Flammability Code	94V-2	94V-2	94V-2	94V-0
Base Number Matches	1	1	1	1
Is it lead-free?	Lead free	Lead free	Lead free	-
package instruction	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT	ROHS AND REACH COMPLIANT	-
ECCN code	EAR99	EAR99	EAR99	-
Factory Lead Time	10 weeks	13 weeks	-	13 weeks
Installation option 2	FRICTION LOCK	FRICTION LOCK	-	FRICTION LOCK
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	-	39u inch	39u inch	39u inch
