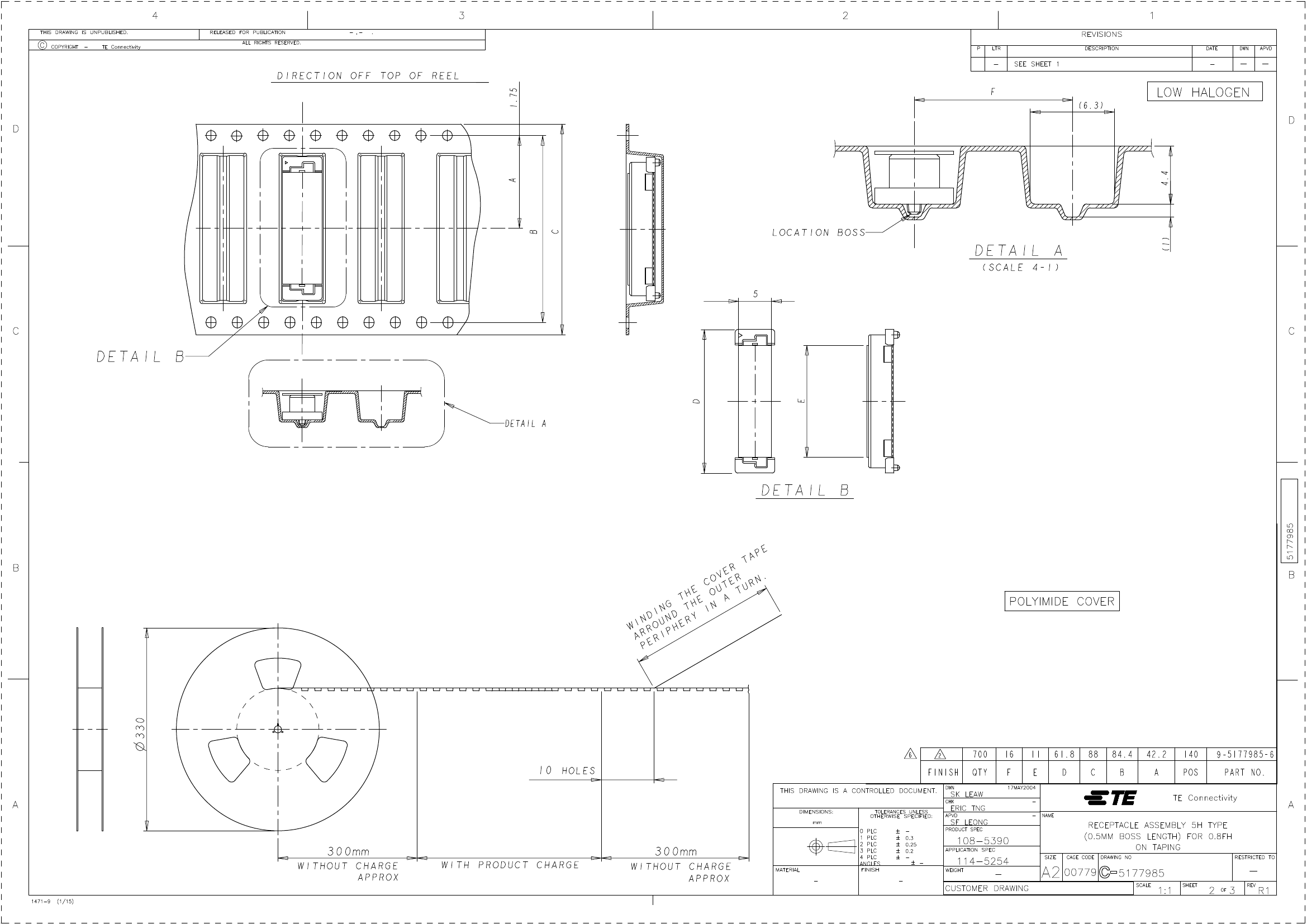

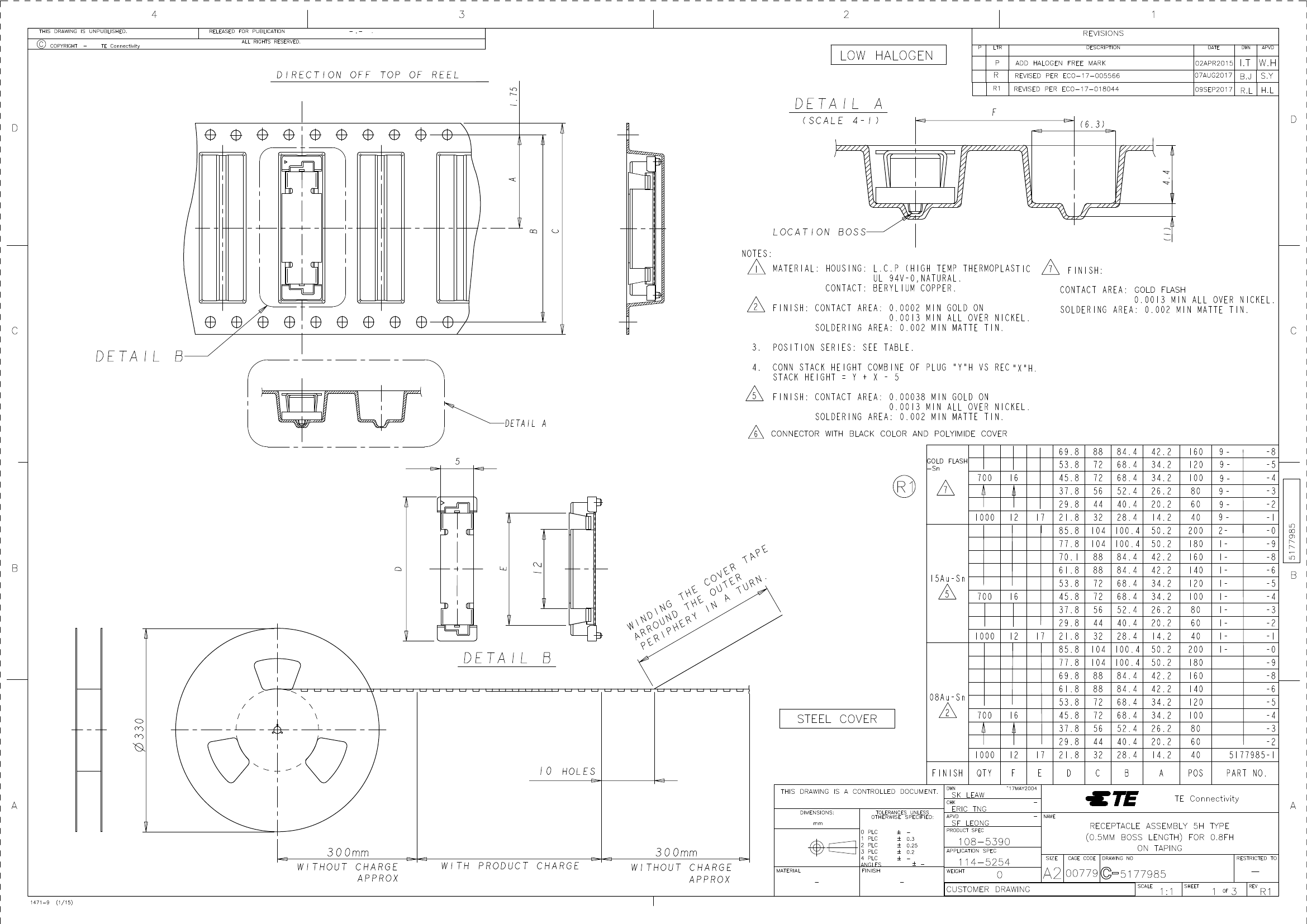

0.8FH,R05H.5,040,08/Sn,TR,SC

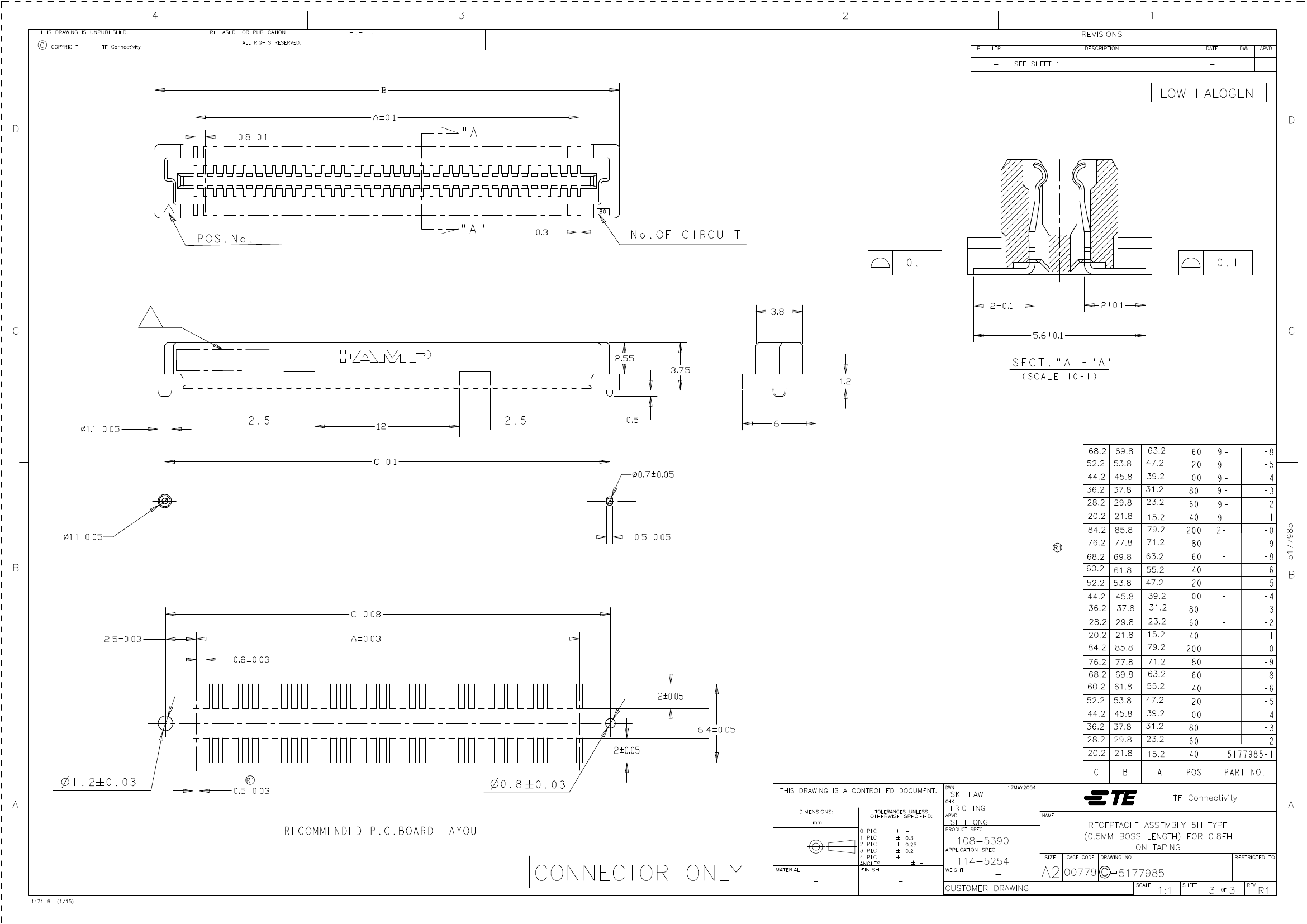

| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 10 weeks |
| Samacsys Confidence | 4 |
| Samacsys Status | Released |
| Samacsys PartID | 192576 |
| Samacsys Pin Count | 40 |
| Samacsys Part Category | Connector |
| Samacsys Package Category | Other |
| Samacsys Footprint Name | 5177985-1-2 |
| Samacsys Released Date | 2020-03-12 16:39:27 |
| Is Samacsys | N |
| Other features | ROHS COMPLIANT |
| Board mount options | LOCATING POSTS |
| body width | 0.236 inch |
| subject depth | 0.148 inch |
| body length | 0.858 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD (80) OVER NICKEL (51) |
| Contact completed and terminated | TIN (39) OVER NICKEL (51) |
| Contact point gender | FEMALE |
| Contact material | BERYLLIUM COPPER |
| contact mode | RECTANGULAR |
| Contact resistance | 30 mΩ |
| Contact style | CENTRONIC |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 100 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .8896 N |
| Insulation resistance | 500000000 Ω |
| Insulator color | NATURAL |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| MIL compliance | NO |
| Plug contact pitch | 0.031 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 4.3942 mm |
| Plating thickness | 8u inch |
| polarization key | ENDS |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.8 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 40 |
| Evacuation force-minimum value | .0973 N |
| Base Number Matches | 1 |
| 5177985-1 | 5177985-2 | DSC6051HA2B-016.0000B | RJMG1J42640019L | VT-803-GAJ-2061-20M4800000_SNPBDIP | |
|---|---|---|---|---|---|
| Description | 0.8FH,R05H.5,040,08/Sn,TR,SC | 0.8FH,R05H.5,060,08/Sn,TR,SC | CMOS Output Clock Oscillator, 16MHz Nom | Telecom and Datacom Connector, 8 Contact(s), Female and Female, Right Angle, Solder Terminal | CMOS Output Clock Oscillator, 20.48MHz Nom, SMD, 8 PIN |
| Reach Compliance Code | compliant | compliant | compliant | unknown | compliant |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT | AEC-Q100; STANDBY; ENABLE/DISABLE FUNCTION; TR | OTHER STACKING CONNECTORS: 8 CONTACTS, 2 PORTS, 4 POSITION EACH | ENABLE/DISABLE FUNCTION |
| Is it Rohs certified? | conform to | conform to | - | - | incompatible |
| Connector type | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | - | TELECOM AND DATACOM CONNECTOR | - |
| Contact point gender | FEMALE | FEMALE | - | FEMALE AND FEMALE | - |
| DIN compliance | NO | NO | - | NO | - |
| Filter function | NO | NO | - | YES | - |
| IEC compliance | NO | NO | - | NO | - |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | - | POLYETHYLENE POLYESTER | - |
| MIL compliance | NO | NO | - | NO | - |
| Mixed contacts | NO | NO | - | NO | - |
| Installation method | STRAIGHT | STRAIGHT | - | RIGHT ANGLE | - |
| Installation type | BOARD | BOARD | - | BOARD | - |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | - | 70 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | - | -20 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE | - |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | - | SOLDER | - |
| Total number of contacts | 40 | 60 | - | 8 | - |
| Objectid | - | - | 7271712021 | 1354298730 | 4005882574 |
