CRD SERIES - DUAL OUTPUT, 0.5 WATT
DESCRIPTION
CRD dual output DC/DC converters offer excellent
regulation and isolation in an industry standard DIP
package. Available in 5 or 12 Volt input versions, the
CRD is perfect for industrial and EDP applications.
The CRD features short circuit protection and 500
VDC isolation. Please see the CRS series for single
output applications.
FEATURES
• Industry Standard
Package
• Industry Standard
Pinout
• 85°C Case Operation
• Short Circuit
Protection

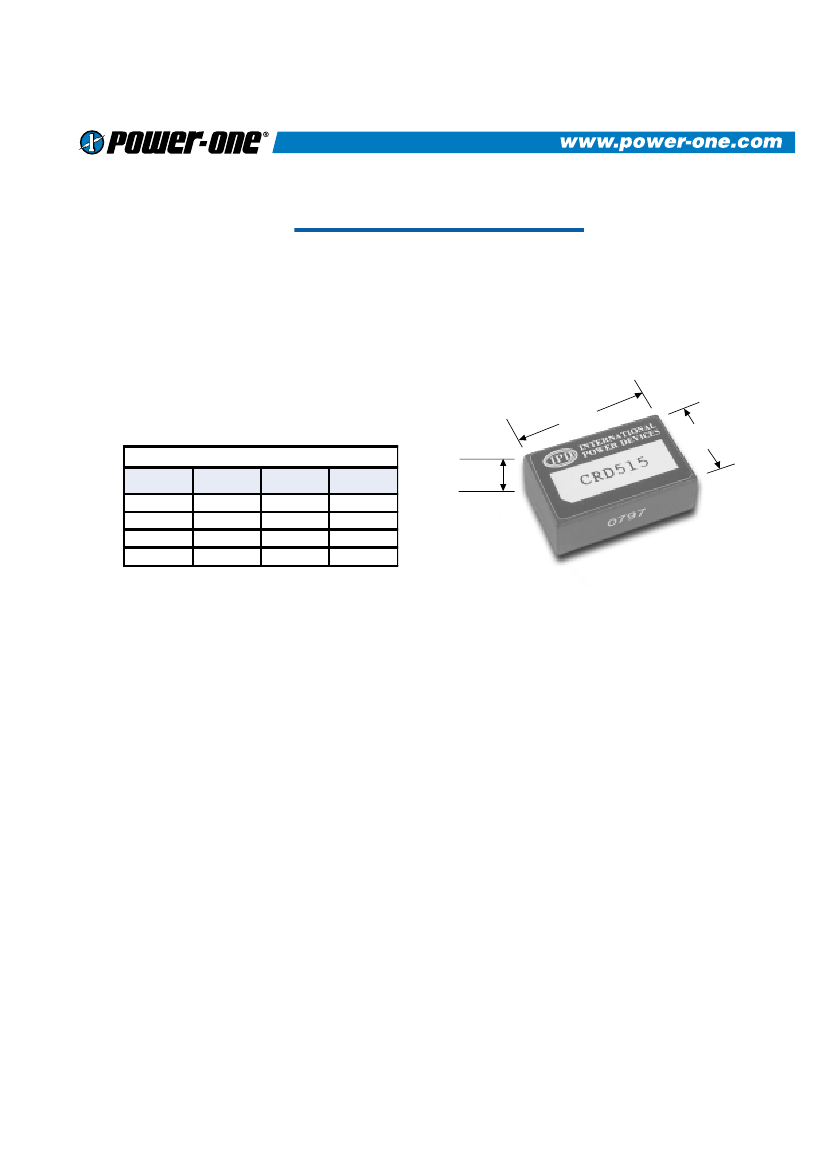

1.25”
(31.8mm)
•
•
•
•
5V and 12V Inputs
Input Pi Filter
Regulated Outputs
500V Isolation
0.80”
(20.3mm)
Selection Chart
Model
CRD512
CRD515
CRS1212
CRS1215
Input Range
VDC
4.65 - 5.5
4.65 - 5.5
10.90 - 13.2
10.90 - 13.2
Output VDC Output Current
±12
±15
±5
±12
0.040
0.033
0.040
0.033
0.40”
(10.2mm)
Note: For model options, see the last page of this file.
1
OPTIONS
When ordering equipment options, use the following suffix information. Select the option(s) that
you prefer and add them to the model number. Example ordering options are located below the
options table.
OPTION
Negative Logic
Lucent Compatible Trim
Terminal Strip
Trim
Enable
Trim and Enable
Current Share
Headerless
SUFFIX
N
T
TS
1
2
3
4
Y
APPLICABLE SERIES
HAS, HBD, HBS, HES, LES, QBS,
QES, TES, TQD
HAS, HBD, HBS, HES, QBS, QES
XWS, XWD, XWT
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
SMS
Encapsulated EWS, IWS, OWS
REMARKS
TTL “Low” Turns Module ON
TTL “High” Turns Module OFF
PIN LENGTH AND HEATSINK
OPTIONS
0.110” (2.8mm) Pin Length
0.150” (3.8mm) Pin Length
0.24” (6.1mm) Horizontal Heatsink
0.24” (6.1mm) Vertical Heatsink
0.45” (11.4mm) Horizontal
Heatsink
0.45” (11.4mm) Vertical Heatsink
0.95” (24.1mm) Horizontal
Heatsink
0.95” (24.1mm) Vertical Heatsink
8
9
1H
1V
2H
2V
3H
3V
All Units (Except SMS)
All Units (Except SMS)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
Standard Pin Length is 0.180”
(4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent compatible trim, and
0.95” vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110” pin length.
